Case Fractal Design Era ITX gold Mini Tower

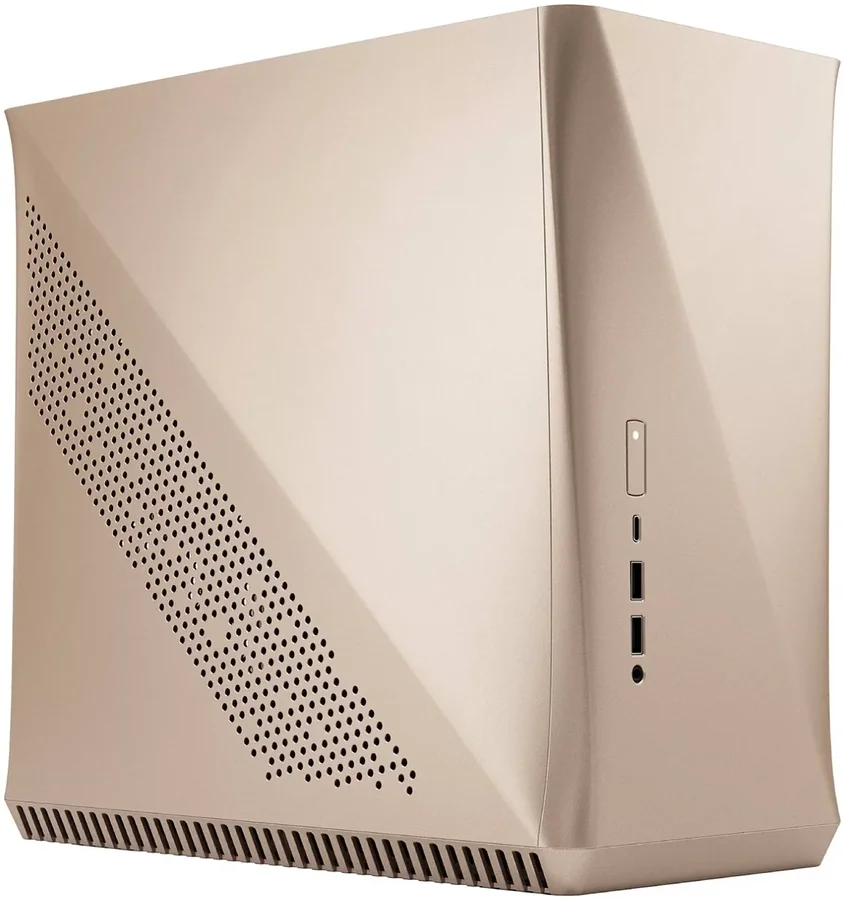

Fractal Design Era ITX Gold Mini-ITX Case

The Fractal Design Era ITX is a small form factor case for building a compact yet powerful Mini-ITX PC in just 16 liters. The exterior is aluminum in a gold finish, and this version has a color-coordinated tempered glass top insert. A black steel mesh top insert is also included for extra airflow.

Despite its size, it supports dual-slot graphics cards up to 295 mm long, a 240mm radiator at the top and ATX, SFX-L or SFX power supplies thanks to adjustable brackets. An 80mm SSR3 fan comes pre-installed at the rear, and the front panel has a USB 3.1 Gen 2 Type-C port, two USB 3.0 ports and a combined audio jack.

Key features

• Compact aluminum exterior - A uniquely designed aluminum shell and side panels in gold, measuring just 325 x 166 x 310 mm, suit a desk or a living room.
• Two swappable top panels - A color-coordinated tempered glass top insert and a black steel mesh insert are both included. The magnetic top panel and tool-less latching side panels make maintenance easy.
• ATX or SFX power supply - Adjustable brackets let you set the PSU mounting height, with support for ATX, SFX-L and SFX units up to 200 mm long, to make the best use of the interior.
• Chimney-style cooling - Five fan positions: two 120mm at the top, one 80mm at the rear with an included SSR3 fan, and two 140mm at the bottom when no dual-slot GPU is installed. The removable radiator bracket takes a 240mm or dual 120mm radiators.
• Large GPU support - Dual-slot graphics cards up to 295 mm long and CPU coolers up to 120 mm tall. With a low-mounted PSU, GPU length is limited to 210 or 190 mm.
• Flexible storage and dust filters - Two included storage brackets each hold one 3.5-inch HDD or two 2.5-inch SSDs. Easy-to-clean nylon filters cover the bottom, sides and top.

Specifications

In the box

• Fractal Design Era ITX case
• Tempered glass top insert
• Black mesh top insert
• Top insert accessory box
• Screw accessory box
• User manual
