Case Fan Zalman ZM-AF120 120mm black

Zalman ZM-AF120 120mm Case Fan Black

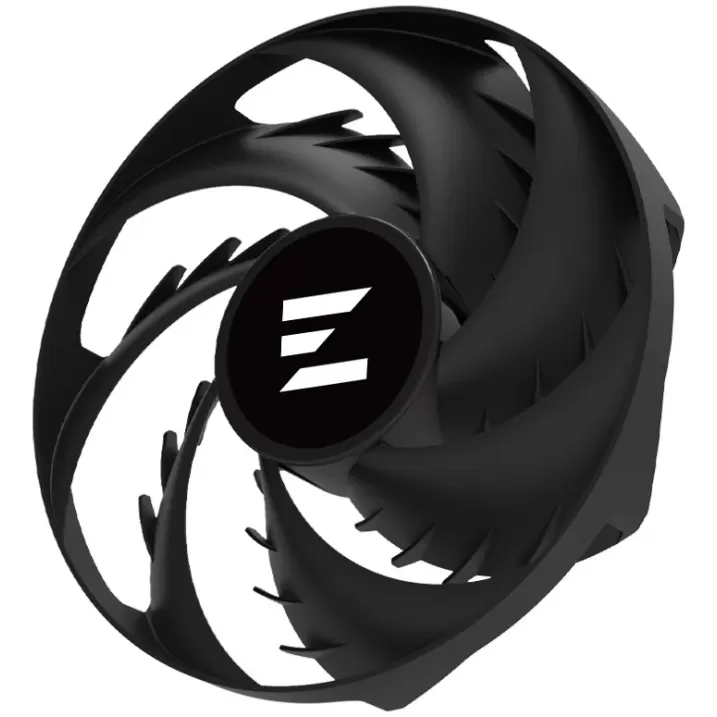

The Zalman ZM-AF120 BLACK is a 120 mm case fan with an annular design, where an outer ring joins the blade tips. This prevents vortex and backflow at the blade ends, reduces vibration and improves airflow efficiency.

The fan runs under PWM control from 600 to 2000 RPM, delivering up to 69.12 CFM of airflow and up to 2.01 mmH2O of static pressure at a maximum of 29.7 dB(A). A hydro bearing and eight anti-vibration rubber pads support quiet operation and a 40,000-hour life span.

Key features

• Annular design - An outer ring on the blade tips prevents vortex and backflow, reduces vibration and wind noise, and improves airflow.
• Shark Fin blades - Zalman's shark fin blade shape gives low resistance to airflow and helps keep noise down.
• Hydro bearing - A lubricant layer separates the metal parts, so the bearing runs quietly, stays cool, resists shock and lasts up to 40,000 hours.

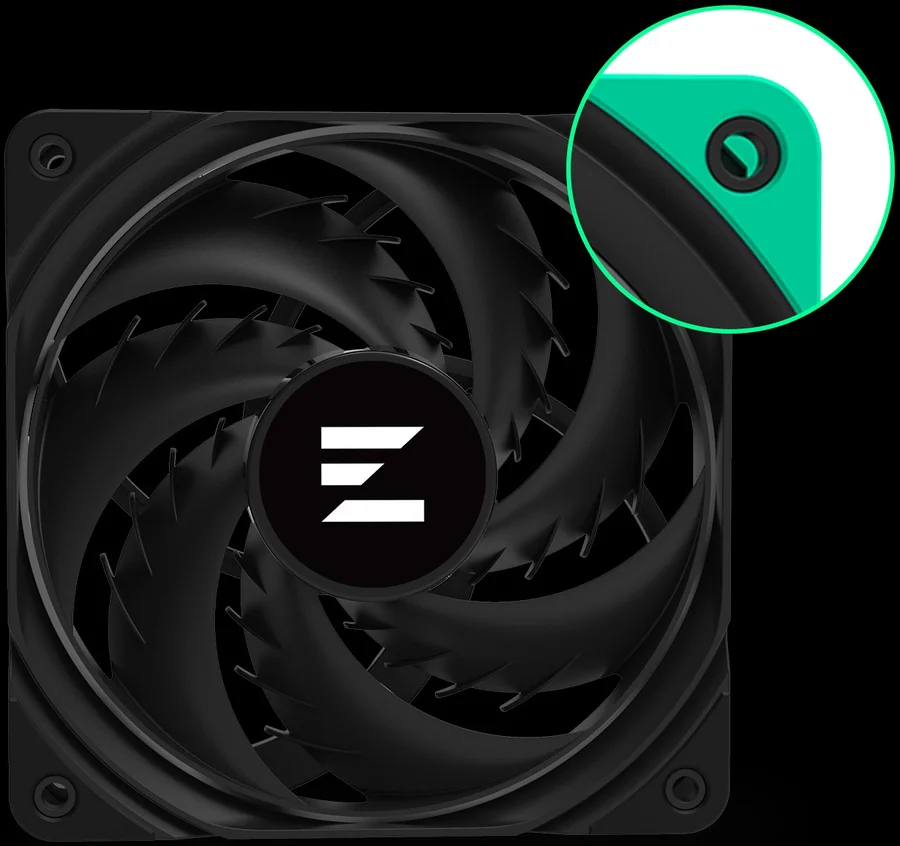

• Anti-vibration pads - Eight pre-installed rubber pads on the front and rear of the frame reduce vibration transferred to the case.

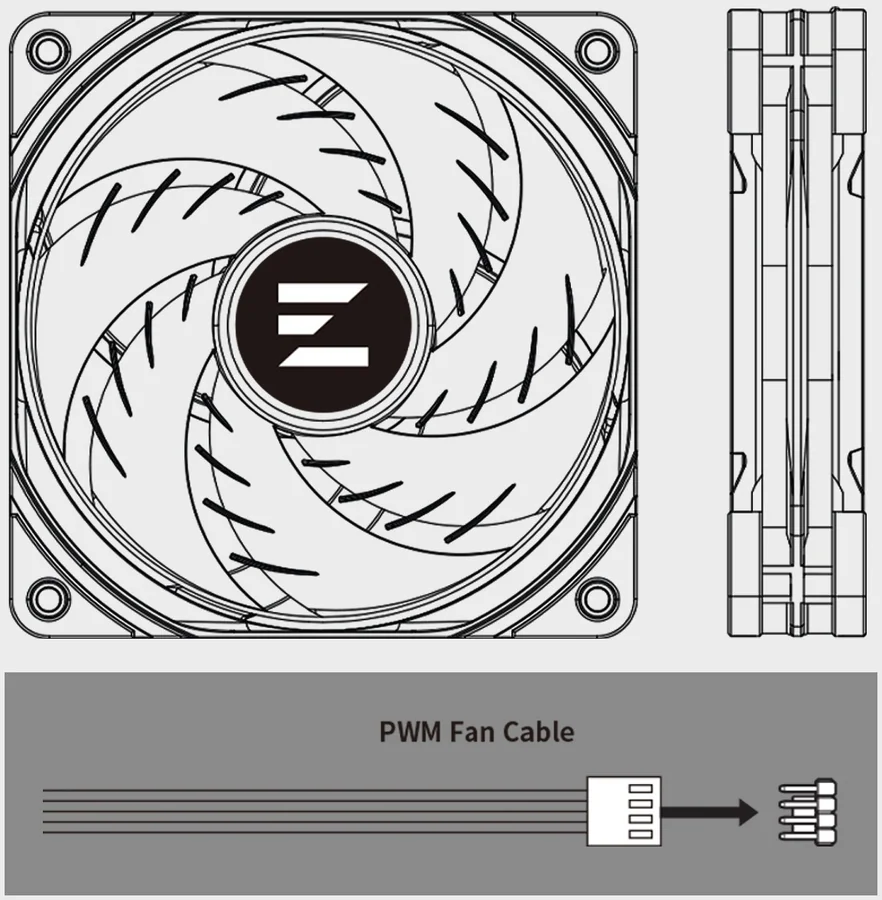

• PWM control - The 4-pin connector lets the motherboard adjust the speed automatically between 600 and 2000 RPM according to the heat load.

Specifications
