Case Fan Noctua NF-P14r redux-1500 PWM 140mm Color:gray

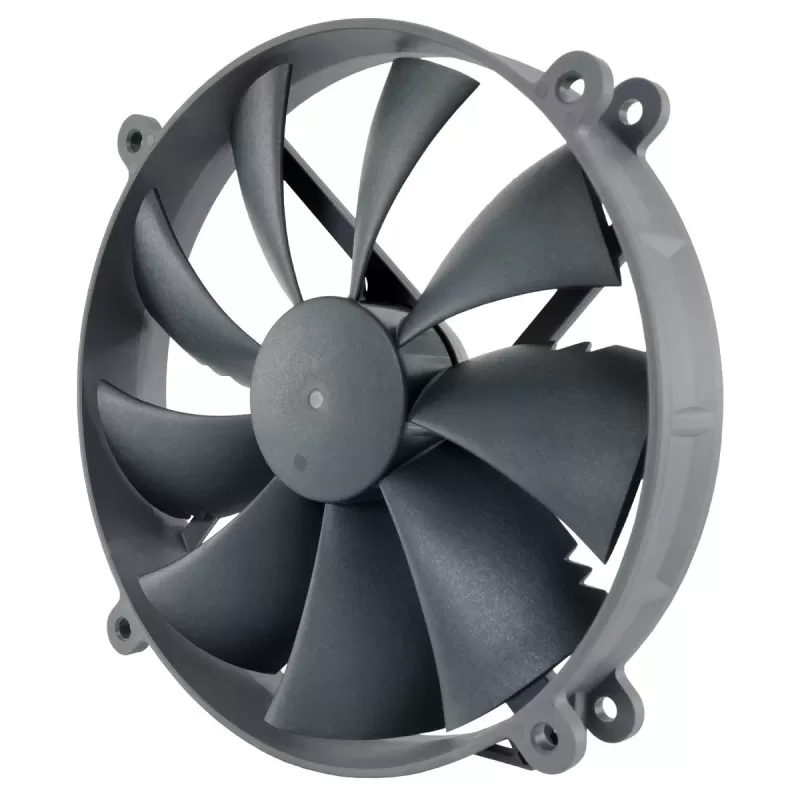

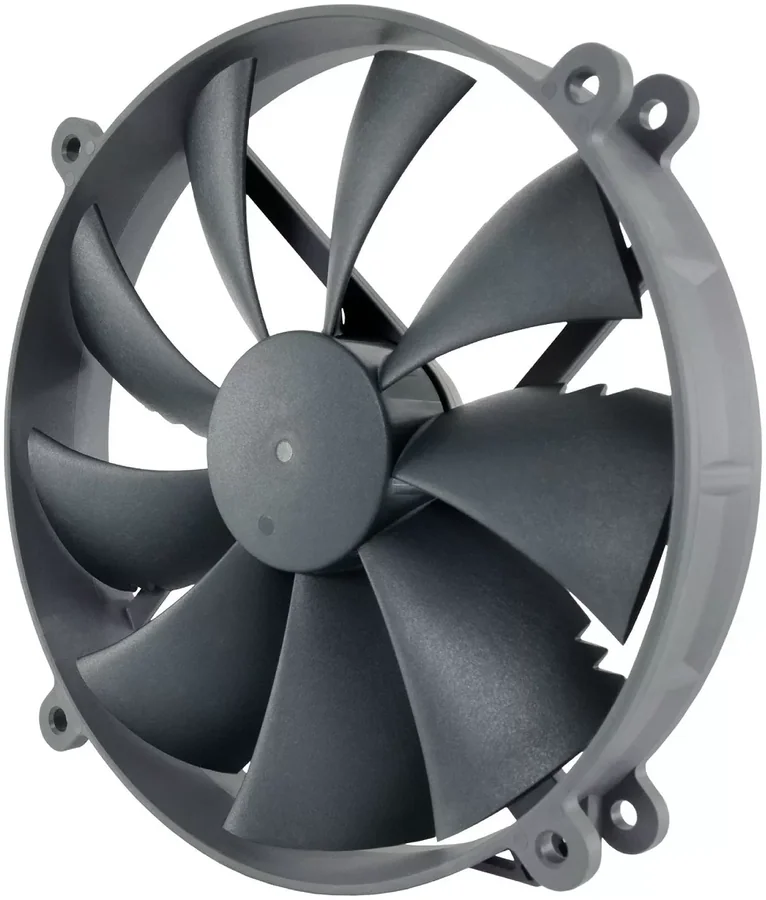

Noctua NF-P14r redux-1500 PWM Case Fan

The Noctua NF-P14r redux-1500 PWM is the redux edition of the NF-P14 with a round frame (r) designed for CPU coolers. Its mounting holes use 105 mm spacing like a 120mm fan, so it can replace a 120mm fan on a cooler or in a case and move more air thanks to its larger diameter.

The 1500 RPM PWM version suits high-efficiency case, radiator and CPU cooling that needs extra performance headroom together with automatic speed control. It features the SSO bearing, an MTTF rating of over 150,000 hours and a grey design in a streamlined package at an accessible price.

Key features

• Round frame with 120mm holes - The round 140mm frame uses the same 105 mm hole spacing as 120mm fans, making it an upgrade for 120mm CPU cooler or case fans with more airflow from its larger diameter.
• SSO bearing - A hydrodynamic bearing with an additional magnet that stabilizes the rotor axis, known for very quiet operation and long-term stability. MTTF over 150,000 hours.
• Pressure-optimized 9 blades - The nine-blade impeller was developed for high-impedance uses such as CPU coolers, radiators and cases with tight fan grills, and delivers strong pressure and airflow.
• Vortex-Control Notches - Notches on the trailing edges split up vortices and spread the noise over a wider frequency range, so the fan sounds more pleasant.
• PWM with full stop - The NE-FD1 driver enables automatic speed control from the motherboard: up to 1500 RPM, about 420 RPM at 20% PWM and a full stop at 0% PWM.

Specifications

In the box

• Noctua NF-P14r redux-1500 PWM fan
• Fan screws
