Expansion Card ASRock Ultra Quad M.2 Card

ASRock Ultra Quad M.2 Card Expansion Card

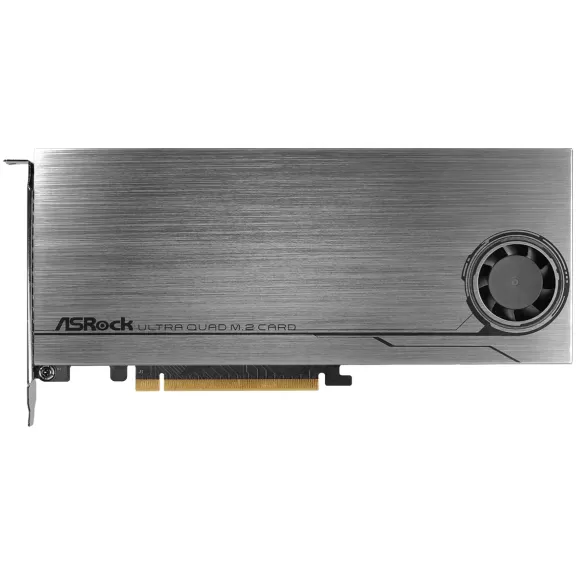

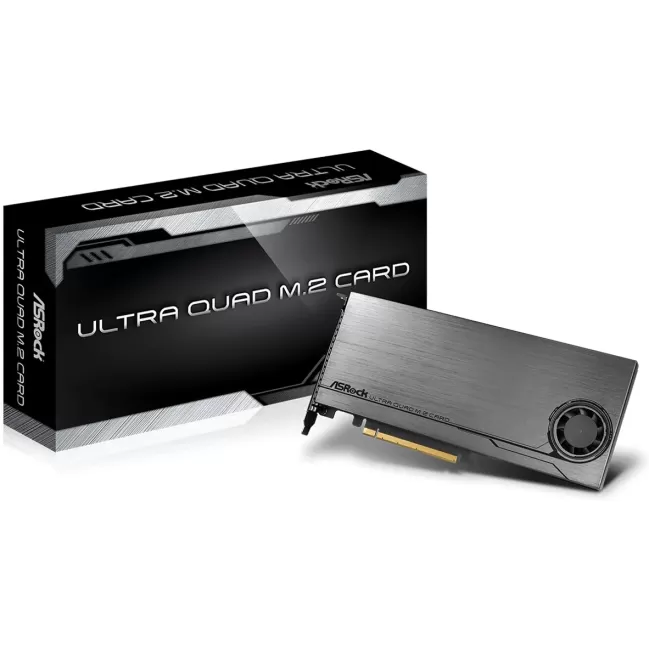

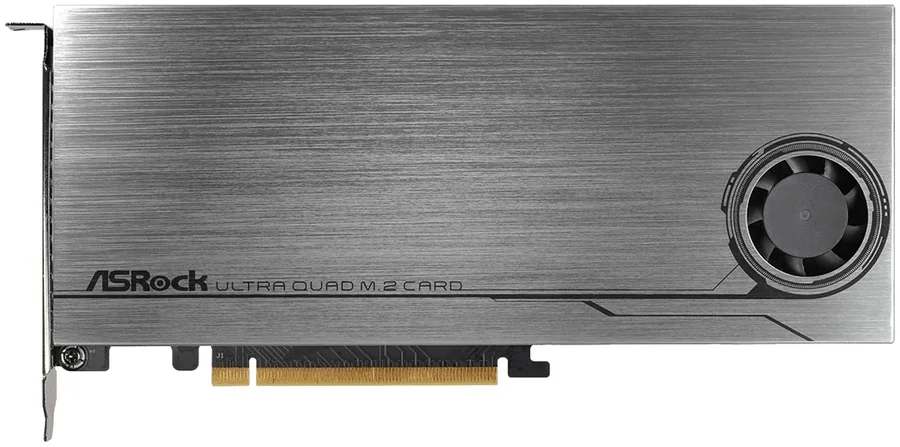

The ASRock Ultra Quad M.2 Card is a PCI Express 3.0 x16 expansion card that holds up to four NVMe M.2 SSDs, each on its own PCIe Gen3 x4 link at up to 32Gb/s. It supports 2242, 2260, 2280 and 22110 drives.

The drives are cooled by an aluminum cover with thermal pads and a 5 cm fan whose speed is set by a switch on the card. On the Intel X299 platform you can build a VROC RAID array, and on AMD X399 a bootable RAID array with up to four drives. The motherboard must support splitting the x16 slot into four x4 links, and ASRock publishes a list of supported boards.

Key features

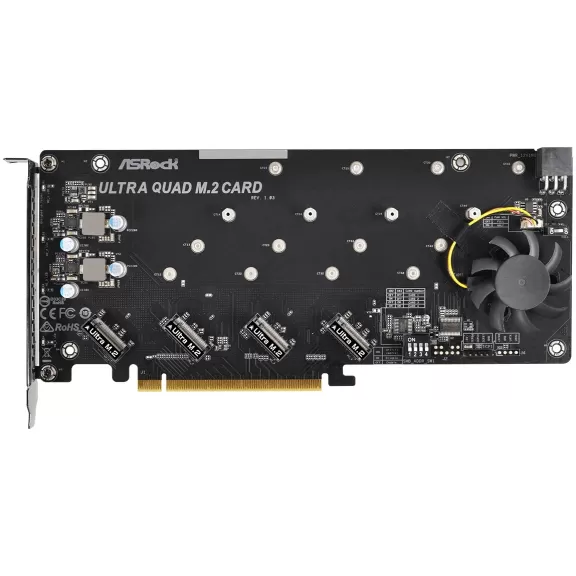

• 4 NVMe drives on one card - Four Ultra M.2 sockets with PCIe Gen3 x4 per drive, for extra fast storage or a RAID array.
• All drive lengths - Fits 2242, 2260, 2280 and 22110 drives using a movable screw standoff.
• Active cooling - An aluminum cover with 11 cm thermal pads and a 5 cm fan with a Full or Half speed switch.
• Extra power - A 6-pin 12V connector for power-hungry drives when more than two are installed.
• RAID and VROC - Intel VROC support on X299 boards (VROC key required) and bootable RAID on AMD X399 boards.
• Management utility - ASRock Ultra Quad M.2 Card Utility to check drive status and control the fan.

Specifications

In the box

• ASRock Ultra Quad M.2 Card
• Quick installation guide
• Support CD
• M.2 screws
