Motherboard ASRock H810M-X DDR5 LGA1851

Motherboard ASRock H810M-X

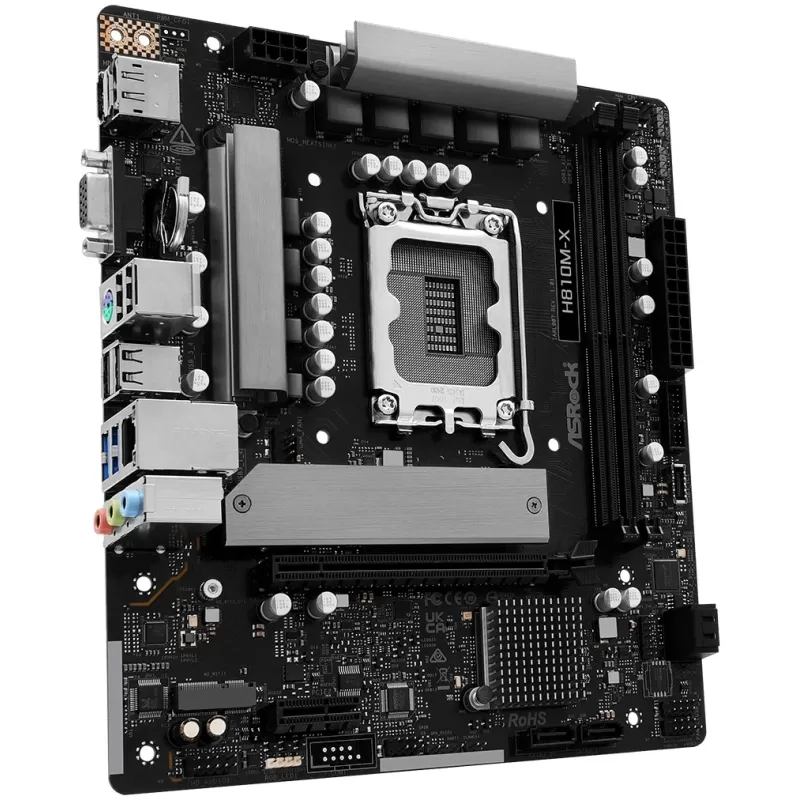

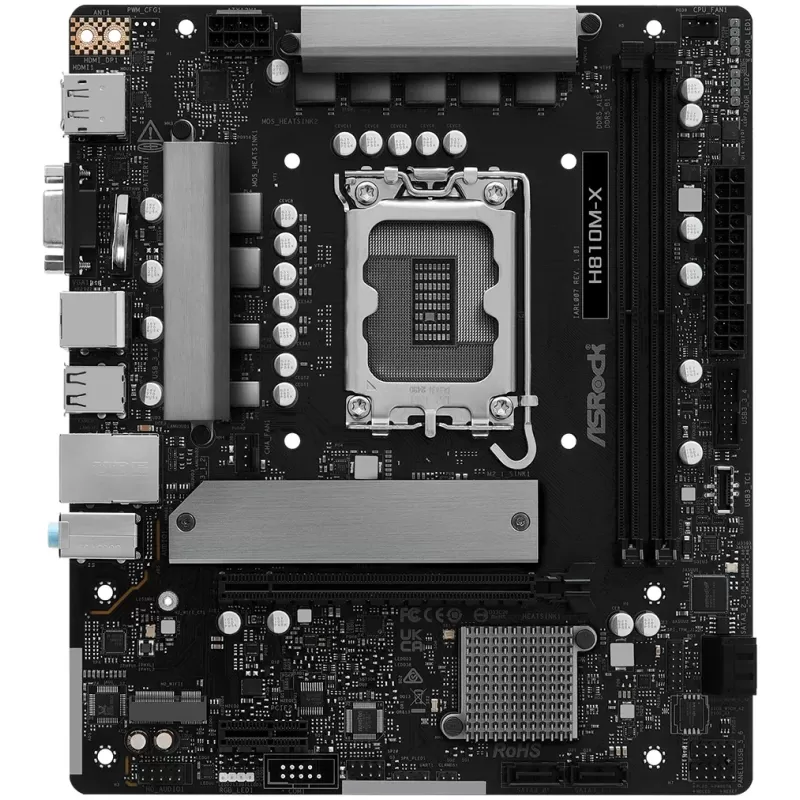

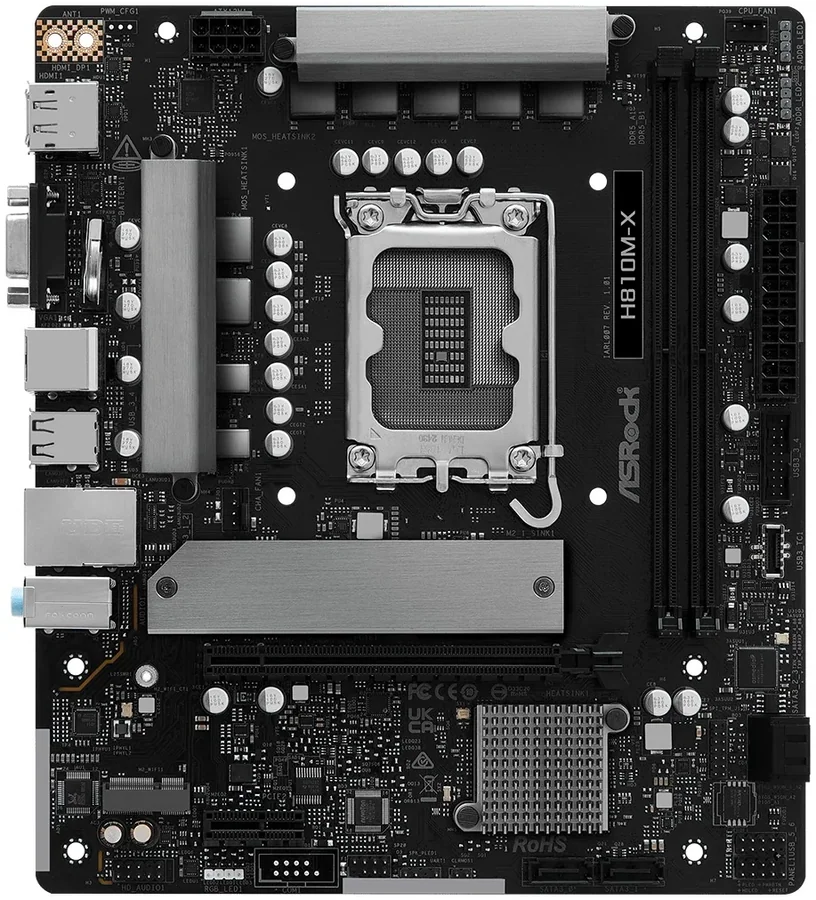

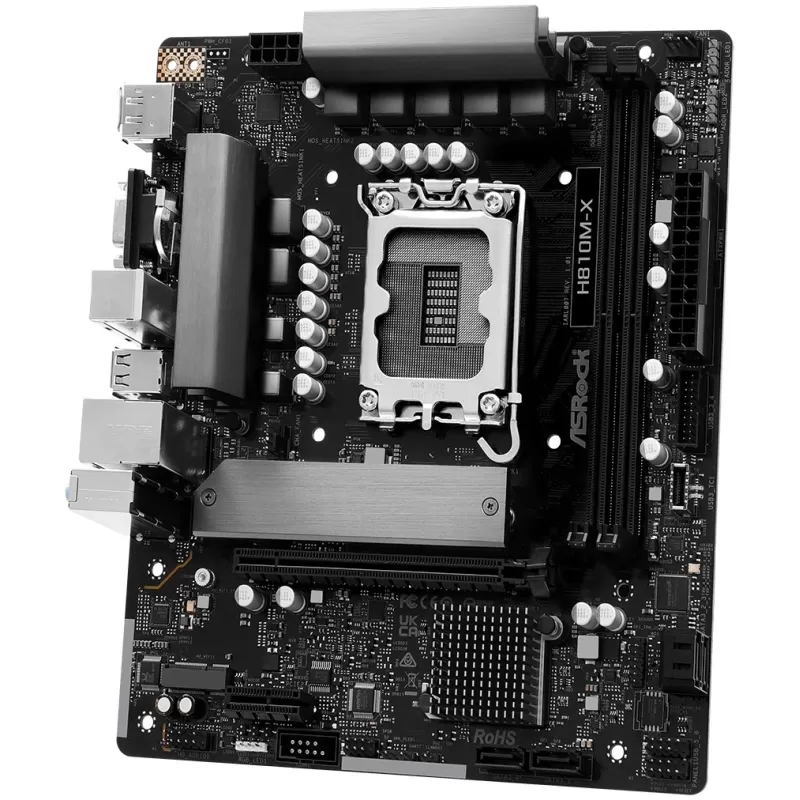

The ASRock H810M-X is an entry-level Micro ATX motherboard for socket LGA1851 and Intel Core Ultra (Series 2) processors. It is based on the Intel H810 chipset with a 6+1+1+1+1 phase power design and takes two DDR5 modules up to 128GB at up to 6400 MHz, including CUDIMM modules.

The board has a PCIe 4.0 x16 slot, a Hyper M.2 slot for a PCIe Gen4x4 NVMe SSD, four SATA3 ports, 2.5G LAN and HDMI, DisplayPort and D-Sub outputs. This model has no built-in Wi-Fi, but an M.2 Key E slot lets you add a module later.

Key features

• Core Ultra (Series 2) CPUs - Socket LGA1851 and a 6+1+1+1+1 phase power design with an 8-pin connector, for a new PC on Intel's latest desktop platform.
• DDR5 up to 6400 MHz - Two dual-channel DDR5 slots up to 128GB, with CUDIMM and Intel XMP 3.0 support.
• PCIe 4.0 and Gen4 M.2 - A PCIe 4.0 x16 slot for a graphics card, a PCIe 4.0 x1 slot, a Hyper M.2 slot for a 64Gb/s PCIe Gen4x4 SSD and four SATA3 ports.
• 2.5G LAN - A Dragon RTL8125BG 2.5Gb/s controller, plus an M.2 Key E slot and antenna mounting points for adding Wi-Fi.
• Three video outputs - HDMI 2.1 up to 4K 120Hz, DisplayPort 1.4 up to 8K 60Hz and D-Sub for the CPU's integrated graphics.

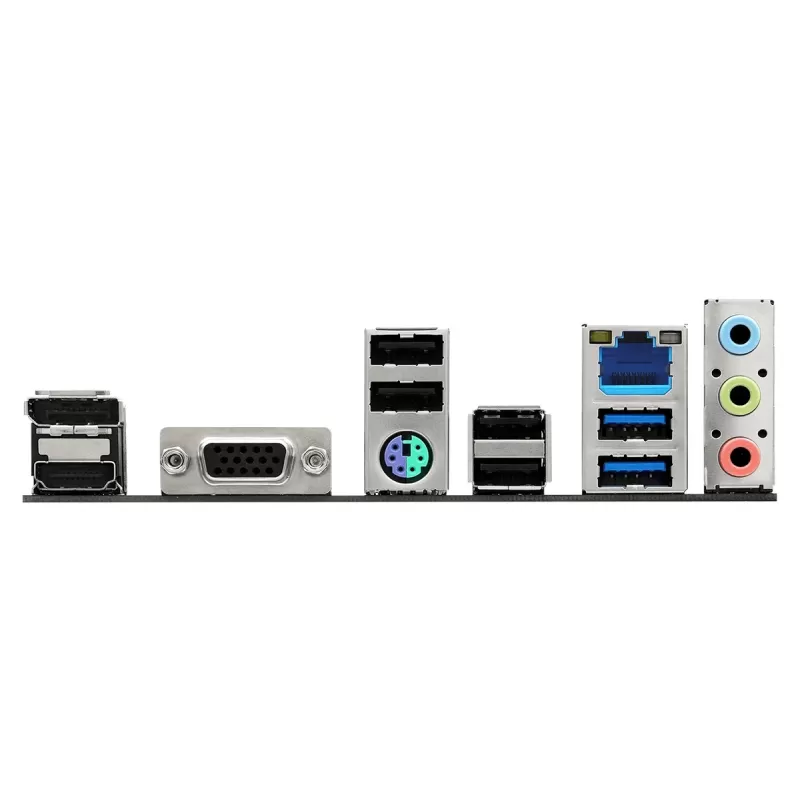

• Lighting and headers - One RGB and two ARGB headers, a front USB 3.2 Gen1 Type-C header and a PS/2 port on the rear panel.
