Motherboard ASRock H810M-P Gen5 DDR5 LGA1851

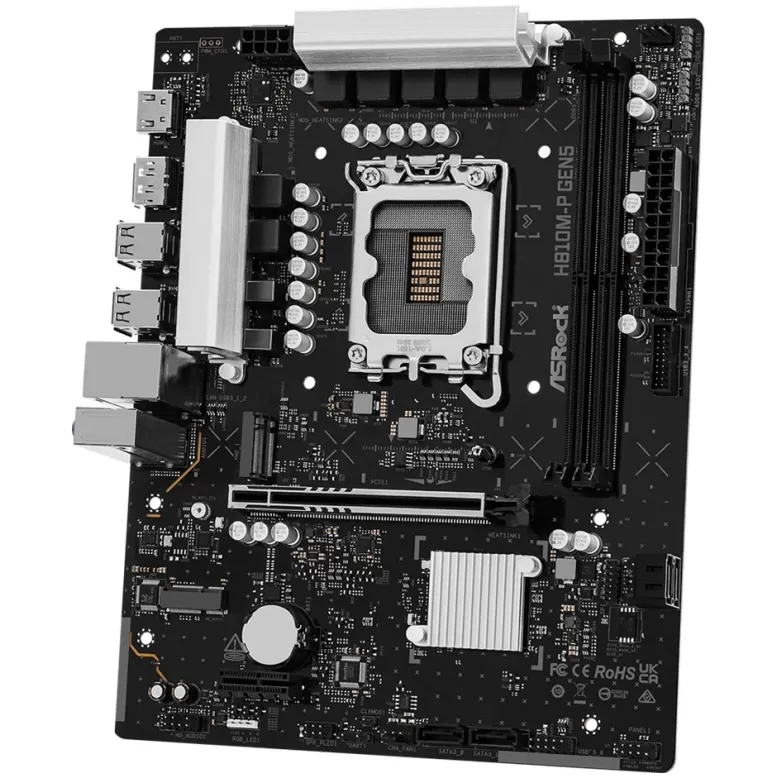

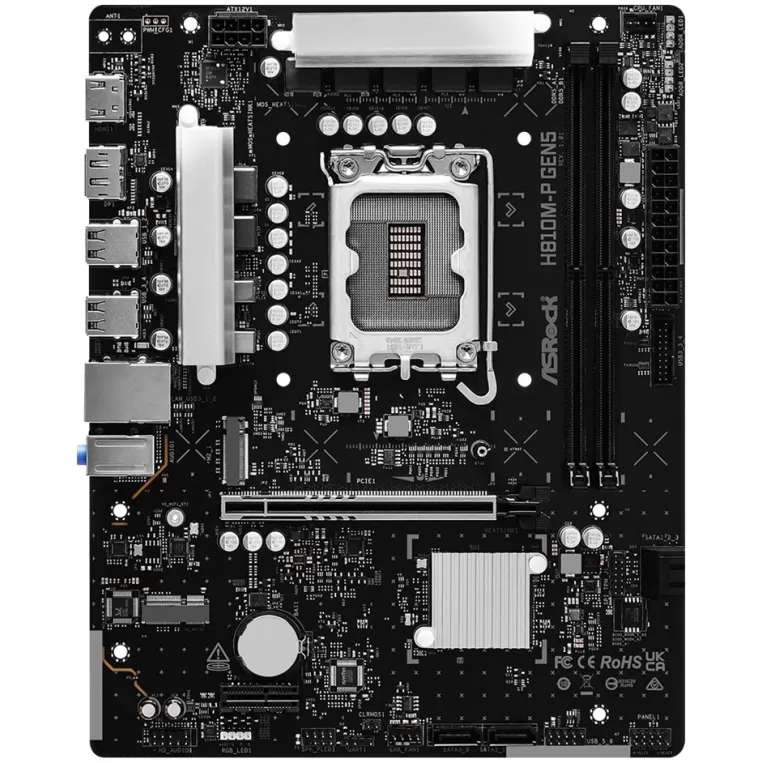

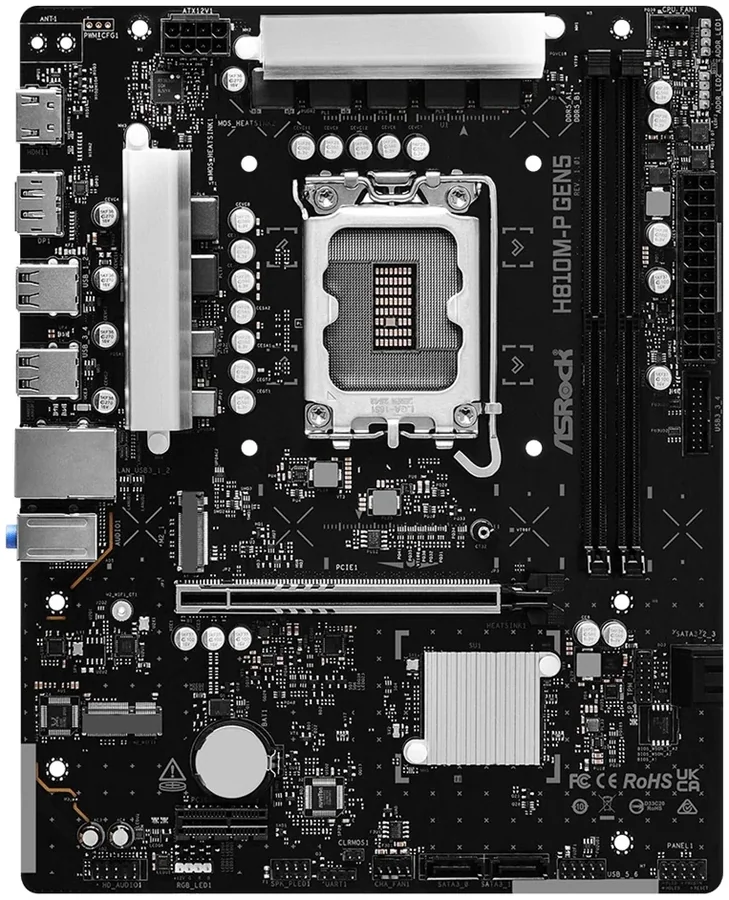

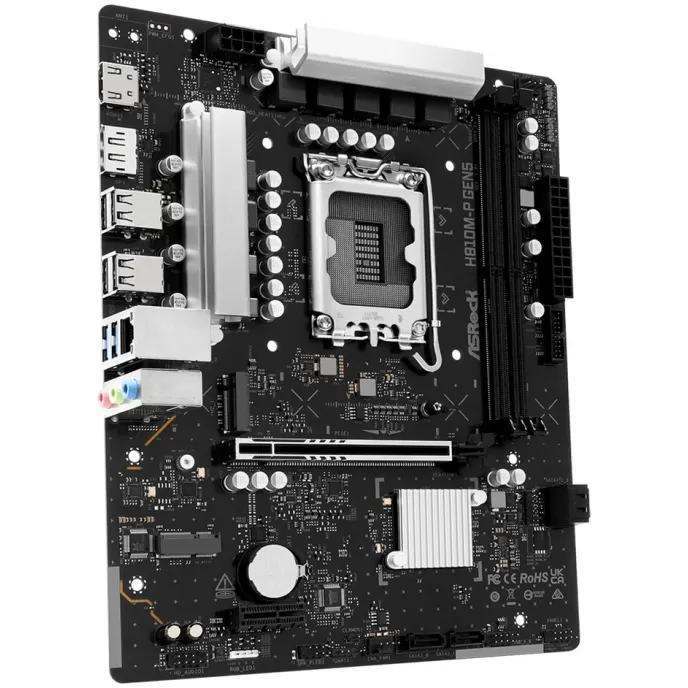

ASRock H810M-P Gen5 Motherboard

The ASRock H810M-P Gen5 is a Micro ATX motherboard based on the Intel H810 chipset with an LGA1851 socket for Intel Core Ultra Processors (Series 2). It targets affordable home, office and gaming builds, and stands out with a PCIe 5.0 x16 graphics slot, which is uncommon on boards with this entry-level chipset.

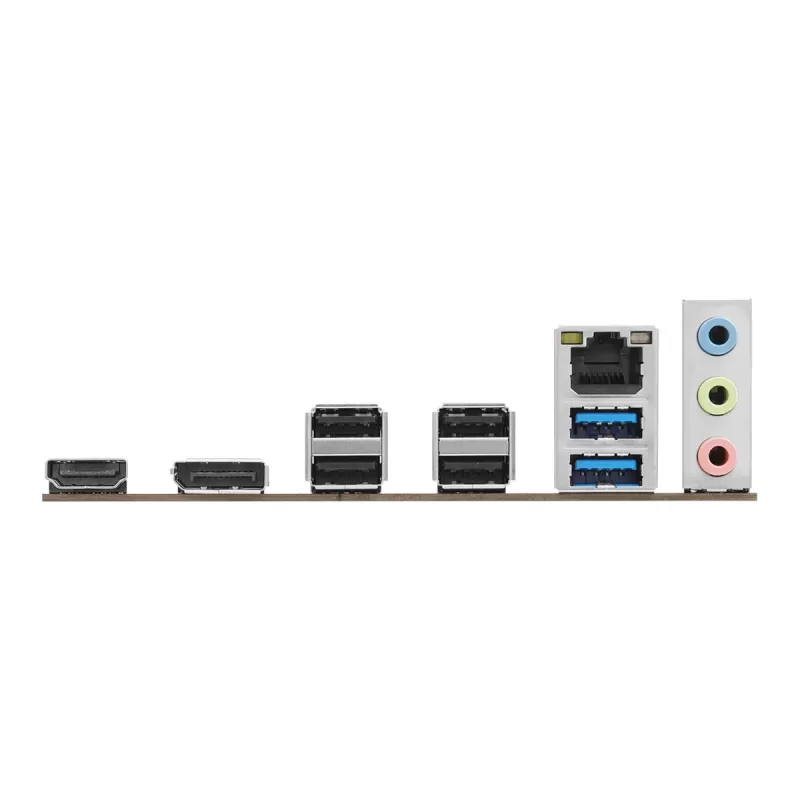

Alongside it you get two dual-channel DDR5 slots for up to 128GB, a Hyper M.2 slot at PCIe 4.0 x4 for an NVMe drive, four SATA ports, Gigabit LAN, and HDMI 2.1 and DisplayPort 1.4 outputs for the processor's integrated graphics.

Key features

• PCIe 5.0 for graphics - A PCIe 5.0 x16 slot wired to the CPU lets you install a current-generation graphics card at full bandwidth, plus a PCIe 4.0 x1 slot from the chipset for an add-in card.
• Fast DDR5 memory - Two dual-channel DDR5 slots for up to 128GB at up to 6400 MHz, with Intel XMP 3.0 profiles and CUDIMM support.
• Fast NVMe storage - A Hyper M.2 slot at PCIe Gen4 x4 (64 Gb/s) for 2280 NVMe drives, bootable, plus four SATA3 ports for additional drives.
• Display output up to 8K - HDMI 2.1 up to 4K 120Hz and DisplayPort 1.4 with DSC up to 8K 60Hz or 5K 120Hz when used with a processor with integrated graphics.
• Lighting, fans and connectivity - Two ARGB headers and one RGB header, a CPU fan header and a chassis fan header rated up to 36W, an M.2 Key E slot for a Wi-Fi module and antenna mounting points on the rear panel.

Specifications
