Motherboard Asus Pro WS TRX50-SAGE WIFI DDR5 DIMM sTR5

Motherboard Asus Pro WS TRX50-SAGE WIFI DDR5 DIMM sTR5
Motherboard Asus Pro WS TRX50-SAGE WIFI DDR5 DIMM sTR5
Motherboard Asus Pro WS TRX50-SAGE WIFI DDR5 DIMM sTR5
Motherboard Asus Pro WS TRX50-SAGE WIFI DDR5 DIMM sTR5
Motherboard Asus Pro WS TRX50-SAGE WIFI DDR5 DIMM sTR5
Motherboard Asus Pro WS TRX50-SAGE WIFI DDR5 DIMM sTR5
Motherboard Asus Pro WS TRX50-SAGE WIFI DDR5 DIMM sTR5
In the importer's stock
Motherboard Asus Pro WS TRX50-SAGE WIFI DDR5 DIMM sTR5
Motherboard Asus Pro WS TRX50-SAGE WIFI DDR5 DIMM sTR5
Motherboard Asus Pro WS TRX50-SAGE WIFI DDR5 DIMM sTR5
Motherboard Asus Pro WS TRX50-SAGE WIFI DDR5 DIMM sTR5
Motherboard Asus Pro WS TRX50-SAGE WIFI DDR5 DIMM sTR5
Motherboard Asus Pro WS TRX50-SAGE WIFI DDR5 DIMM sTR5
Motherboard Asus Pro WS TRX50-SAGE WIFI DDR5 DIMM sTR5

* The picture is for illustration only

Short review: Asus Pro WS TRX50-SAGE WIFI workstation motherboard with an sTR5 socket for AMD Ryzen Threadripper processors, four DDR5 ECC R-DIMM slots in quad channel, three PCIe 5.0 x16 slots, 10Gb and 2.5Gb LAN and Wi-Fi 7., Manufacturer: Asus, Color: black, Socket: sTR5, Chipset: TRX50, Memory Type: DDR5 DIMM, Condition: New, SKU: 57740
Motherboard Asus Pro WS TRX50-SAGE WIFI DDR5 DIMM sTR5

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

*Except for cases of abnormal size/weight

    Payment options:

    • Up to 6 interest-free Credit Card (7-36 with interest)  payments through a website, phone, or Ashdod branch
    • Bank transfer (Deferred payment not accepted), Bit, PayBox
    • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
    • PayPal - Only Shipments With a Tracking Number
    • Наличие: In stock at supplier: delivery to branch within: 4 business days
    • Print:
    • Brand: Asus
    • SKU: 57740
    • MPN: Pro WS TRX50-SAGE WIFI
    Asus Asus
    ₪3,625
    Add to Cart
    Buy Now!
    Add to Wish List Compare this Product
    Send us a question on WhatsApp
    Send a question about this product
    Specification
    Revew

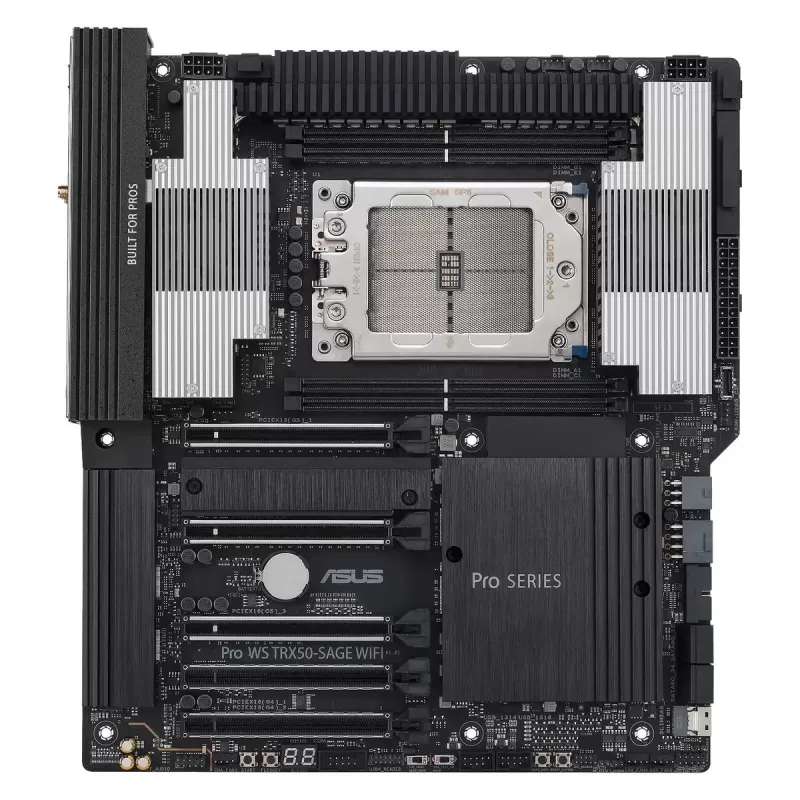

    Asus Pro WS TRX50-SAGE WIFI Motherboard

    The Asus Pro WS TRX50-SAGE WIFI is a workstation and HEDT motherboard with an sTR5 socket, built on the AMD TRX50 chipset and supporting Ryzen Threadripper PRO 9000 and 7000 WX-Series as well as Ryzen Threadripper 9000 and 7000 processors. It is designed for content creation, software development, machine learning and multi-GPU work.

    36 power stages for the CPU, four DDR5 ECC Registered memory slots in a quad-channel layout, five PCIe slots and two wired network controllers next to Wi-Fi 7 make it a stable base for round-the-clock work. The board uses the CEB form factor and measures 30.5 x 28.3 cm.

    Asus Pro WS TRX50-SAGE WIFI Motherboard

    Key features

    • 36 power stages and dual-PSU design - The VRM uses 36 power stages for the CPU, two 8-pin CPU power connectors and two 24-pin main power connectors for running with two power supplies. Heatsinks with active fans and heat pipes keep the board stable under full load and when overclocking.
    • Quad-channel DDR5 ECC R-DIMM - Four DIMM slots take DDR5 ECC Registered memory up to 1TB in a quad-channel architecture. EXPO profile support lets you speed up the memory while keeping ECC error correction.
    • Room for multiple GPUs - Two PCIe 5.0 x16 slots, a PCIe 5.0 x16 slot running in x8 mode, a PCIe 4.0 x16 slot and another PCIe 4.0 slot in x4 mode. Onboard 6-pin and 8-pin PCIe power connectors keep the power delivery stable when several graphics cards are installed.
    • Fast NVMe storage - Three M.2 slots, two with PCIe 5.0 x4 from the CPU and one with PCIe 4.0 x4 from the chipset, plus four SATA 6Gb/s ports and a SlimSAS connector for a PCIe 4.0 x4 NVMe drive. RAID 0, 1, 5 and 10 are supported.
    • Fast networking and 20Gbps USB - A Marvell AQtion 10Gb controller and an Intel I226-LM 2.5Gb controller, 2x2 Wi-Fi 7 and Bluetooth 5.4. The rear panel has a 20Gbps USB-C port, six 10Gbps USB-A ports and two USB 2.0 ports, and the board has a 20Gbps front USB-C connector with up to 27W of power.
    • Remote management and easy service - A BMC header for the ASUS IPMI expansion card and ASUS Control Center Express software provide real-time monitoring and management. BIOS FlashBack and Clear CMOS buttons, Q-Code and Q-LED indicators make assembly and troubleshooting easier.

    Specifications

    ManufacturerAsus
    ModelPro WS TRX50-SAGE WIFI
    Part number90MB1FZ0-M0EAY0
    CPU socketsTR5
    Supported processorsAMD Ryzen Threadripper PRO 9000/7000 WX-Series, Ryzen Threadripper 9000/7000
    ChipsetAMD TRX50
    Memory4 x DIMM DDR5 ECC Registered, quad channel, up to 1TB
    Expansion slots3 x PCIe 5.0 x16 (one in x8 mode), 2 x PCIe 4.0 x16 (one in x4 mode)
    Storage3 x M.2 (2 x PCIe 5.0 x4, 1 x PCIe 4.0 x4), 4 x SATA 6Gb/s, 1 x SlimSAS (PCIe 4.0 x4 NVMe)
    RAID0, 1, 5, 10 (NVMe and SATA)
    Wired LANMarvell AQtion 10Gb, Intel I226-LM 2.5Gb
    WirelessWi-Fi 7 (802.11be) 2x2, Bluetooth 5.4
    Rear USB1 x USB-C 20Gbps, 6 x USB-A 10Gbps, 2 x USB 2.0
    Internal USBUSB-C 20Gbps connector (up to 27W), USB 5Gbps header for 2 ports, 2 x USB 2.0 headers for 4 ports
    AudioRealtek ALC1220P, optical S/PDIF out
    Power delivery36 CPU power stages, 2 x 24-pin, 2 x 8-pin CPU, onboard 6-pin and 8-pin PCIe connectors
    BIOS256Mb Flash ROM, UEFI AMI
    Operating systemWindows 11
    Form factorCEB, 30.5 x 28.3 cm

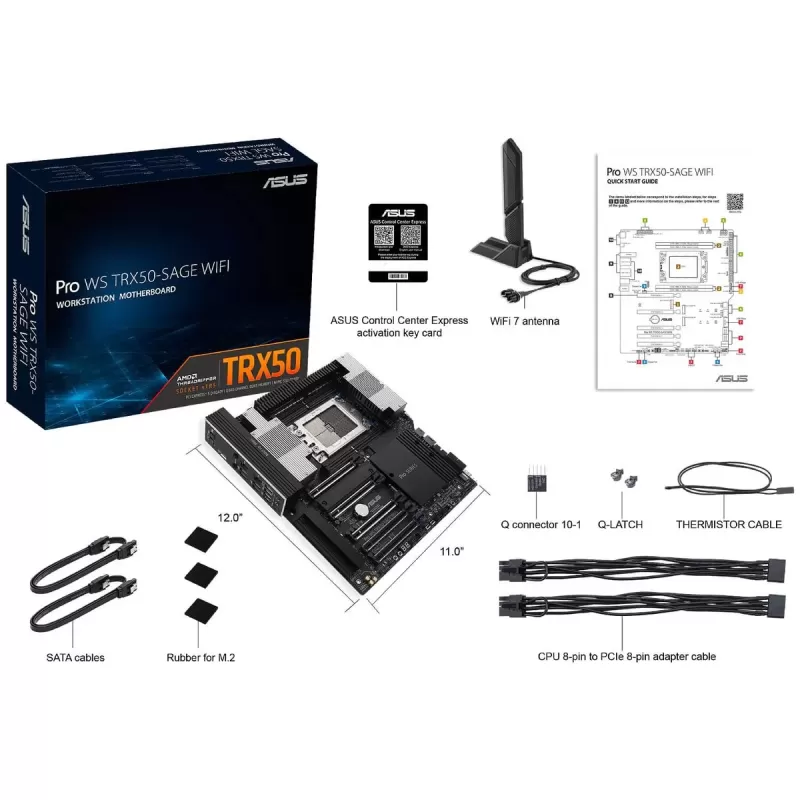

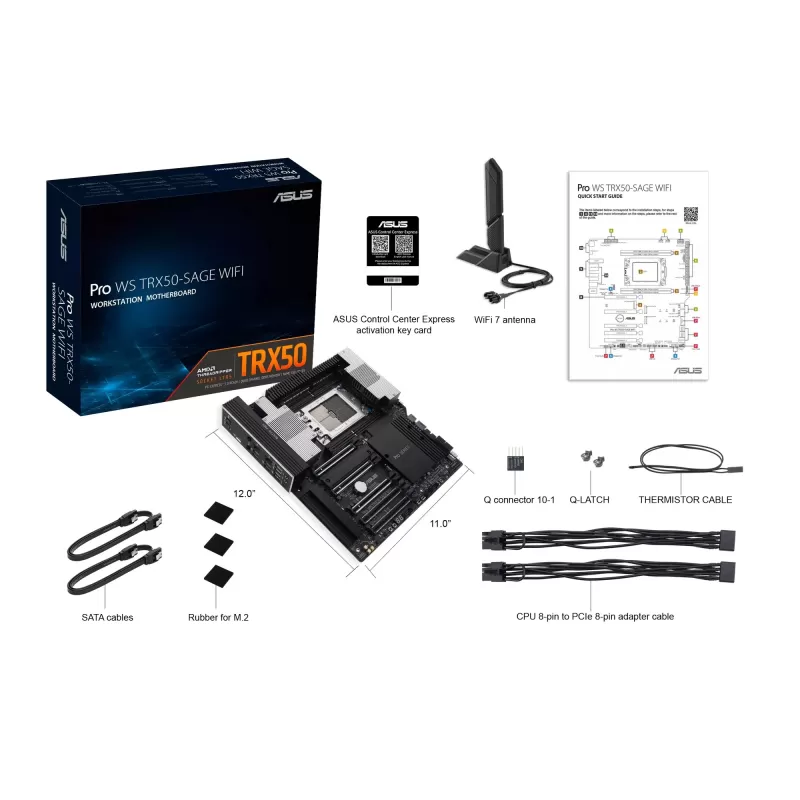

    In the box

    • Asus Pro WS TRX50-SAGE WIFI motherboard
    • 2 x SATA 6Gb/s cables
    • CPU 8-pin to PCIe 8-pin adapter cable
    • Thermistor cable pack
    • ASUS WiFi Q-Antenna
    • M.2 Q-Latch package (2 in 1)
    • 2 x M.2 rubber packages
    • Q-Connector
    • ASUS Control Center Express activation key card
    • Quick start guide
    Review
    Warranty3 years
    Service During The Warranty Period (Who To Contact)COMPMASTER Lab

    073-2241747

    Gei Oni 6, Tet Shoping Center, Ashdod

    Manufacturer Part NumberPro WS TRX50-SAGE WIFI, 90MB1FZ0-M0EAY0
    ModelPro WS TRX50-SAGE WIFI
    Colorblack
    ConditionNew
    EAN4711387402726
    ManufacturerAsus
    Audio

    Realtek ALC1220P Surround Sound High Definition Audio CODEC*
    - Impedance sense for front and rear headphone outputs
    - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
    - Supports up to 32-Bit/192 kHz playback

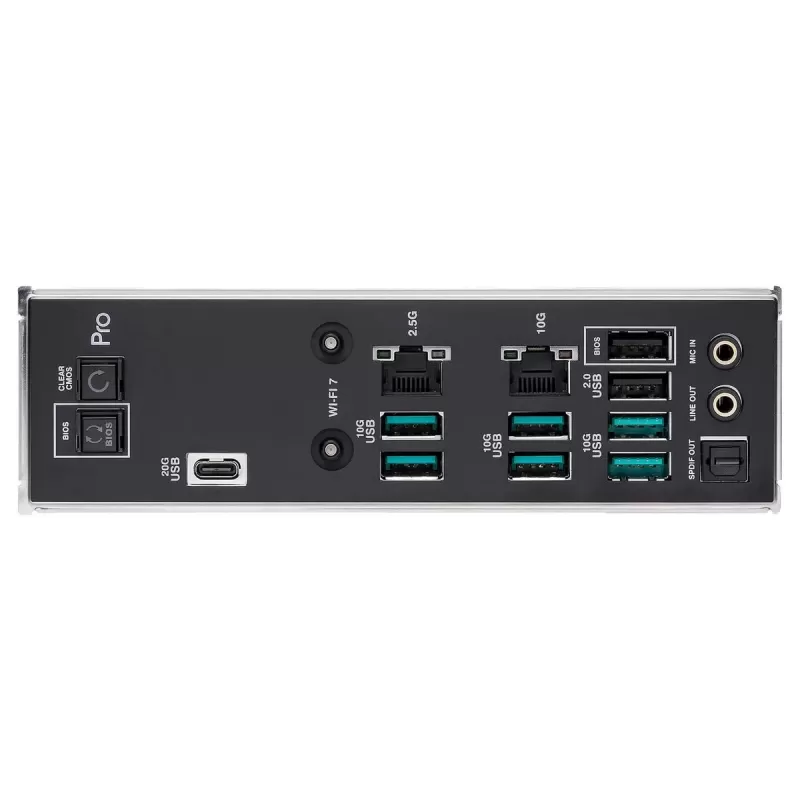

    Back Panel Connectors

    1 x USB 20Gbps port (1 x USB Type-C®)
    6 x USB 10Gbps ports (6 x Type-A)
    2 x USB 2.0 port (2 x Type-A)
    1 x Wi-Fi Module
    1 x Marvell®&AQtion 10Gb Ethernet port
    1 x Intel®&2.5Gb Ethernet port
    2 x Audio jacks
    1 x Optical S/PDIF out port
    1 x BIOS FlashBack™ button
    1 x Clear CMOS button

    ChipsetTRX50
    Compatibility for computer assemblyAMD Motherboards
    ConfigurationCEB
    Internal Ports / Inputs

    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x W_PUMP+ header
    4 x 4-pin Chassis Fan headers
    2 x 4-pin VRM Fan header (with VRM FAN onboard)
    Power related
    2 x 24-pin Main Power connectors
    2 x 8-pin +12V Power connectors
    2 x 8-pin PCIe to CPU power connectors
    1 x 6-pin PCIe Power connector
    1 x 8-pin PCIe Power connector
    Storage related
    3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
    1 x SlimSAS port
    USB
    1 x USB 20Gbps connector supports USB Type-C®
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    Miscellaneous
    1 x BMC header1 x COM Port header
    1 x USB4 header1 x FlexKey button
    1 x Front panel audio header (F_AUDIO)
    1 x Start button
    1 x Safe boot button
    1 x ReTry button1 x LN2 mode jumper
    1 x Slow mode switch
    1 x SPI TPM header (14-1pin)
    1 x 10-1 pin system panel header
    1 x Chassis intrusion header
    1 x Thermal Sensor header

    Memory

    4 x DIMM slots, DDR5, ECC Registered Memory*
    4 Channel Memory Architecture
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

    Memory TypeDDR5 DIMM
    SocketsTR5
    Storage

    Total supports 3 x M.2 slots, 4 x SATA 6Gb/s ports AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD TRX50 Chipset
    M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device
    * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.

    Wired Communication

    1 x Marvell®&AQtion 10Gb Ethernet
    1 x Intel®&I226-LM 2.5Gb Ethernet

    Wireless network

    Wi-Fi 7*
    2x2 Wi-Fi 7 (802.11be)**
    Supports 2.4/5/6GHz frequency band***
    Support Wi-Fi 7 160MHz bandwidth, up to 2.8Gbps transfer rate.
    Bluetooth®&v5.4****
    * Compatible with Windows 11 or later.
    ** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.
    *** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
    **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

    What'S In The Box?

    Cables
    2 x SATA 6Gb/s cables
    1 x CPU 8-pin to PCIe 8-pin adapter cable package
    1 x Thermistor cable pack
    Miscellaneous
    1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
    1 x M.2 Q-Latch package(2 in 1)
    2 x M.2 Rubber Packages
    1 x Q-connectorDocumentation
    1 x ACC Express Activation Key Card
    1 x QSG

    Link To The Manufacturer'S Website

    Get full product information - Go to product page

    Product LinkMotherboard Asus Pro WS TRX50-SAGE WIFI DDR5 DIMM sTR5
    Matching SKUsID:~57740~, NEW, OC: 36638, VSL: 90MB1FZ0-M0EAY0, CRG: 90MB1FZ0-M0EAY0, CD: 90MB1FZ0-M0EAY0, MPN: Pro WS TRX50-SAGE WIFI, MPN2: 90MB1FZ0-M0EAY0, EAN: 4711387402726
