| Specification | |||||||||||||||||||||||||||||||||||||||||

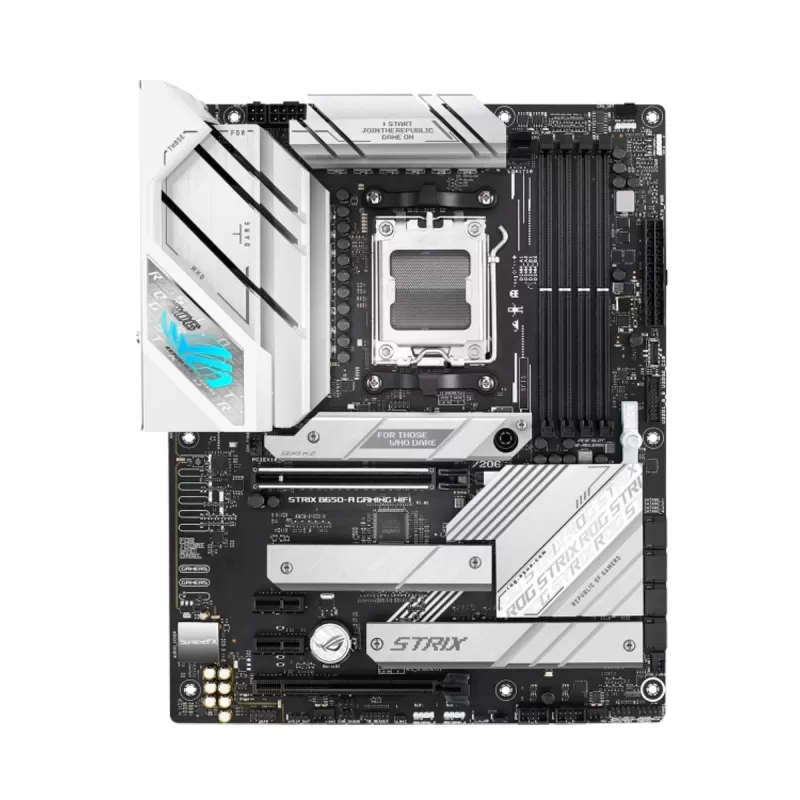

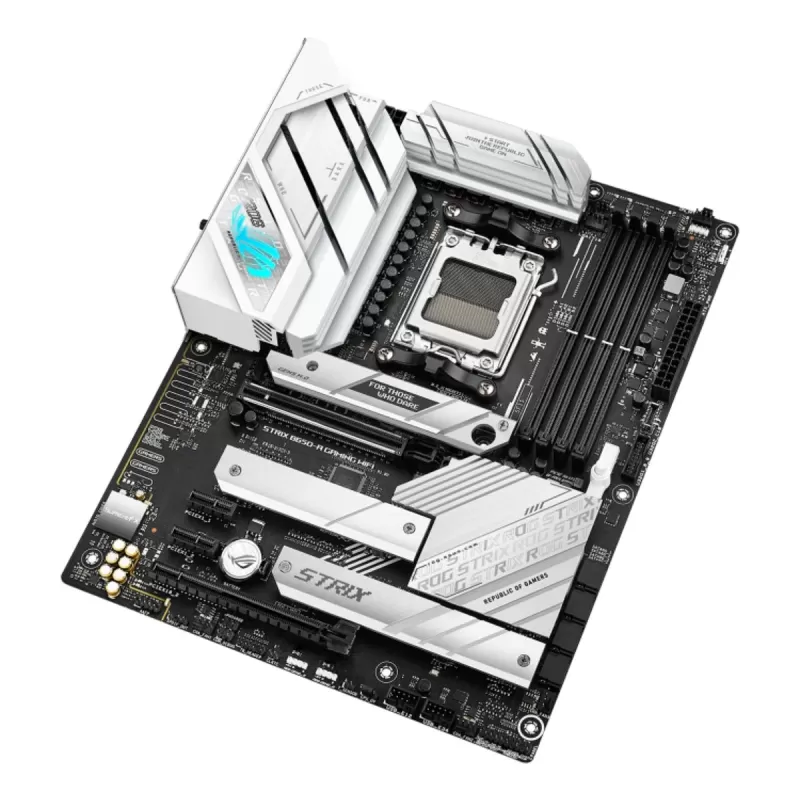

| Revew | Asus ROG STRIX B650-A GAMING WIFI MotherboardThe Asus ROG STRIX B650-A GAMING WIFI is an ATX gaming motherboard for the AM5 socket, built for AMD Ryzen 7000, 8000 and 9000 series processors. It is based on the AMD B650 chipset and supports DDR5 memory in four slots, up to 192GB and up to 7600+ MT/s (OC) with AMD EXPO profiles. According to the manufacturer, the board uses 12+2+1 power stages rated for up to 60A each and thick heatsinks over the VRM, the chipset and all three M.2 slots, one of them PCIe 5.0. It offers Intel 2.5Gb LAN, Wi-Fi 6E with Bluetooth 5.2, ROG SupremeFX audio and a silver and white design on a black PCB with RGB lighting.
Key features
Specifications
In the box
| ||||||||||||||||||||||||||||||||||||||||
| Review | |||||||||||||||||||||||||||||||||||||||||
| Warranty | 3 years | ||||||||||||||||||||||||||||||||||||||||
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer Part Number | ROG STRIX B650-A GAMING WIFI, 90MB1BP0-M0EAY0 | ||||||||||||||||||||||||||||||||||||||||
| Model | ROG STRIX B650-A GAMING WIFI | ||||||||||||||||||||||||||||||||||||||||
| Condition | New | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4711081917762 | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer | Asus | ||||||||||||||||||||||||||||||||||||||||
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. | ||||||||||||||||||||||||||||||||||||||||

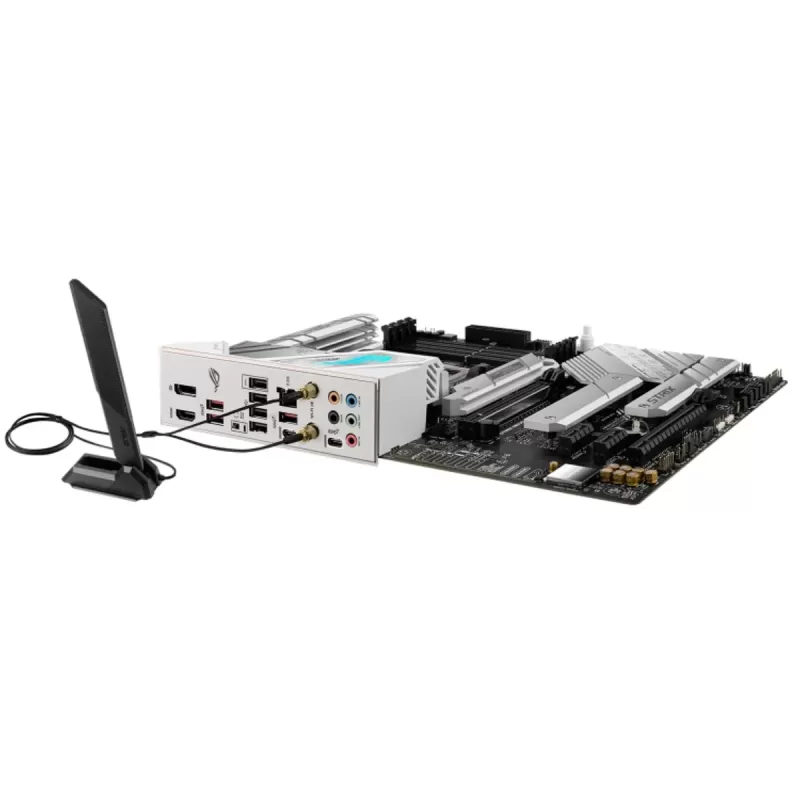

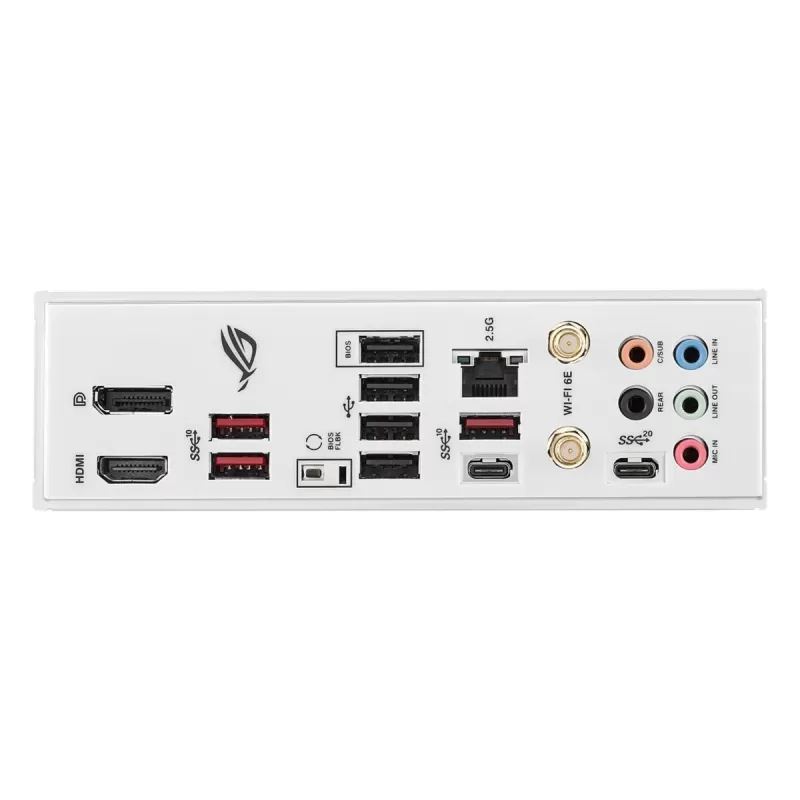

| Back Panel Connectors | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button | ||||||||||||||||||||||||||||||||||||||||
| Chipset | B650 | ||||||||||||||||||||||||||||||||||||||||
| Compatibility for computer assembly | AMD Motherboards | ||||||||||||||||||||||||||||||||||||||||
| Configuration | ATX | ||||||||||||||||||||||||||||||||||||||||
| Internal Ports / Inputs | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers supports additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™header 1 x COM_DEBUGheader | ||||||||||||||||||||||||||||||||||||||||
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* | ||||||||||||||||||||||||||||||||||||||||
| Memory Type | DDR5 DIMM | ||||||||||||||||||||||||||||||||||||||||
| Memory Volume | 128GB | ||||||||||||||||||||||||||||||||||||||||
| Socket | AM5 | ||||||||||||||||||||||||||||||||||||||||
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* | ||||||||||||||||||||||||||||||||||||||||
| Wired Communication | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard | ||||||||||||||||||||||||||||||||||||||||
| Wireless network | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 * Wi-Fi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. | ||||||||||||||||||||||||||||||||||||||||

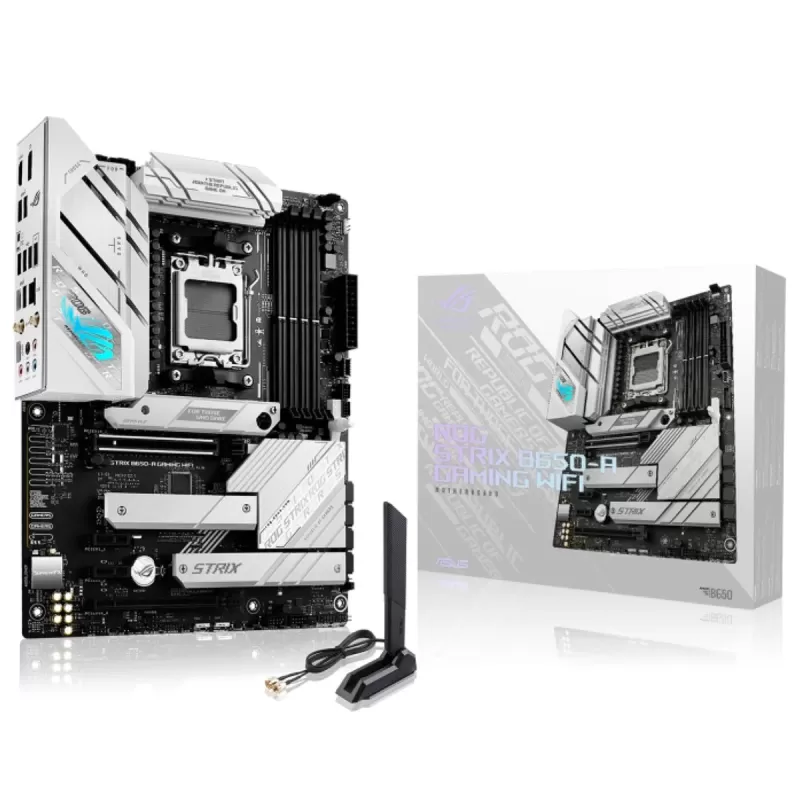

| What'S In The Box? | Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 2 x M.2 Rubber Packages Documentation 1 x User guide | ||||||||||||||||||||||||||||||||||||||||
| Link To The Manufacturer'S Website | |||||||||||||||||||||||||||||||||||||||||
| Product Link | Motherboard Asus ROG STRIX B650-A GAMING WIFI DDR5 DIMM AM5 | ||||||||||||||||||||||||||||||||||||||||
| Matching SKUs | ID:~51352~, NEW, OC: 26791, EASX: 90MB1BP0-M0EAY0, VSL: 90MB1BP0-M0EAY0, CD: 90MB1BP0-M0EAY0, MPN: ROG STRIX B650-A GAMING WIFI, MPN2: 90MB1BP0-M0EAY0, EAN: 4711081917762 | ||||||||||||||||||||||||||||||||||||||||
