In the importer's stock
| Specification | |||||||||||||||||||||||||||||||||||||||||

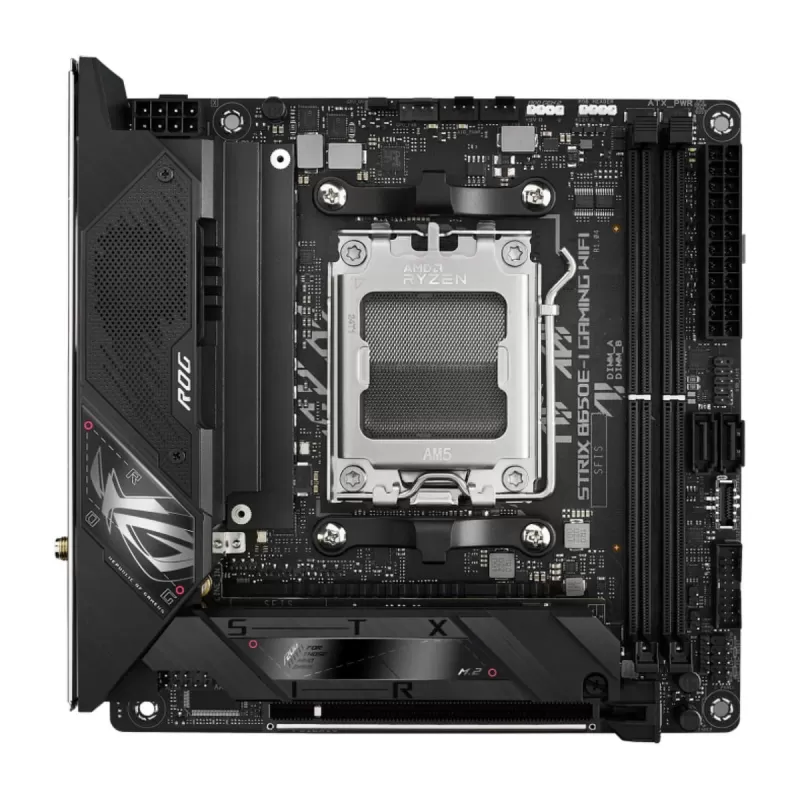

| Revew | Asus ROG STRIX B650E-I GAMING WIFI MotherboardThe Asus ROG STRIX B650E-I GAMING WIFI is a compact Mini-ITX motherboard (17 x 17 cm) for the AM5 socket, built for AMD Ryzen 9000, 8000 and 7000 series processors. It is designed for small gaming PCs and, despite its size, offers a PCIe 5.0 x16 graphics slot and a PCIe 5.0 x4 M.2 slot. According to the manufacturer, the board has 10+2+1 power stages rated at 70A and a 10-layer PCB, two DDR5 slots for up to 96GB at up to 8000 MT/s (OC), Intel 2.5Gb LAN, Wi-Fi 6E and ROG SupremeFX audio with an amplifier. The rear panel has a pre-mounted I/O shield, a 20Gb/s USB-C port and a BIOS FlashBack button.
Key features
Specifications
In the box
| ||||||||||||||||||||||||||||||||||||||||
| Review | |||||||||||||||||||||||||||||||||||||||||
| Warranty | 3 years | ||||||||||||||||||||||||||||||||||||||||
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer Part Number | 90MB1BI0-M0EAY0, 90MB1BI0-M0EAY0 | ||||||||||||||||||||||||||||||||||||||||
| Model | ROG STRIX B650E-I GAMING WIFI | ||||||||||||||||||||||||||||||||||||||||
| Color | black | ||||||||||||||||||||||||||||||||||||||||
| Condition | New | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4711081957881 | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer | Asus | ||||||||||||||||||||||||||||||||||||||||
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - Audio Shielding - Savitech SV3H712 AMP - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. | ||||||||||||||||||||||||||||||||||||||||

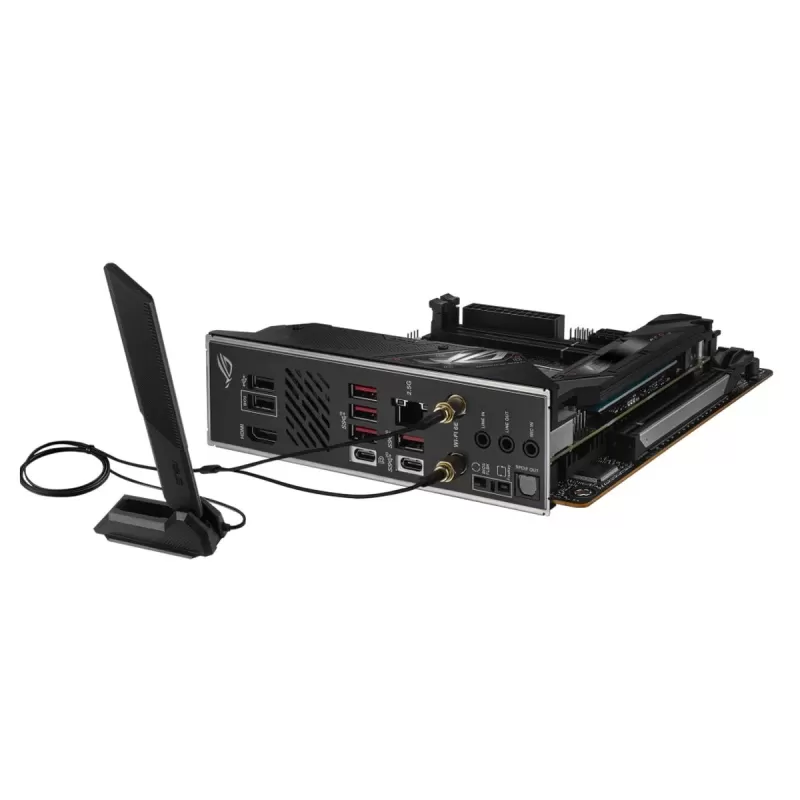

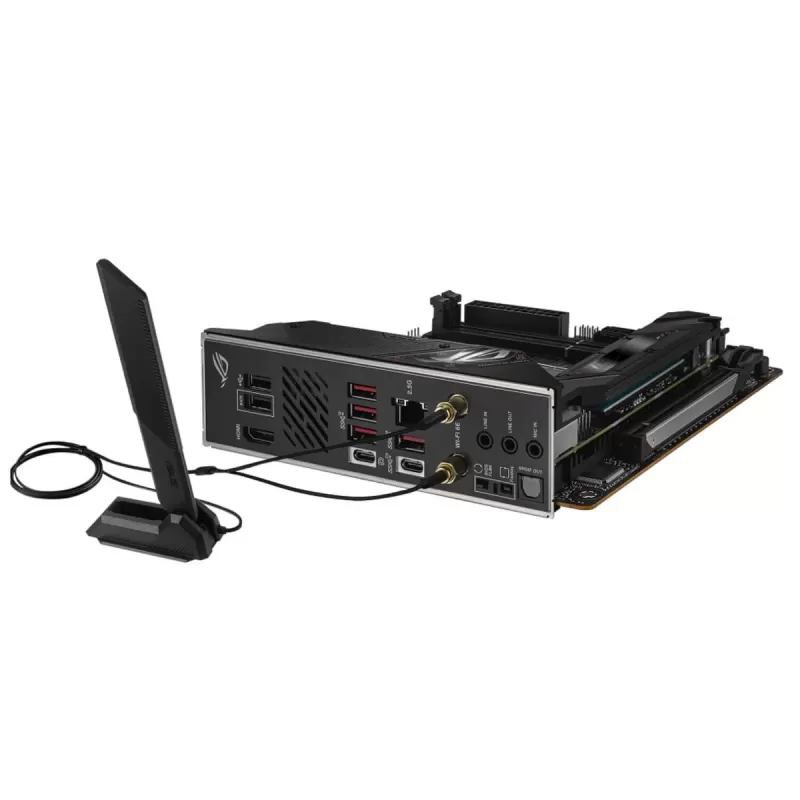

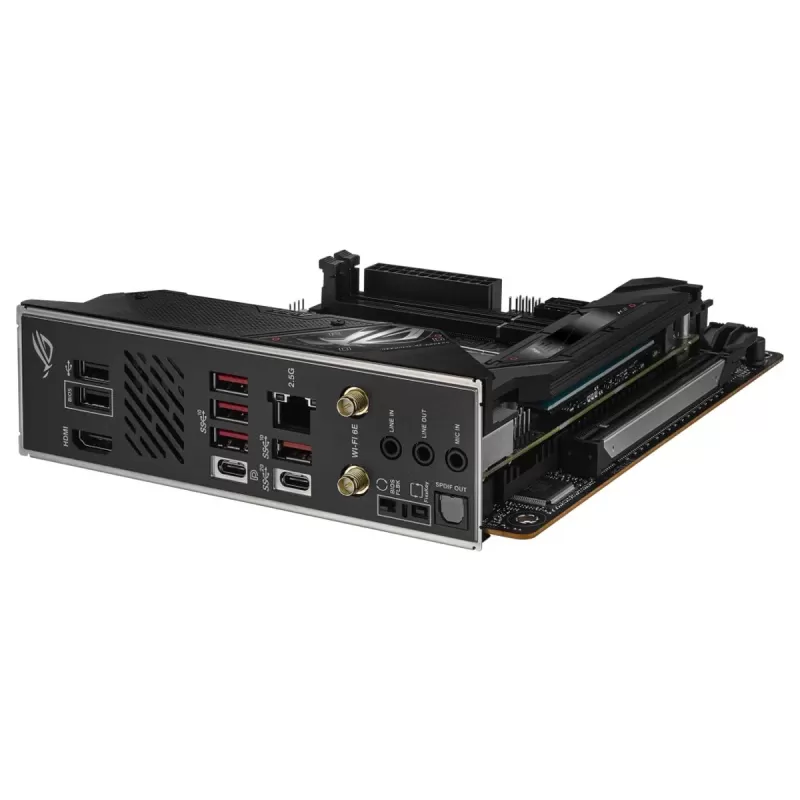

| Back Panel Connectors | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C® with DP Alt mode) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 3 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x FlexKey button *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. | ||||||||||||||||||||||||||||||||||||||||
| Chipset | B650 | ||||||||||||||||||||||||||||||||||||||||
| Compatibility for computer assembly | AMD Motherboards | ||||||||||||||||||||||||||||||||||||||||
| Configuration | Mini-ITX | ||||||||||||||||||||||||||||||||||||||||
| Dimensions | 6.7 inch x 6.7 inch (17 cm x 17 cm) | ||||||||||||||||||||||||||||||||||||||||
| Internal Ports / Inputs | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 headers supports additional 2 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 header 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x 12-1 pin Front Panel Audio header (AAFP) 1 x 10-1 pin System Panel header 1 x Speaker header 1 x Thermal Sensor header | ||||||||||||||||||||||||||||||||||||||||
| Memory | 2 x DIMM, Max. 64GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function | ||||||||||||||||||||||||||||||||||||||||
| Memory Type | DDR5 DIMM | ||||||||||||||||||||||||||||||||||||||||
| Memory Volume | 64GB | ||||||||||||||||||||||||||||||||||||||||
| Socket | AM5 | ||||||||||||||||||||||||||||||||||||||||
| Storage | Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports* | ||||||||||||||||||||||||||||||||||||||||
| Wired Communication | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard | ||||||||||||||||||||||||||||||||||||||||
| Wireless network | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.2** * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. | ||||||||||||||||||||||||||||||||||||||||

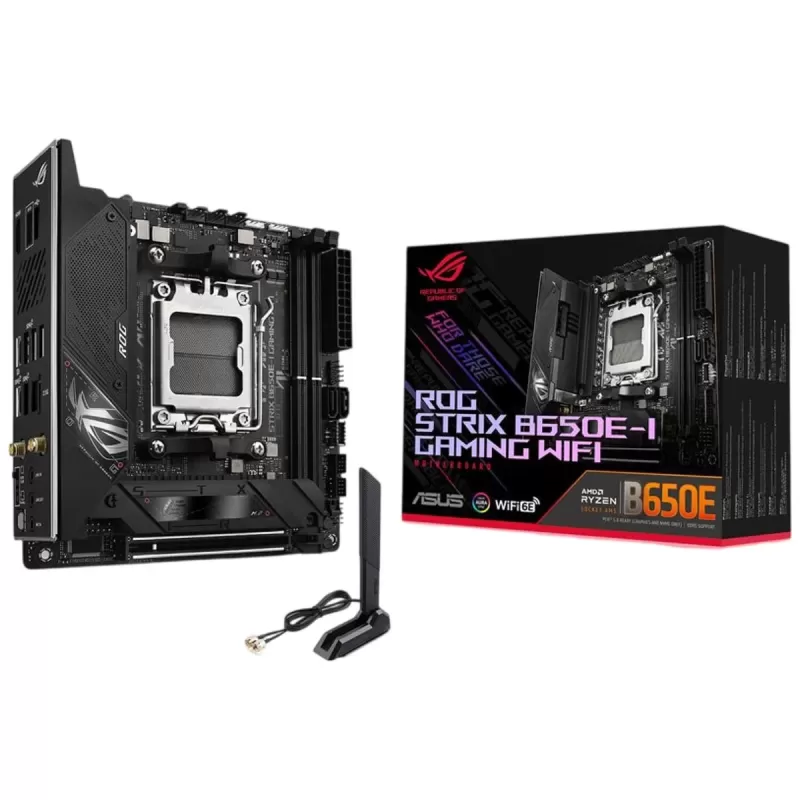

| What'S In The Box? | Cables 2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable 1 x Panel cable Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 Bracket 1 x M.2 SSD screw package 1 x M.2 Q-Latch package for M.2 backplate 1 x ROG key chain 1 x ROG Strix sticker 1 x ROG Strix thank you card 1 x Rubber Package for M.2 backplate Documentation 1 x User guide | ||||||||||||||||||||||||||||||||||||||||
| Link To The Manufacturer'S Website | |||||||||||||||||||||||||||||||||||||||||
| Product Link | Motherboard Asus ROG STRIX B650E-I GAMING WIFI DDR5 DIMM AM5 | ||||||||||||||||||||||||||||||||||||||||
| Matching SKUs | ID:~52345~, NEW, OC: 33674, VSL: 90MB1BI0-M0EAY0, CD: 90MB1BI0-M0EAY0, MPN: 90MB1BI0-M0EAY0, MPN2: 90MB1BI0-M0EAY0, EAN: 4711081957881 | ||||||||||||||||||||||||||||||||||||||||
