In the importer's stock
| Specification | |||||||||||||||||||||||||||||||||||||||||

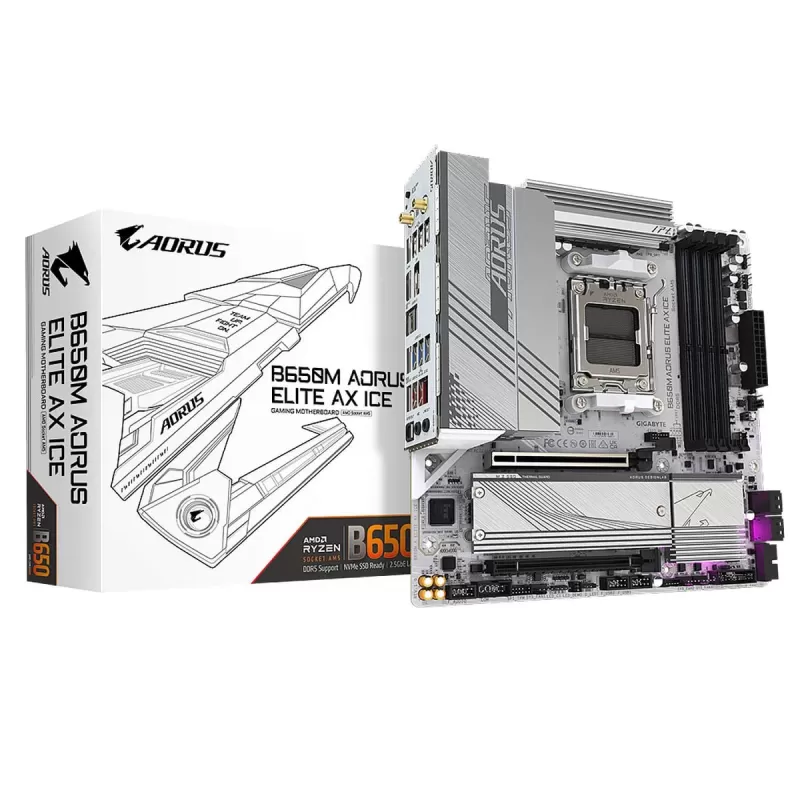

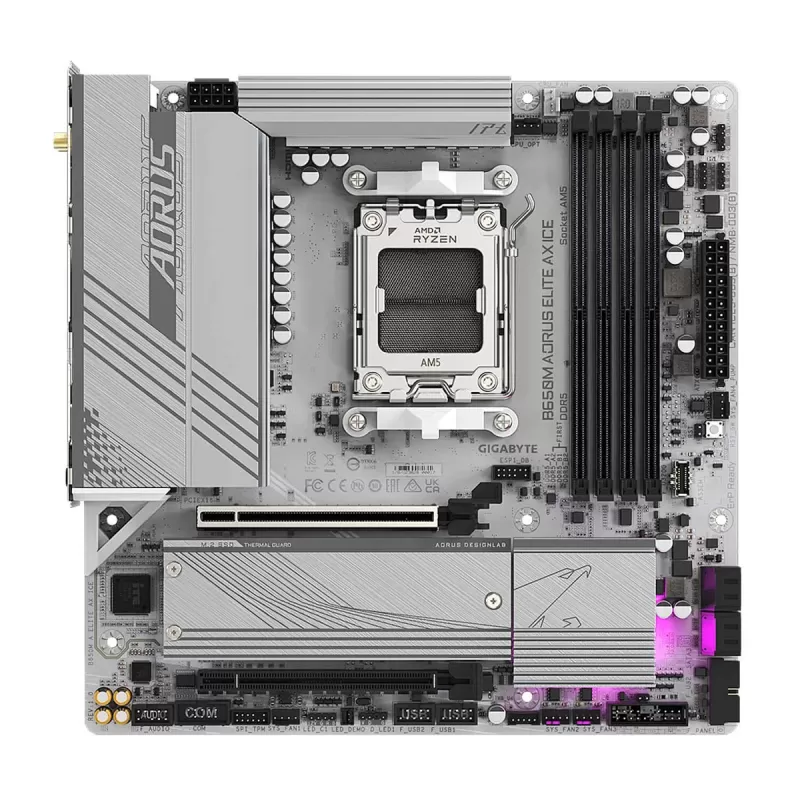

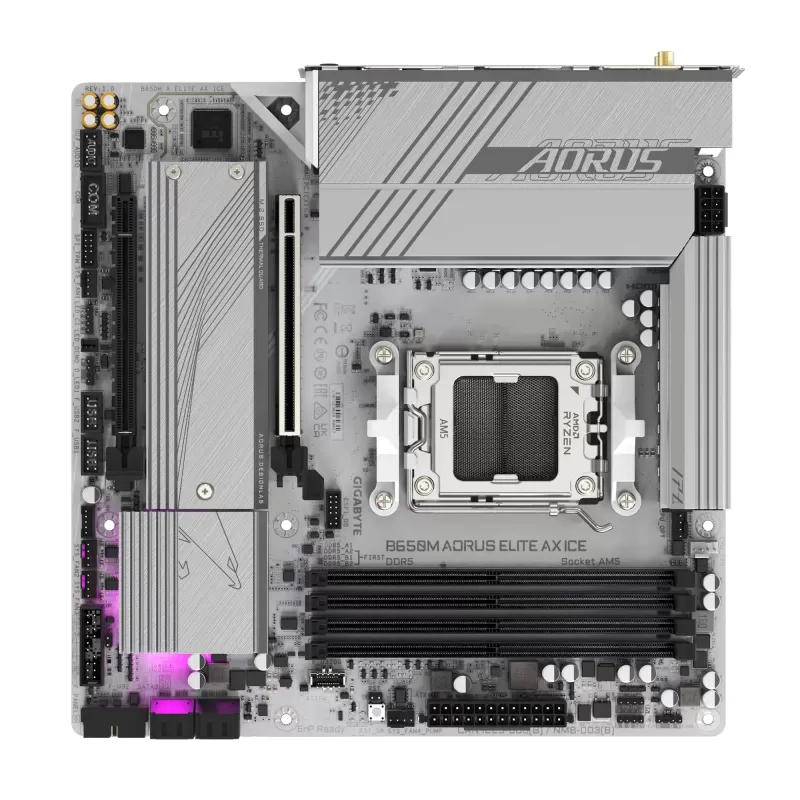

| Revew | Gigabyte B650M AORUS ELITE AX ICE MotherboardThe Gigabyte B650M AORUS ELITE AX ICE is a white AORUS-series Micro ATX motherboard for AMD Ryzen 7000, 8000 and 9000 processors in the AM5 socket, built on the AMD B650 chipset. A 12+2+2 phase digital VRM and a heatsink with a 6 mm heatpipe let it run powerful CPUs in a compact case. The board offers a PCIe 5.0 x4 M.2 slot for next-generation SSDs, a second PCIe 4.0 M.2 slot, Wi-Fi 6E with Bluetooth 5.3, 2.5GbE networking and an internal header for a front USB-C port at USB 3.2 Gen 2x2. The rear panel carries 12 USB ports and a Q-Flash Plus button.
Key features
Specifications
| ||||||||||||||||||||||||||||||||||||||||
| Review | |||||||||||||||||||||||||||||||||||||||||
| Warranty | 3 years | ||||||||||||||||||||||||||||||||||||||||
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer Part Number | B650M AORUS ELITE AX ICE | ||||||||||||||||||||||||||||||||||||||||
| Model | B650M AORUS ELITE AX ICE | ||||||||||||||||||||||||||||||||||||||||
| Color | white | ||||||||||||||||||||||||||||||||||||||||
| Condition | New | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4719331859336 | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer | Gigabyte | ||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out | ||||||||||||||||||||||||||||||||||||||||

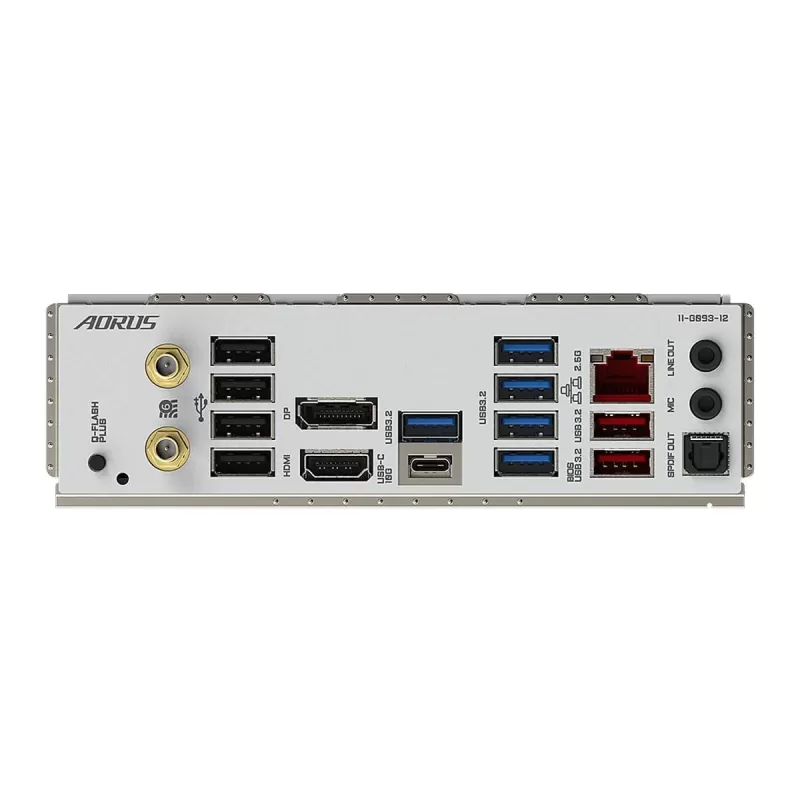

| Back Panel Connectors | 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R)jk 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks | ||||||||||||||||||||||||||||||||||||||||
| Chipset | B650 | ||||||||||||||||||||||||||||||||||||||||
| Compatibility for computer assembly | AMD Motherboards | ||||||||||||||||||||||||||||||||||||||||
| Configuration | Micro ATX | ||||||||||||||||||||||||||||||||||||||||
| importer | official | ||||||||||||||||||||||||||||||||||||||||
| Internal Ports / Inputs | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper | ||||||||||||||||||||||||||||||||||||||||
| Memory | upport for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) | ||||||||||||||||||||||||||||||||||||||||
| Memory Type | DDR5 DIMM | ||||||||||||||||||||||||||||||||||||||||
| Memory Volume | 192GB | ||||||||||||||||||||||||||||||||||||||||
| Socket | AM5 | ||||||||||||||||||||||||||||||||||||||||
| Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 (Note) x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices | ||||||||||||||||||||||||||||||||||||||||
| Wired Communication | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | ||||||||||||||||||||||||||||||||||||||||
| Wireless network | Realtek® Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) | ||||||||||||||||||||||||||||||||||||||||
| Link To The Manufacturer'S Website | |||||||||||||||||||||||||||||||||||||||||
| Product Link | Motherboard Gigabyte B650M AORUS ELITE AX ICE DDR5 DIMM AM5 | ||||||||||||||||||||||||||||||||||||||||
| Matching SKUs | ID:~58317~, New, OC: 36779, CD: GB650MAORUSELITEAXICE, MPN: B650M AORUS ELITE AX ICE, EAN: 4719331859336 | ||||||||||||||||||||||||||||||||||||||||
