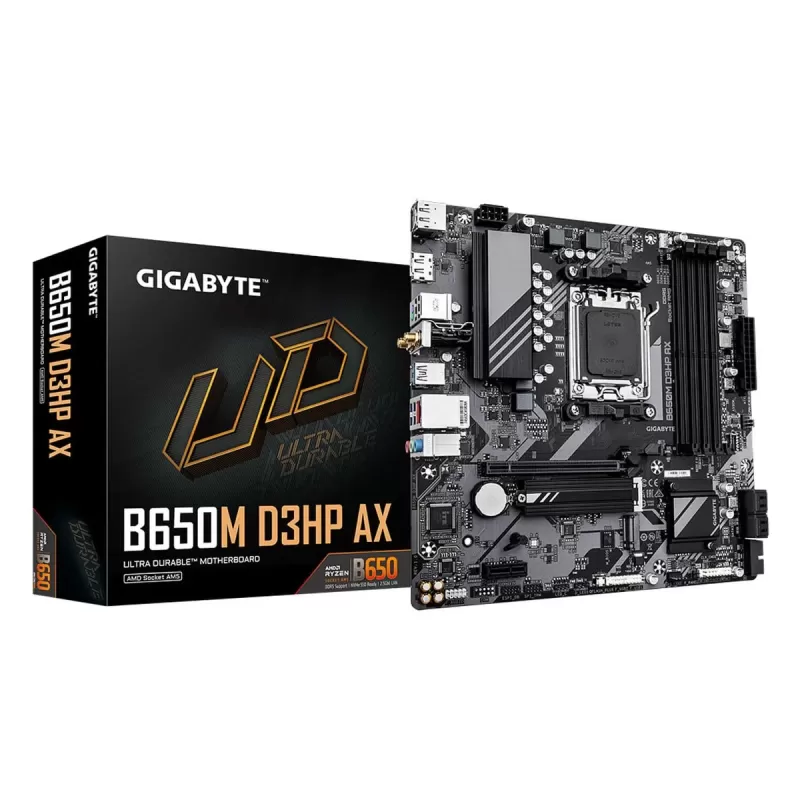

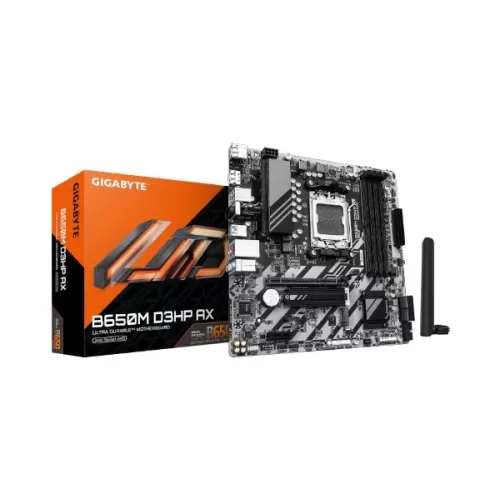

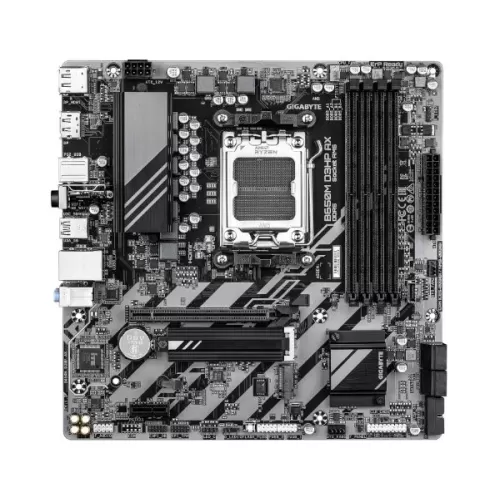

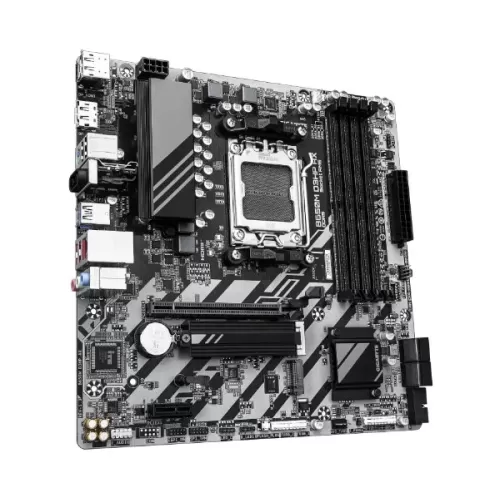

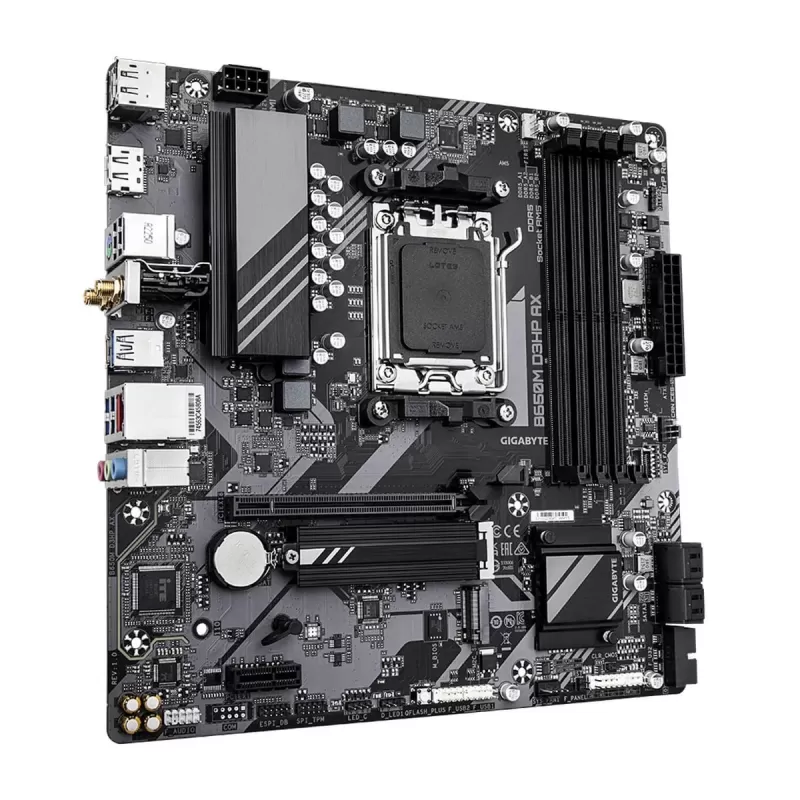

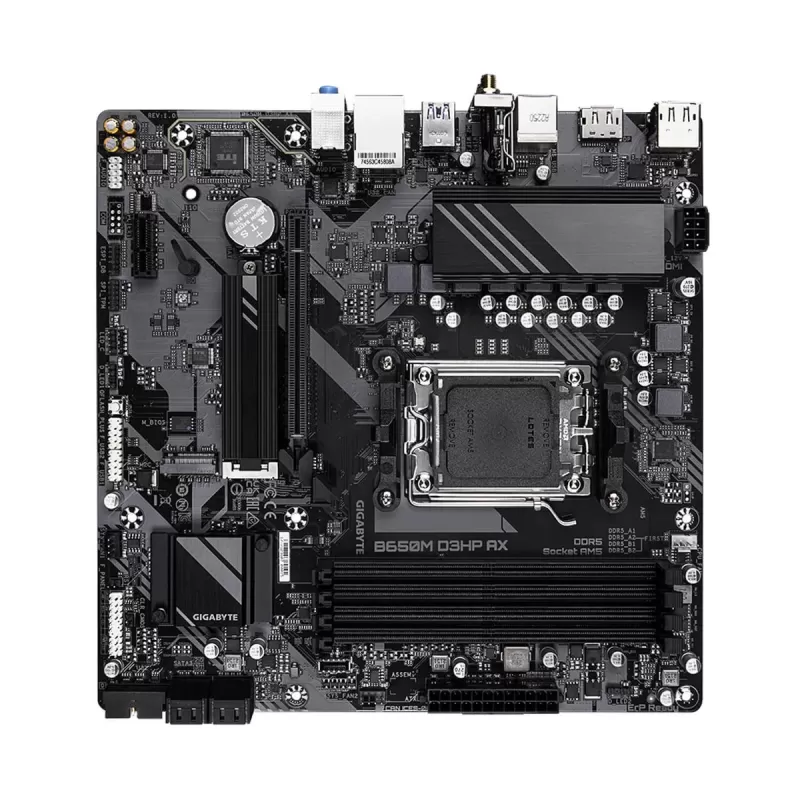

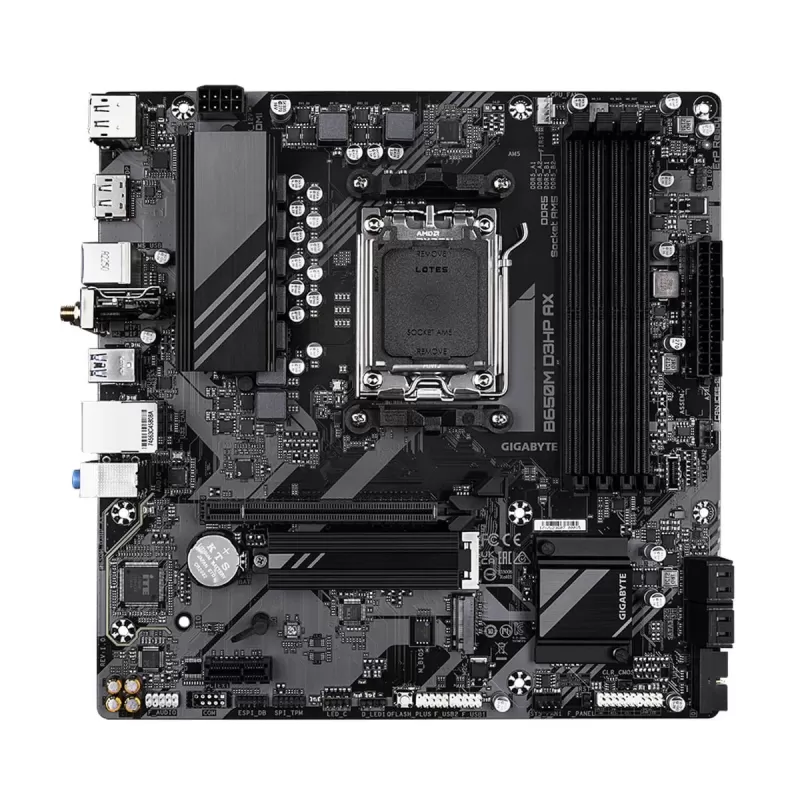

| Revew | Gigabyte B650M D3HP AX MotherboardThe Gigabyte B650M D3HP AX is a Micro ATX motherboard for socket AM5 from the manufacturer's Ultra Durable series, based on the AMD B650 chipset. It supports AMD Ryzen 7000, 8000 and 9000 series processors and DDR5 memory, and suits a modern gaming or work PC. The board has four DDR5 slots for up to 256GB of memory, a PCIe 4.0 x16 slot with EZ-Latch, two PCIe 4.0 x4 M.2 slots, Realtek 2.5GbE and Wi-Fi 6E with Bluetooth 5.3. The rear panel offers two DisplayPort outputs, one HDMI output and a USB-C port.
Key features
Specifications
In the box
| ||||||||||||||||||||||||||||||||||||||||
| Review | |||||||||||||||||||||||||||||||||||||||||
| Warranty | 3 years | ||||||||||||||||||||||||||||||||||||||||
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer Part Number | B650M D3HP AX, B650M D3HP AX 1.3 | ||||||||||||||||||||||||||||||||||||||||
| Model | B650M D3HP AX | ||||||||||||||||||||||||||||||||||||||||
| Condition | New | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4719331859510 | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer | Gigabyte | ||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | ||||||||||||||||||||||||||||||||||||||||
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 2 x DisplayPorts 1 x RJ-45 port 3 x audio jacks | ||||||||||||||||||||||||||||||||||||||||
| Chipset | B650 | ||||||||||||||||||||||||||||||||||||||||
| Compatibility for computer assembly | AMD Motherboards | ||||||||||||||||||||||||||||||||||||||||
| Configuration | Micro ATX | ||||||||||||||||||||||||||||||||||||||||
| importer | official | ||||||||||||||||||||||||||||||||||||||||
| Internal Ports / Inputs | 1 x 24-pin ATX main power connector | ||||||||||||||||||||||||||||||||||||||||
| Memory | Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | ||||||||||||||||||||||||||||||||||||||||
| Memory Type | DDR5 | ||||||||||||||||||||||||||||||||||||||||
| Memory Volume | 192GB | ||||||||||||||||||||||||||||||||||||||||
| Socket | AM5 | ||||||||||||||||||||||||||||||||||||||||
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices | ||||||||||||||||||||||||||||||||||||||||
| Wired Communication | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | ||||||||||||||||||||||||||||||||||||||||
| Wireless network | Realtek® Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless (Actual data rate may vary depending on environment and equipment.) | ||||||||||||||||||||||||||||||||||||||||
| Link To The Manufacturer'S Website | |||||||||||||||||||||||||||||||||||||||||
| Product Link | Motherboard Gigabyte B650M D3HP AX DDR5 AM5 | ||||||||||||||||||||||||||||||||||||||||
| Matching SKUs | ID:~63005~, NEW, OC: 37239, ML: 95B65032, CD: GB650MD3HPAX, BTC: 100648-B650MD3HPW, MPN: B650M D3HP AX, MPN2: B650M D3HP AX 1.3, EAN: 4719331859510 | ||||||||||||||||||||||||||||||||||||||||
