Motherboard Gigabyte B840M GAMING PLUS WiFi6E DDR5 AM5

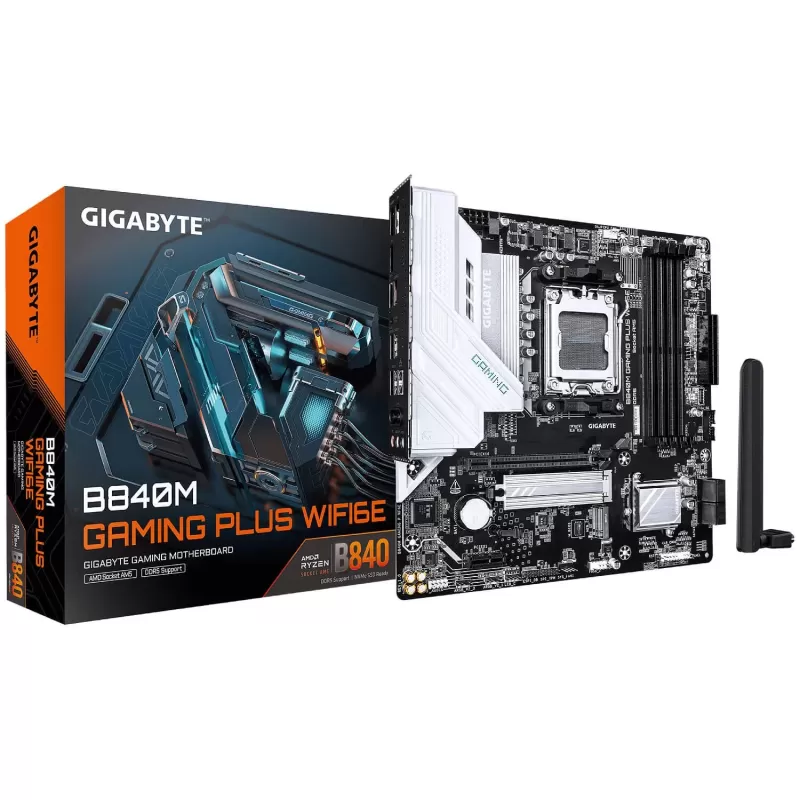

Gigabyte B840M GAMING PLUS WiFi6E Motherboard - AM5, Micro ATX

The Gigabyte B840M GAMING PLUS WiFi6E is a Micro ATX board on the B840 chipset, geared toward gaming builds on the AM5 platform with Ryzen 7000, 8000 and 9000 series processors. It offers four-slot DDR5 memory, quick storage and up-to-date wireless connectivity.

Platform & chipset

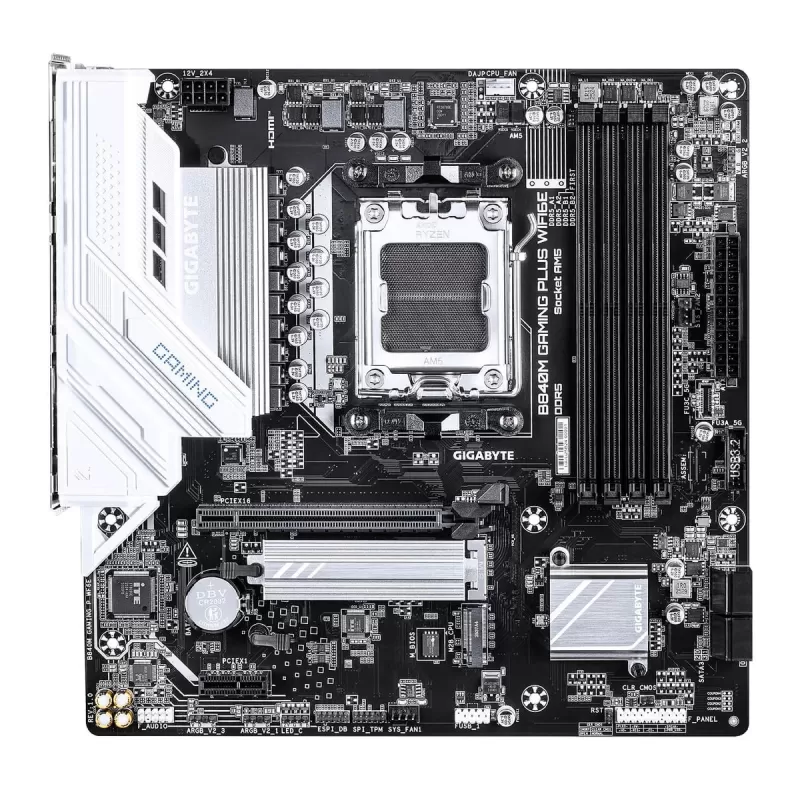

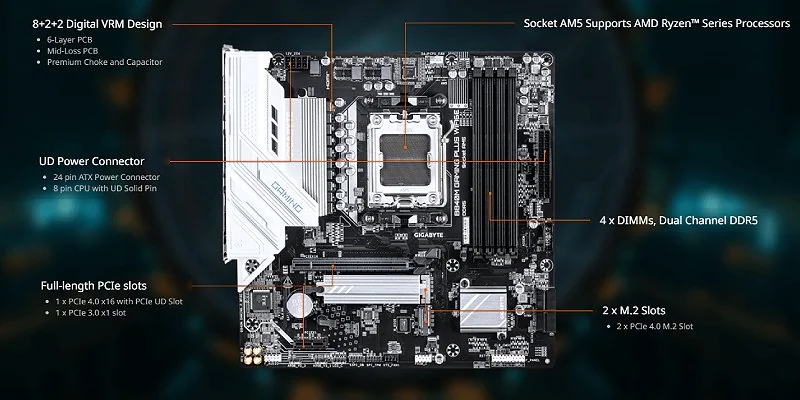

The board's core is the AMD AM5 socket with the B840 chipset, supporting Ryzen processors from the 7000, 8000 and 9000 generations. A digital 8+2+2 phase power design provides a stable base under load, and X3D Turbo Mode is intended to maximize the gaming experience on the current generation.

Memory & expansion

Memory is handled through four DIMM slots in a dual-channel DDR5 arrangement with AMD EXPO profiles, and the specs indicate very high frequencies are achievable through tuning. On the storage side there are two M.2 slots, one of them a PCIe 4.0 x4 interface for a fast NVMe drive, with EZ-Latch quick-release on the expansion slots.

Power, cooling & connectivity

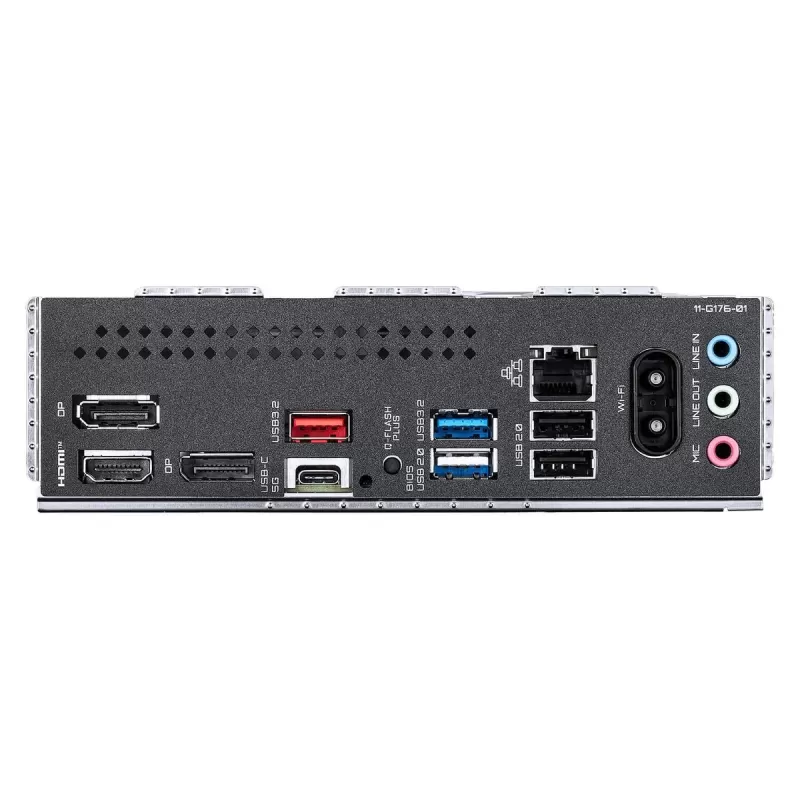

Cooling relies on VRM Thermal Armor Advanced and an M.2 Thermal Guard to keep temperatures in check. Networking offers a GbE LAN alongside Wi-Fi 6E, with the WIFI EZ-Plug design easing antenna connection. The rear I/O includes USB 2.0, USB 3.2 and USB Type-C, together with an HDMI output and two DisplayPort outputs.

• Socket: AMD AM5
• Chipset: B840
• Form factor: Micro ATX
• Memory: dual-channel DDR5, four slots, EXPO support
• Storage: two M.2 slots (incl. PCIe 4.0 x4), SATA3
• Networking: GbE LAN, Wi-Fi 6E
• Connectivity: USB Type-C, HDMI, dual DisplayPort
