Motherboard Gigabyte B760 DS3H AX DDR5 LGA1700 - official importer

Motherboard Gigabyte B760 DS3H AX DDR5 LGA1700 - official importer
Motherboard Gigabyte B760 DS3H AX DDR5 LGA1700 - official importer
Motherboard Gigabyte B760 DS3H AX DDR5 LGA1700 - official importer
Motherboard Gigabyte B760 DS3H AX DDR5 LGA1700 - official importer
Motherboard Gigabyte B760 DS3H AX DDR5 LGA1700 - official importer
In the importer's stock
Motherboard Gigabyte B760 DS3H AX DDR5 LGA1700 - official importer
Motherboard Gigabyte B760 DS3H AX DDR5 LGA1700 - official importer
Motherboard Gigabyte B760 DS3H AX DDR5 LGA1700 - official importer
Motherboard Gigabyte B760 DS3H AX DDR5 LGA1700 - official importer
Motherboard Gigabyte B760 DS3H AX DDR5 LGA1700 - official importer

* The picture is for illustration only

Short review: ATX LGA1700 motherboard with the Intel B760 chipset: four DDR5 slots up to 7600 MT/s (OC), two PCIe 4.0 M.2 slots, Wi-Fi 6E and a 20Gb/s USB-C port., Manufacturer: Gigabyte, Socket: LGA1700, Chipset: B760, Memory Volume: 192GB, Memory Type: DDR5, Condition: New, SKU: 52348
Motherboard Gigabyte B760 DS3H AX DDR5 LGA1700 - official importer

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

*Except for cases of abnormal size/weight

    Payment options:

    • Up to 6 interest-free Credit Card (7-36 with interest)  payments through a website, phone, or Ashdod branch
    • Bank transfer (Deferred payment not accepted), Bit, PayBox
    • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
    • PayPal - Only Shipments With a Tracking Number
    • Наличие: In stock at supplier: delivery to branch within: 4 business days
    • Print:
    • Brand: Gigabyte
    • SKU: 52348
    • MPN: B760 DS3H AX
    Gigabyte Gigabyte
    ₪765
    Add to Cart
    Buy Now!
    Add to Wish List Compare this Product
    Send us a question on WhatsApp
    Send a question about this product
    Specification
    Revew

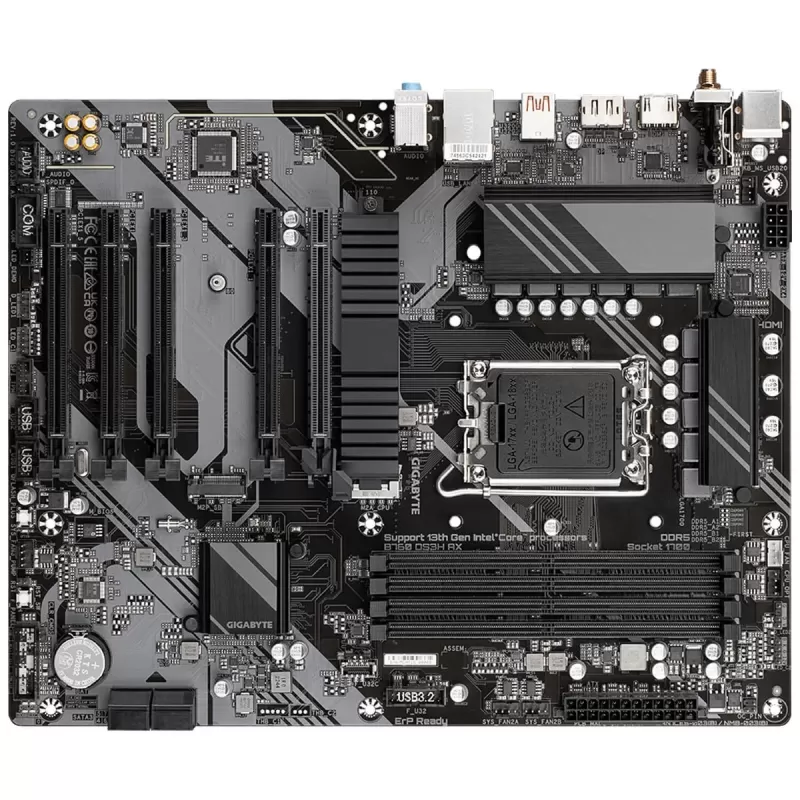

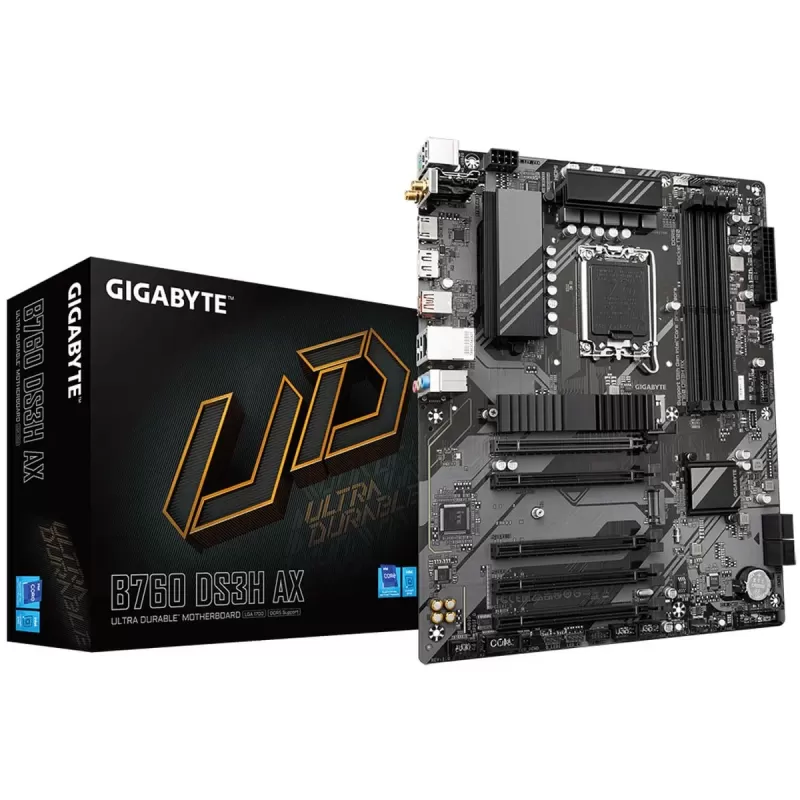

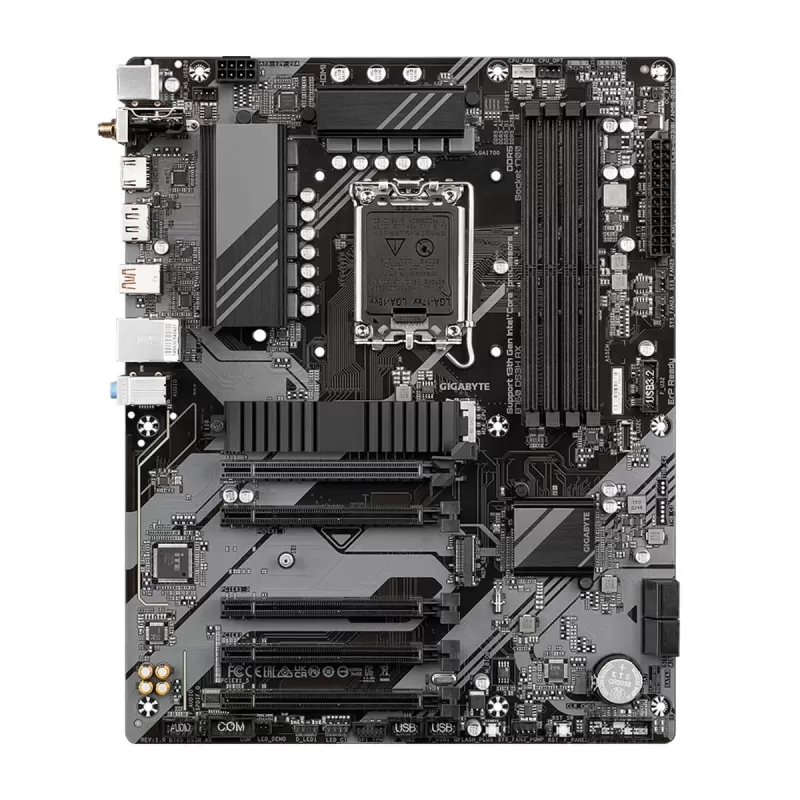

    Gigabyte B760 DS3H AX Motherboard

    The Gigabyte B760 DS3H AX is an ATX motherboard for the LGA1700 socket, built for 12th, 13th and 14th Gen Intel Core processors as well as Pentium Gold and Celeron. It is based on the Intel B760 chipset and supports DDR5 memory in four slots, up to 256GB and up to 7600 MT/s (OC), with XMP profiles.

    An 8+2+1 hybrid digital VRM and a six-layer PCIe 4.0 ready PCB power the CPU reliably. The board offers a PCIe 4.0 x16 slot, two PCIe 4.0 x4 M.2 slots, GbE LAN, Wi-Fi 6E with Bluetooth 5.3 and a 20Gb/s USB-C port on the rear panel.

    Gigabyte B760 DS3H AX Motherboard

    Key features

    • 8+2+1 power design - A hybrid digital VRM with low RDS(on) MOSFETs, premium chokes and capacitors and a solid 8-pin CPU connector deliver stable power to Intel processors.
    • Full PCIe 4.0 - A PCIe 4.0 x16 slot for the graphics card with PCIe EZ-Latch, two PCIe 4.0 x4 M.2 slots (one from the CPU, one from the chipset) and four PCIe 3.0 x1 slots for expansion cards.
    • DDR5 memory - Four dual-channel DDR5 slots, up to 256GB and up to 7600 MT/s (OC), with XMP profile support.
    • Network and wireless - Realtek GbE LAN and 2.4/5/6GHz Wi-Fi 6E at up to 2.4Gbps with Bluetooth 5.3 and two 2T2R SMA antenna connectors. The Wi-Fi module varies by board revision (Intel AX210, Intel AX211 or Realtek RTL8852CE).
    • 20Gb/s USB-C - On the rear a USB 3.2 Gen 2x2 USB-C, a USB 3.2 Gen 2 Type-A and four USB 2.0 ports; inside a front USB-C header, a USB 3.2 Gen 1 header and two USB 2.0 headers.
    • Audio, cooling and lighting - 7.1-channel audio with Audio Noise Guard, high-end audio capacitors and an S/PDIF header, Smart Fan 6 with six fan headers, RGB FUSION with two ARGB and two RGB headers, plus Multi-key and Q-Flash Plus buttons.

    Specifications

    ManufacturerGigabyte
    ModelB760 DS3H AX (Rev. 1.x)
    SocketIntel LGA1700
    Supported CPUs12th, 13th and 14th Gen Intel Core, Pentium Gold, Celeron
    ChipsetIntel B760
    Memory4 x DDR5 DIMM, dual channel, up to 256GB, up to 7600 MT/s (OC), XMP
    Expansion slotsPCIe 4.0 x16, 4 x PCIe 3.0 x1 (in x16-length slots)
    Storage2 x M.2 PCIe 4.0 x4, 4 x SATA 6Gb/s, RAID 0/1/5/10 (SATA)
    VRM8+2+1 hybrid digital
    LANRealtek GbE
    WirelessWi-Fi 6E (2T2R), Bluetooth 5.3
    AudioRealtek HD Audio, 7.1 channels, S/PDIF header
    Video outputsHDMI 2.1, DisplayPort 1.2
    Rear USBUSB-C 3.2 Gen 2x2, USB-A 3.2 Gen 2, 4 x USB 2.0
    Internal USB headersUSB-C 3.2 Gen 1, USB 3.2 Gen 1, 2 x USB 2.0
    Power connectors24-pin ATX, 8-pin CPU
    Fan headers6 (2 CPU, 4 system), two also support a pump
    Lighting2 x ARGB, 2 x RGB
    Form factorATX, 30.5 x 24.4 cm
    Operating systemWindows 11 and Windows 10, 64-bit
    Review
    Warranty3 years
    Service During The Warranty Period (Who To Contact)COMPMASTER Lab

    073-2241747

    Gei Oni 6, Tet Shoping Center, Ashdod

    Manufacturer Part NumberB760 DS3H AX
    ModelB760 DS3H AX
    ConditionNew
    EAN4719331852757
    ManufacturerGigabyte
    Audio
    1. Realtek®&Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    4. Support for S/PDIF Out

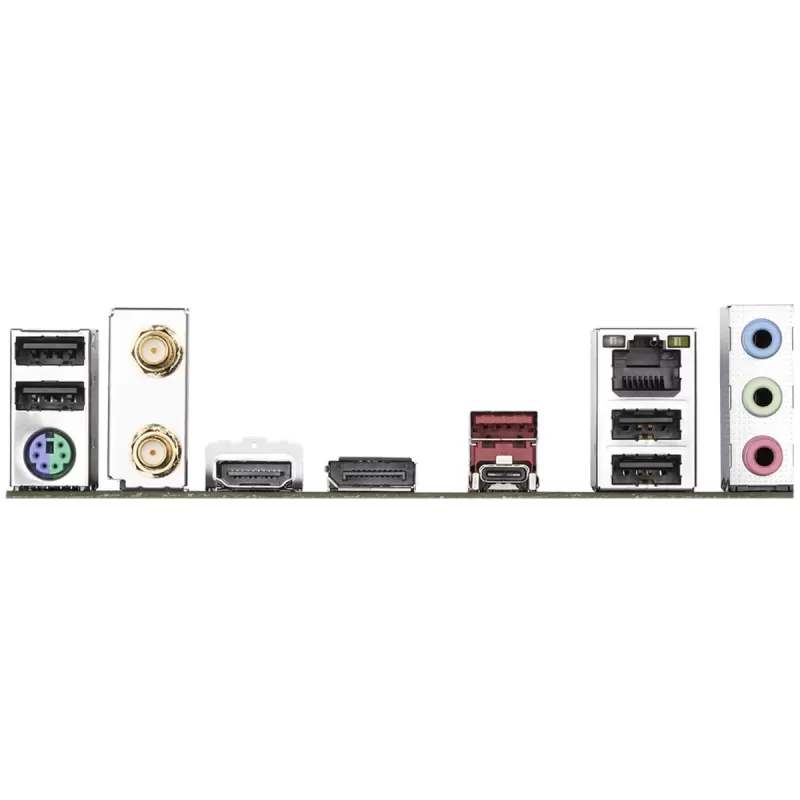

    Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 2 x SMA antenna connectors (2T2R)
    3. 1 x USB Type-C®&port, with USB 3.2 Gen 2x2 support
    4. 1 x USB 3.2 Gen 2 Type-A port (red)
    5. 4 x USB 2.0/1.1 ports
    6. 1 x HDMI port
    7. 1 x DisplayPort
    8. 1 x RJ-45 port
    9. 3 x audio jacks
    ChipsetB760
    Compatibility for computer assemblyIntel Motherboards
    ConfigurationATX
    Dimensions30.5cm x 24.4cm
    importerofficial
    Internal Ports / Inputs
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x CPU fan/water cooling pump header
    5. 3 x system fan headers
    6. 1 x system fan/water cooling pump header
    7. 2 x addressable LED strip headers
    8. 2 x RGB LED strip headers
    9. 2 x M.2 Socket 3 connectors
    10. 4 x SATA 6Gb/s connectors
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x S/PDIF Out header
    14. 1 x USB Type-C®&header, with USB 3.2 Gen 1 support
    15. 1 x USB 3.2 Gen 1 header
    16. 2 x USB 2.0/1.1 headers
    17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    18. 1 x serial port header
    19. 1 x Q-Flash Plus button
    20. 1 x reset button
    21. 1 x reset jumper
    22. 1 x Clear CMOS jumper
    Memory
    1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
    2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules

    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

    Memory TypeDDR5
    Memory Volume192GB
    SocketLGA1700
    Storage

    CPU:

    1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

    Chipset:

    1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    2. 4 x SATA 6Gb/s connectors

    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

    Wired Communication1. Realtek GbE LAN chip (1 Gbps/100 Mbps)
    Wireless network
    1. Intel®&Wi-Fi 6E AX210 (PCB rev. 1.0)
      1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
      2. BLUETOOTH 5.3
      3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      Intel®&Wi-Fi 6E AX211 (PCB rev. 1.1)
      1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
      2. BLUETOOTH 5.3
      3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      Realtek®&Wi-Fi 6E RTL8852CE (PCB rev. 1.2)
      1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
      2. BLUETOOTH 5.3
      3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      (Actual data rate may vary depending on environment and equipment.)
    Link To The Manufacturer'S Website

    Get full product information - Go to product page

    Product LinkMotherboard Gigabyte B760 DS3H AX DDR5 LGA1700
    Matching SKUsID:~52348~, NEW, OC: 26010, ML: 95B760566, ML2: 95B760565, CD: GB760DS3HAX, MPN: B760 DS3H AX, EAN: 4719331852757
