Motherboard Asus PRIME B840M-K DDR5 AM5

Motherboard Asus PRIME B840M-K

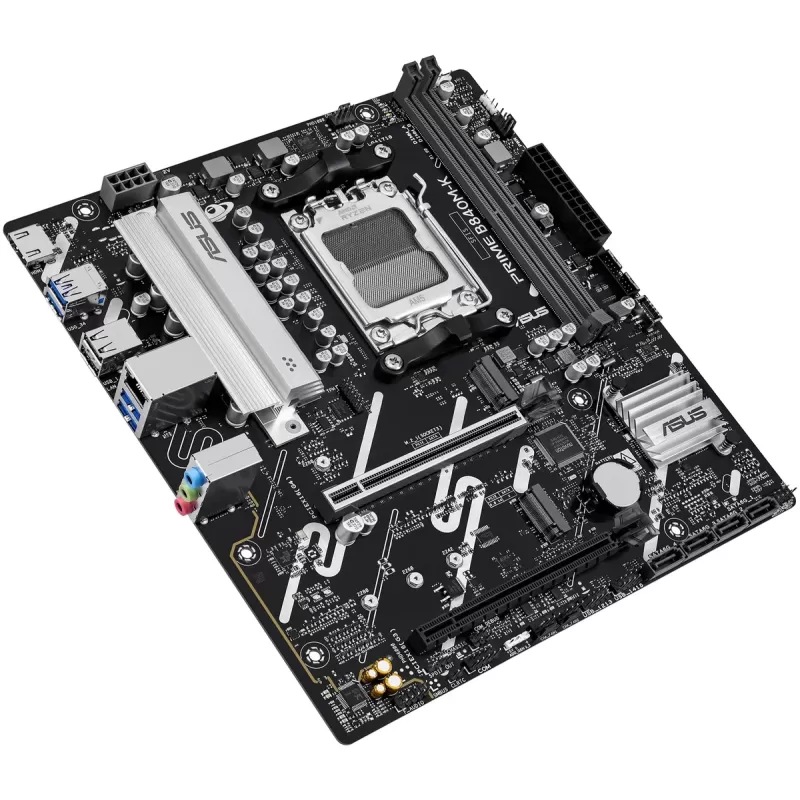

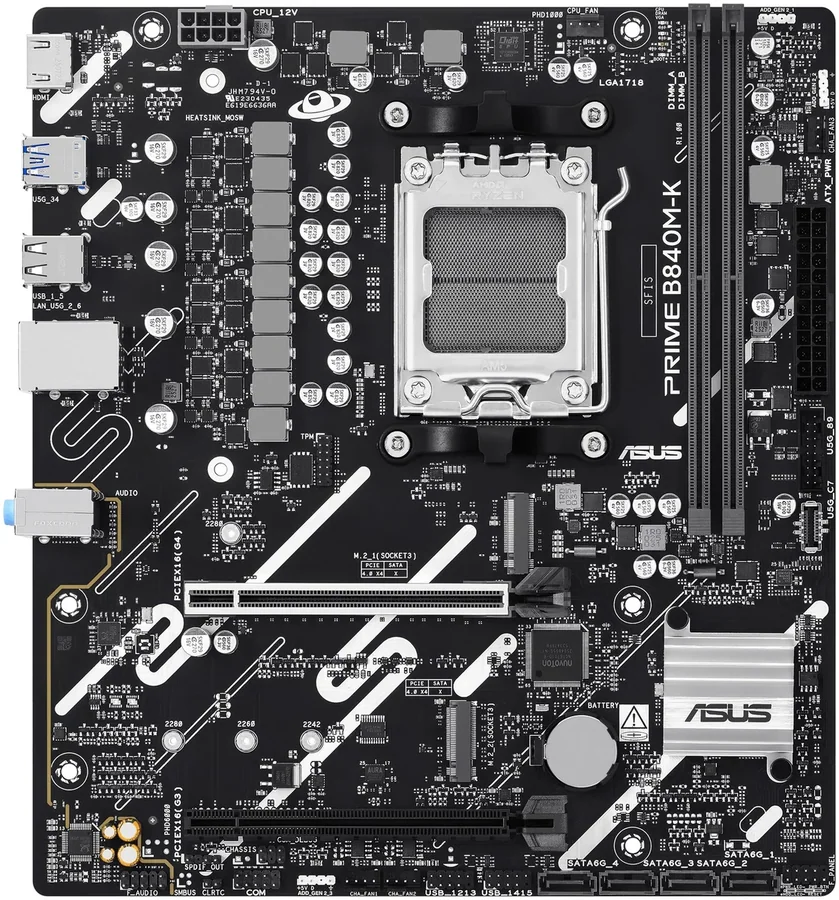

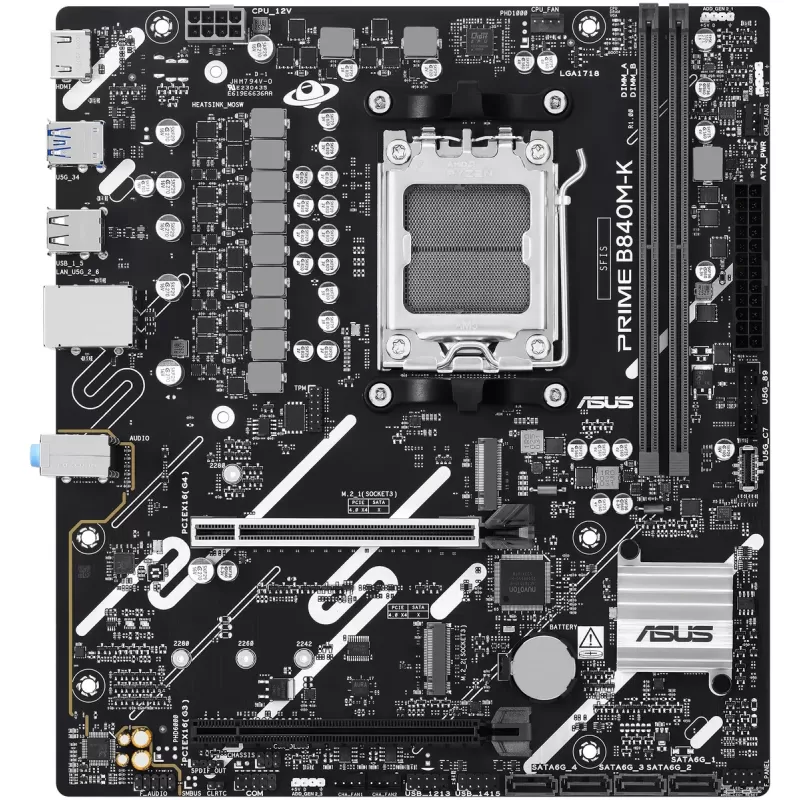

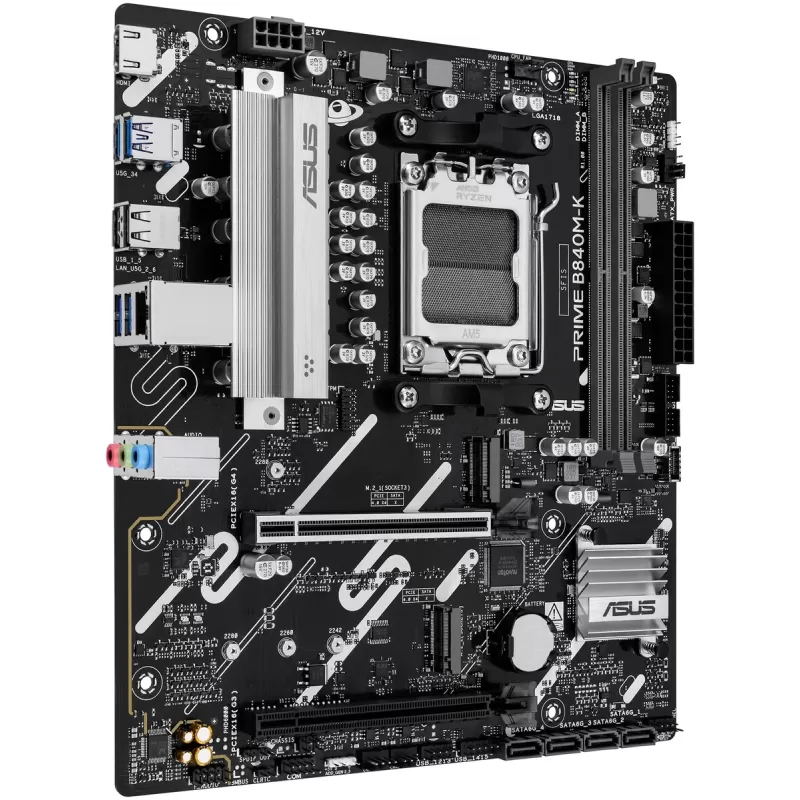

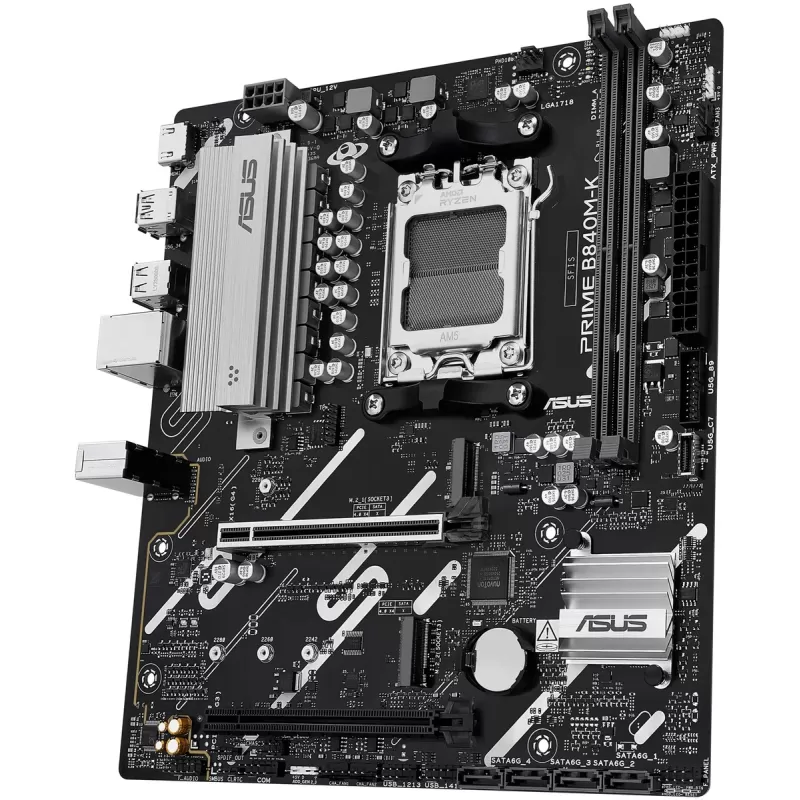

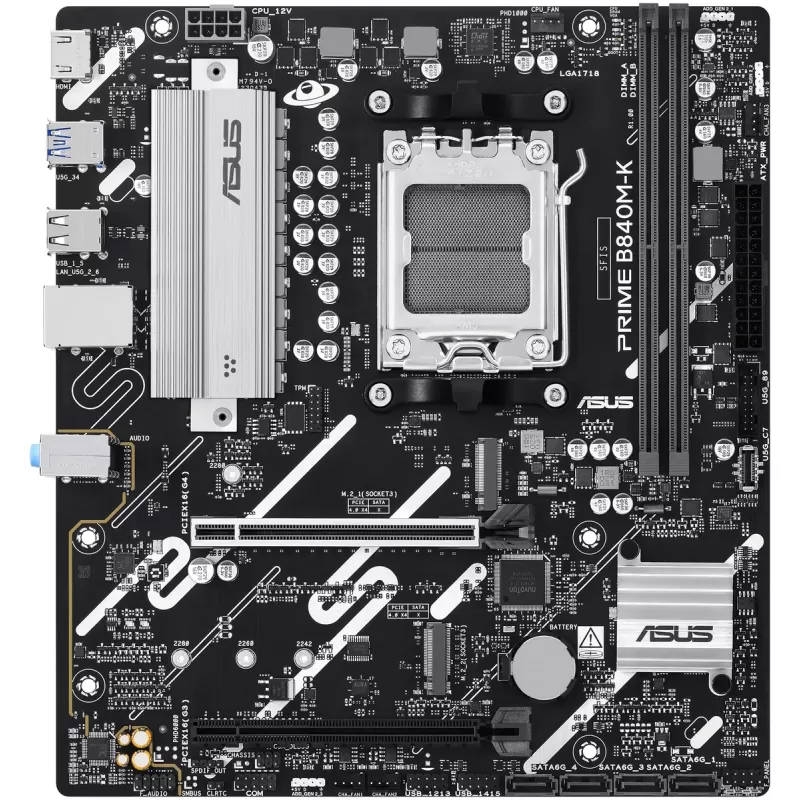

The Asus PRIME B840M-K is a Micro ATX motherboard for AMD socket AM5, based on the AMD B840 chipset and supporting Ryzen 9000, 8000 and 7000 processors up to 170W. It has two DDR5 slots for up to 128GB with AMD EXPO support and OC speeds of 8000+MT/s.

Storage is handled by two M.2 PCIe 4.0 x4 slots and four SATA ports, and networking by a Realtek 2.5Gb controller. An 8+2+1 digital power design, a VRM heatsink, Addressable RGB Gen 2 headers and Q-LED diagnostics make it a reliable base for a home or office PC.

Key features

• AM5 socket and B840 chipset - Supports AMD Ryzen 9000, 8000 and 7000 processors up to 170W, with an 8+2+1 digital power design.
• DDR5 memory - Two DIMM slots up to 128GB, dual channel, AMD EXPO and ASUS AEMP, up to 8000+MT/s OC.
• Fast storage - Two M.2 PCIe 4.0 x4 slots and four SATA 6Gb/s ports with RAID 0/1/5/10.

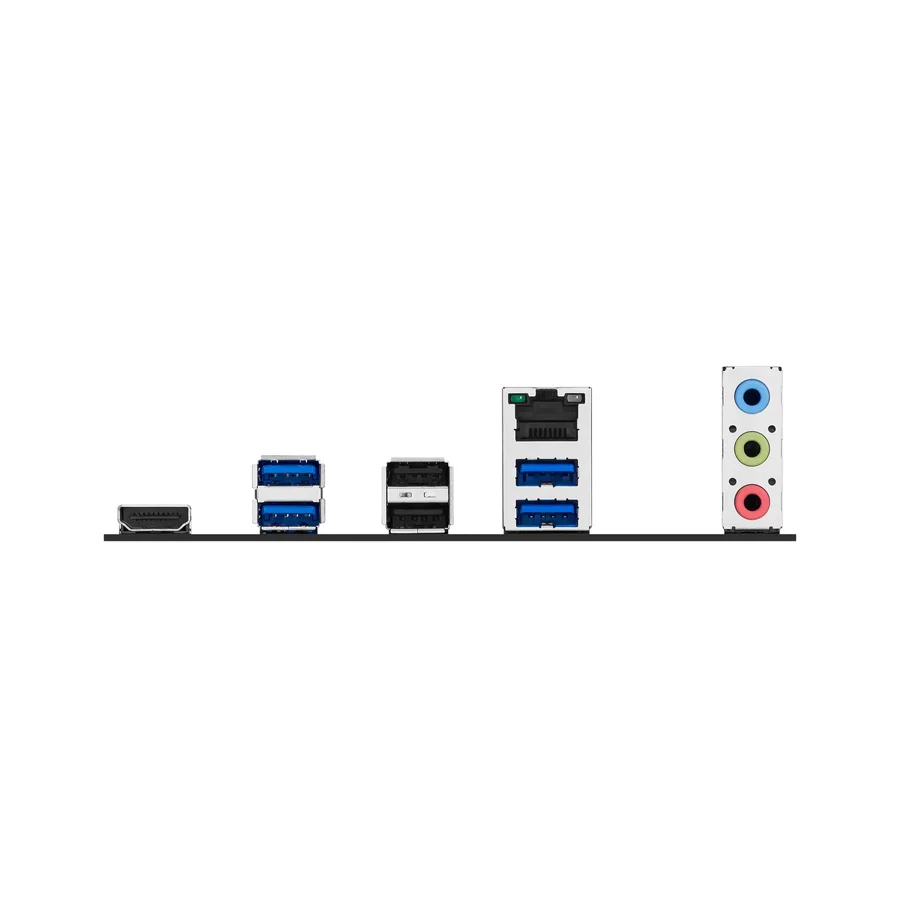

• Network and ports - Realtek 2.5Gb Ethernet, four USB 5Gbps and two USB 2.0 on the rear panel, HDMI and a front USB-C header.
• Easy build and service - Q-LED, Q-Slot, Q-DIMM, a stainless-steel back I/O and Addressable RGB Gen 2 headers with Aura Sync.
