Motherboard Gigabyte B550 X GAMING WIFI7 DDR4 AM4 - official importer

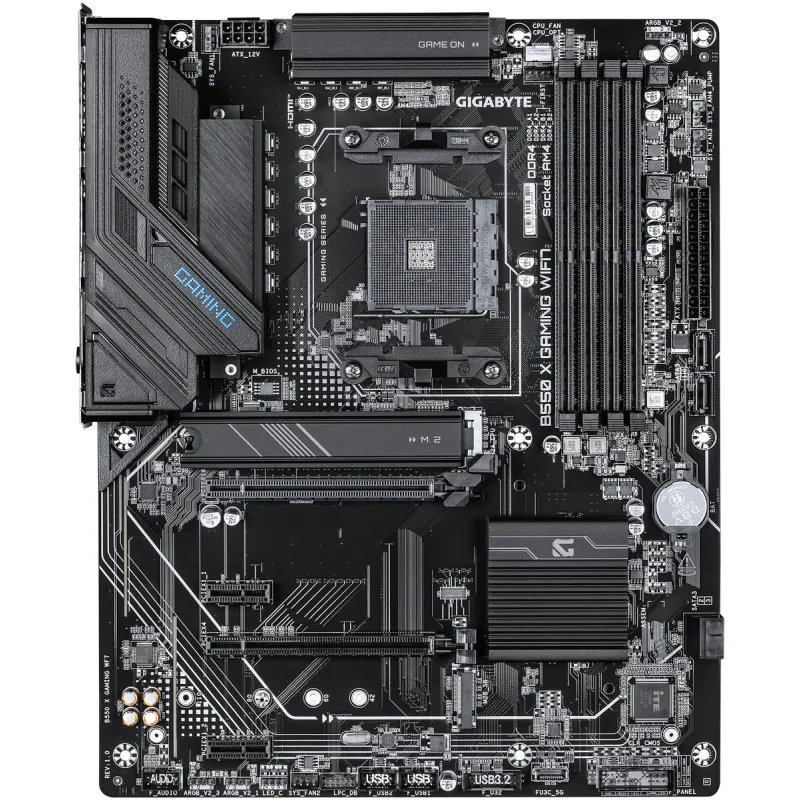

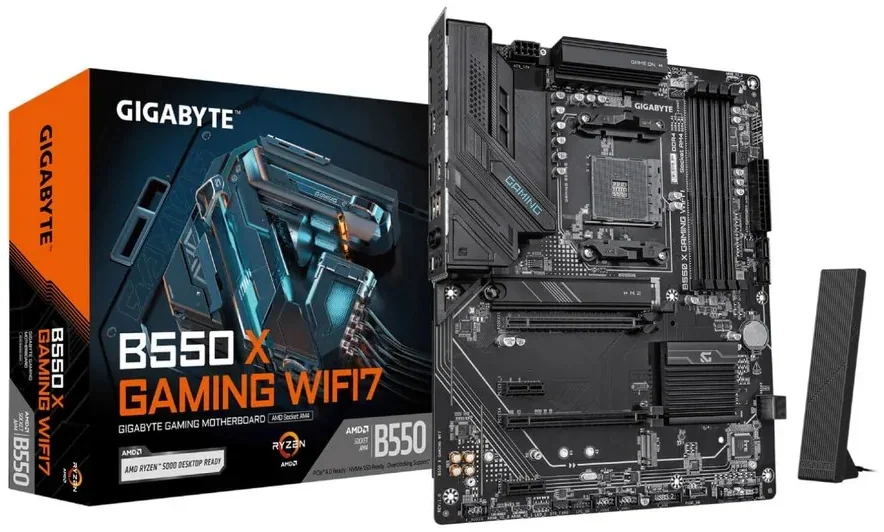

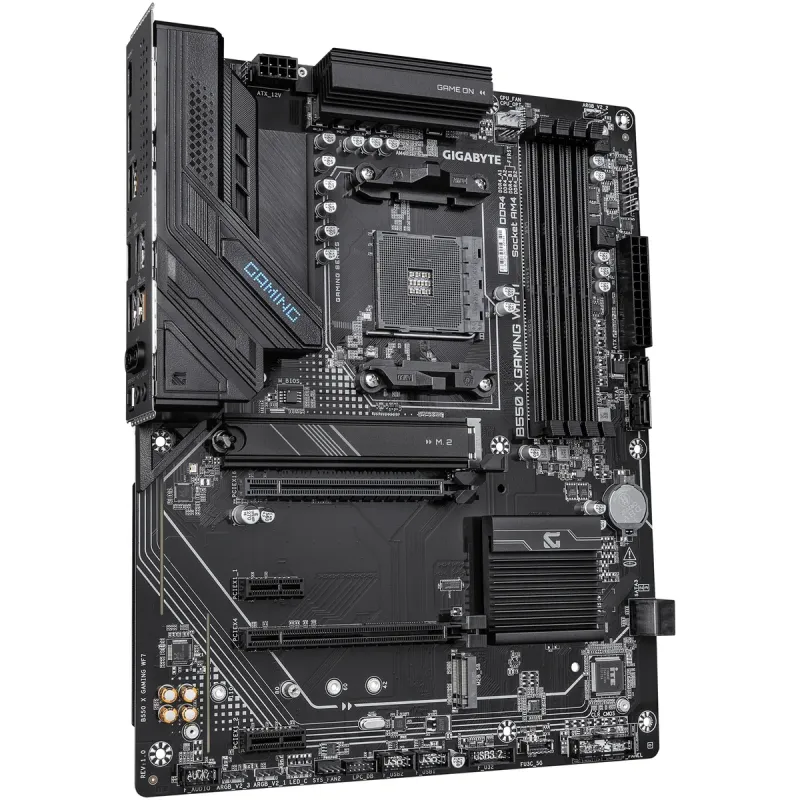

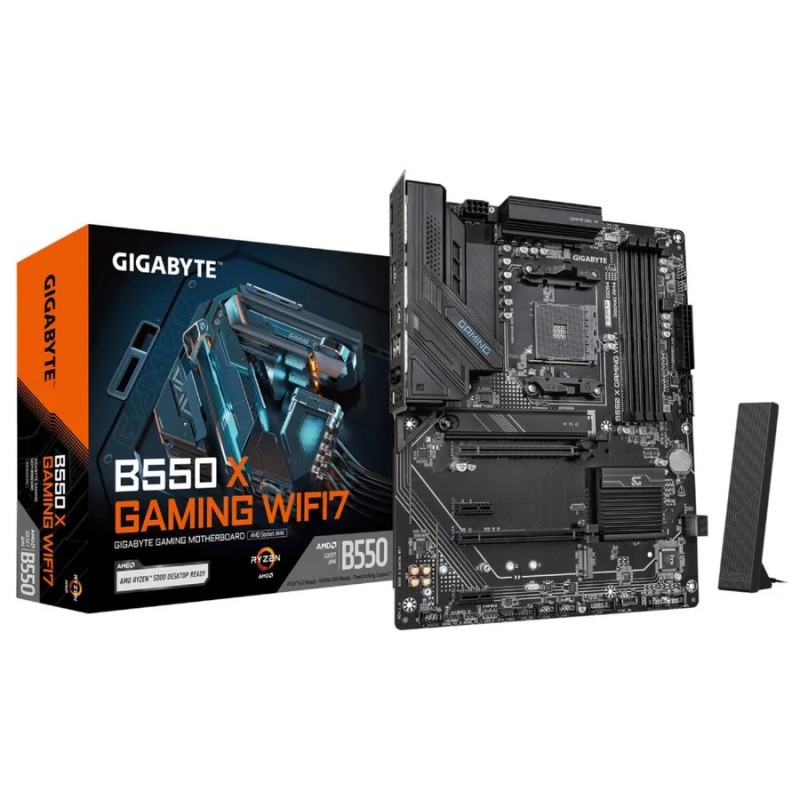

Gigabyte B550 X GAMING WIFI7 Motherboard

The Gigabyte B550 X GAMING WIFI7 is an ATX motherboard for Socket AM4 built on the AMD B550 chipset. It supports AMD Ryzen 5000, 4000 and 3000 series, including G-series models processors and suits a gaming or work PC build.

The board offers four DDR4 slots for up to 128GB, two M.2 slots, four SATA3 ports, a PCIe 4.0 x16 slot for the graphics card, a 2.5 Gigabit LAN port and a Wi-Fi 7 module with Bluetooth 5.4.

Key features

• AM4 platform with the B550 chipset - Support for AMD Ryzen 5000, 4000 and 3000 series processors including G-series models, and a PCIe 4.0 x16 slot for the graphics card.
• DDR4 memory up to 128GB - Four DIMM slots in dual-channel mode, up to 32GB per slot, for ECC and non-ECC memory at speeds up to 3200MHz.
• Two M.2 slots and four SATA3 - One M.2 slot runs PCIe 4.0 and the other PCIe 3.0, alongside four SATA3 ports and RAID 0, 1 and 10 support.
• 2.5 Gigabit LAN - A Realtek RTL8125 controller for wired networking faster than standard Gigabit.
• Wi-Fi 7 and Bluetooth 5.4 - A Realtek RTL8922AE module on the 2.4GHz, 5GHz and 6GHz bands. Wi-Fi 7 features require Windows 11.

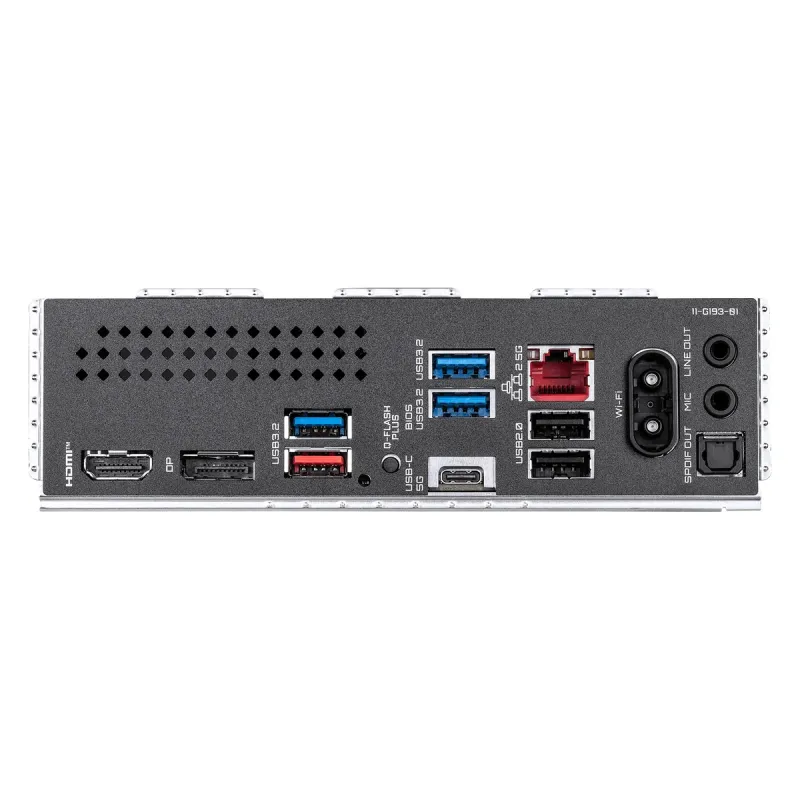

• Rear ports - HDMI 2.1, DisplayPort 1.4, a USB 3.2 Gen1 Type-C port, four Type-A USB ports, two USB 2.0 ports and an optical SPDIF output.
