| Specification | |

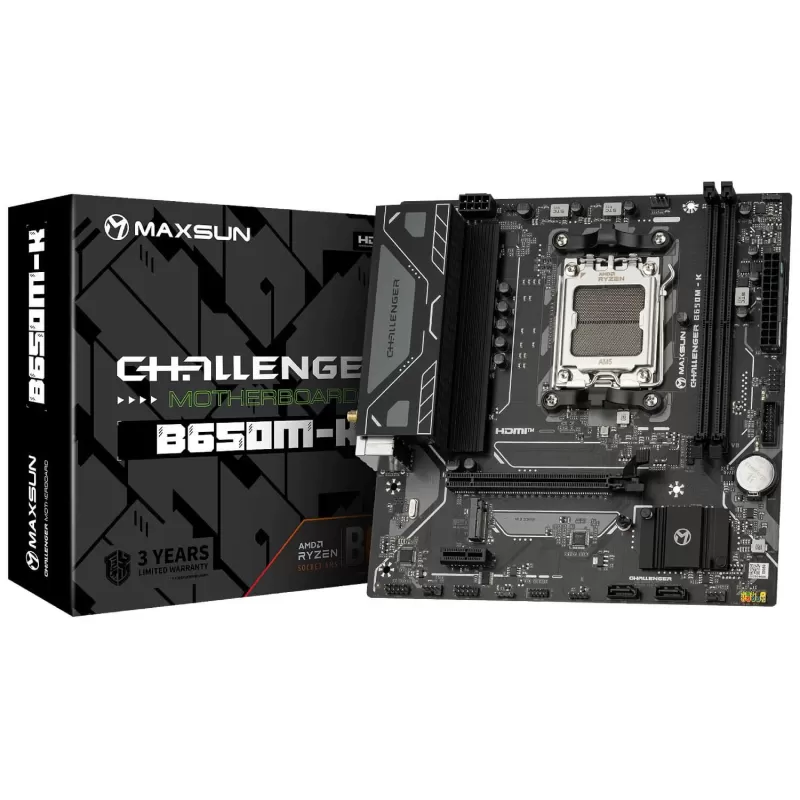

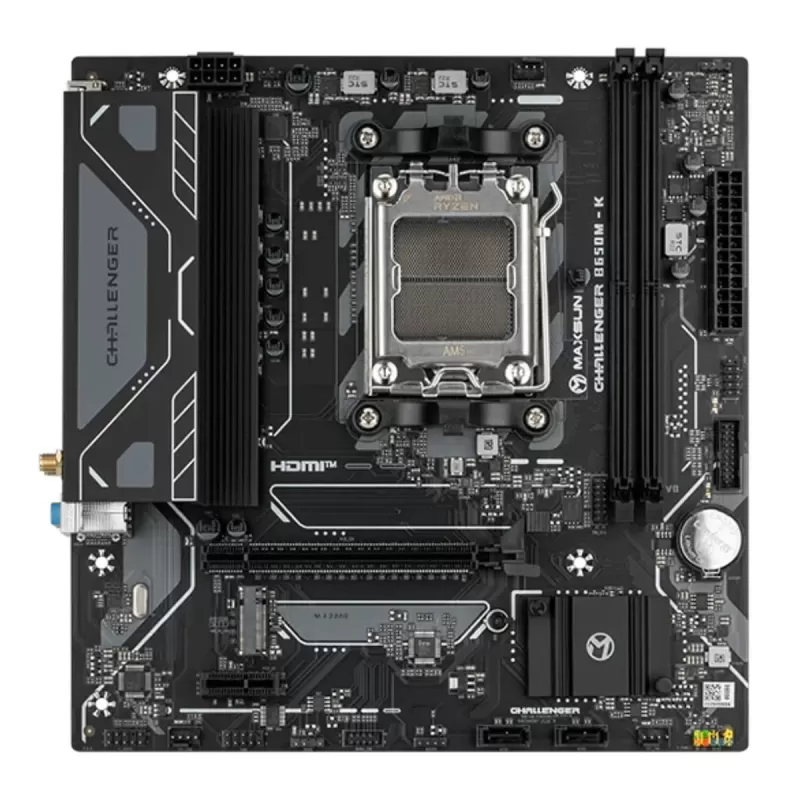

| Revew | MAXSUN Challenger B650M-K WiFi AM5 DDR5 MotherboardThe MAXSUN Challenger B650M-K WiFi is a Micro ATX board for the AMD AM5 platform, aimed at builders who want a modern foundation with DDR5 memory and onboard wireless. Combining the B650 chipset, an orderly power layout and Wi-Fi 6, it makes a balanced choice for a current desktop. Platform & chipsetThe board is based on the AMD B650 chipset in the AM5 socket and supports AMD Ryzen 7000, 8000 and 9000 series processors. Its Micro ATX layout suits both compact and standard cases, providing a stable base for performance-focused systems that need an up-to-date platform.
Memory & expansionTwo DIMM slots support DDR5 memory in dual-channel mode, reaching frequencies up to 6400MHz in an overclocked state. Fast storage is handled by an M.2 slot on a PCIe 4.0 x4 interface with NVMe drive support, so you can build a quick system with fewer internal cables, alongside SATA3 connectors for additional storage. Power, cooling & connectivityPower delivery is laid out as a 4+2+1 phase design with 50A Dr.MOS components for steady processor supply. Wireless connectivity covers a Wi-Fi 6 module with Bluetooth 5.2 support. The front panel offers two USB 5Gbps ports and two USB 2.0 ports, while the rear panel carries four Type-A USB 5Gbps ports and two USB 2.0 ports. MAXSUN Sync support with two 5V ARGB headers allows lighting synchronisation.
|
| Review | |
| Warranty | 3 years |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | MS-Challenger B650M-K WIFI |
| Model | Challenger B650M-K WiFi |
| Condition | New |
| Video Card | HDMI |
| Manufacturer | Maxsun |
| Audio | 3 port |
| Chipset | B650 |
| Compatibility for computer assembly | Hardware and Software |
| Configuration | Micro ATX |
| Free Memory Slots | 2 |
| Interface | USB 2.0 / USB 3.2 |
| Memory Interface | SATA3 / M.2 PCIe |
| Memory Type | DDR5 |
| Socket | AM5 |
| Wired Communication | LAN 1 Gb/s / Wi-Fi 6/6E (802.11ax) / Bluetooth 5.2 |
