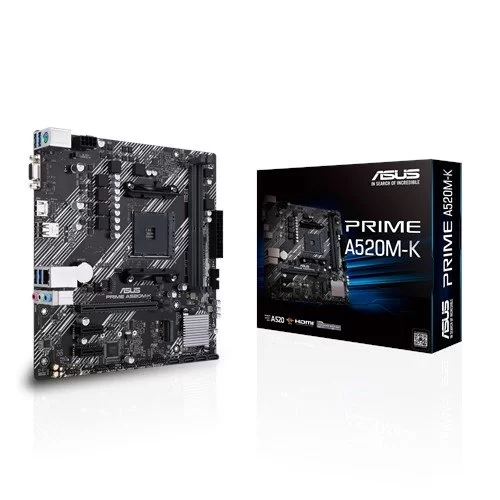

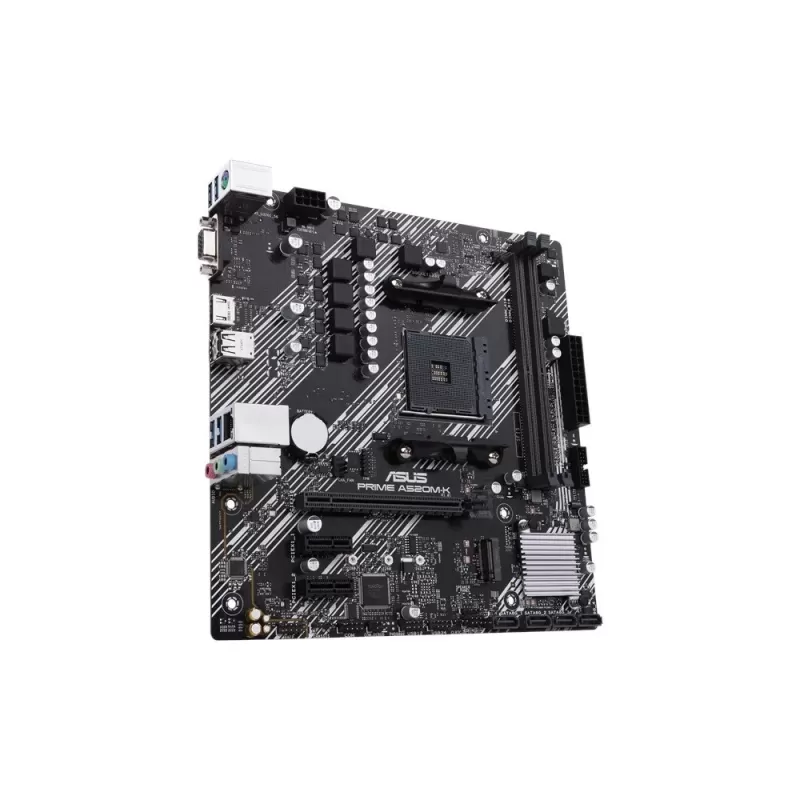

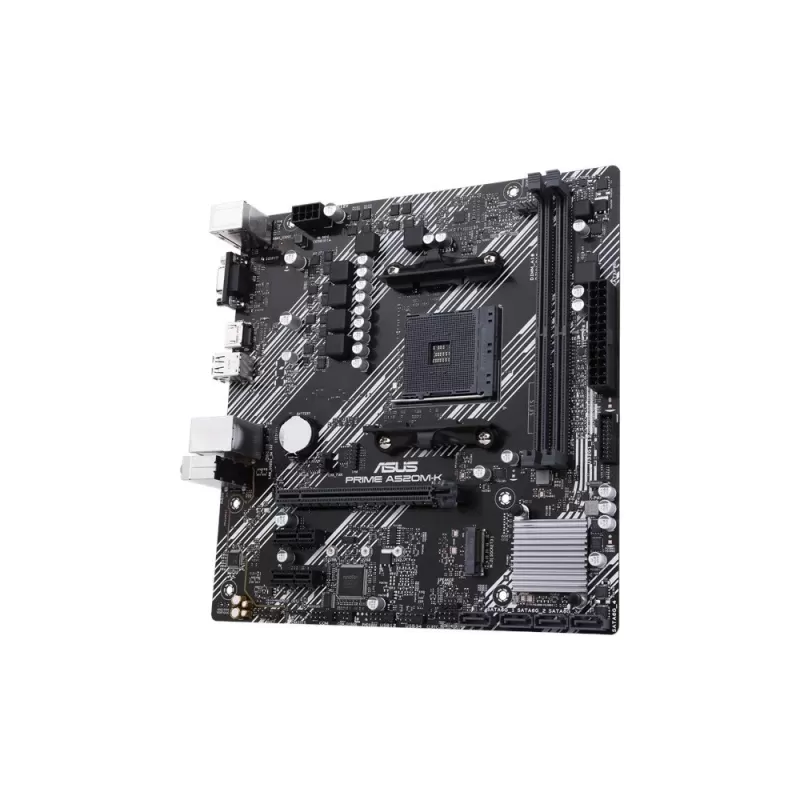

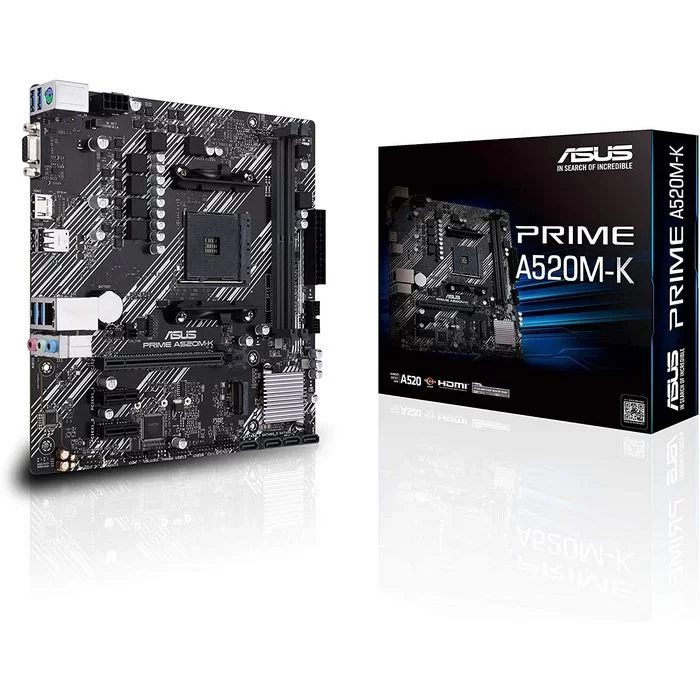

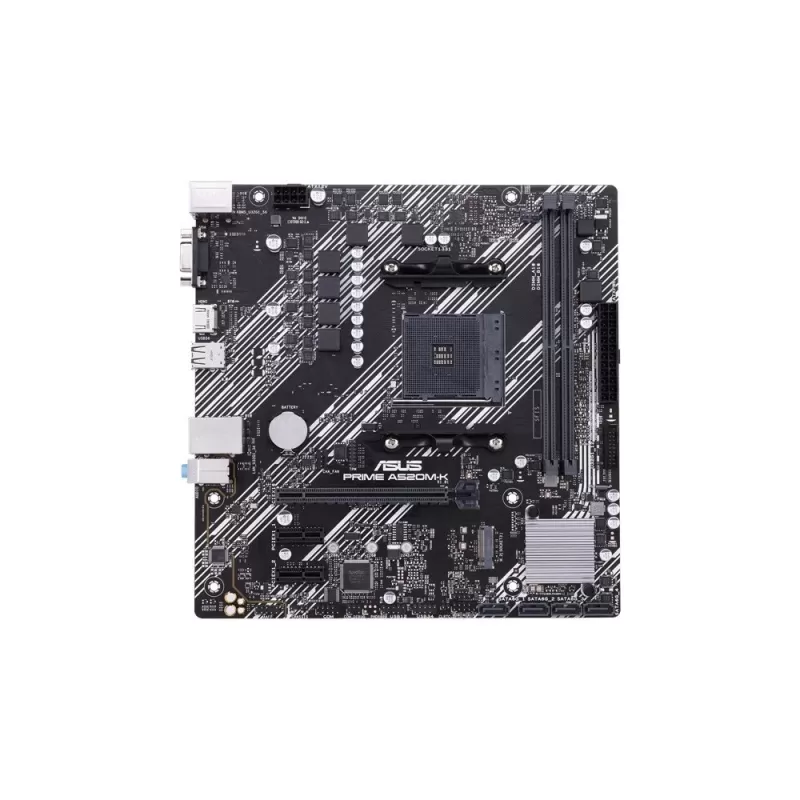

| Revew | Asus PRIME A520M-K MotherboardThe Asus PRIME A520M-K is an mATX motherboard for the AM4 socket, built for AMD Ryzen 5000, 5000G, 4000G, 3000 and 3000G series processors. It is based on the AMD A520 chipset and supports DDR4 memory in two slots, up to 64GB and up to 5100MHz (OC). According to the manufacturer, the board includes the ASUS 5X Protection III package with a DIGI+ VRM, LANGuard and a stainless-steel rear I/O. It offers one M.2 slot, four SATA ports, Realtek Gigabit LAN and HDMI and D-Sub outputs for the processor's integrated graphics, making it a good fit for an affordable office or home PC.
Key features
Specifications
In the box
| ||||||||||||||||||||||||||||||||||||||||
| Review | |||||||||||||||||||||||||||||||||||||||||
| Warranty | 3 years | ||||||||||||||||||||||||||||||||||||||||
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer Part Number | 90MB1500-M0EAY0, 90MB1500-M0EAY0 | ||||||||||||||||||||||||||||||||||||||||
| Model | PRIME A520M-K | ||||||||||||||||||||||||||||||||||||||||
| Condition | New | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4718017826921 | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer | Asus | ||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC * - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers * Choose the chassis with HD audio module in front panel to support 8-channel audio output. | ||||||||||||||||||||||||||||||||||||||||

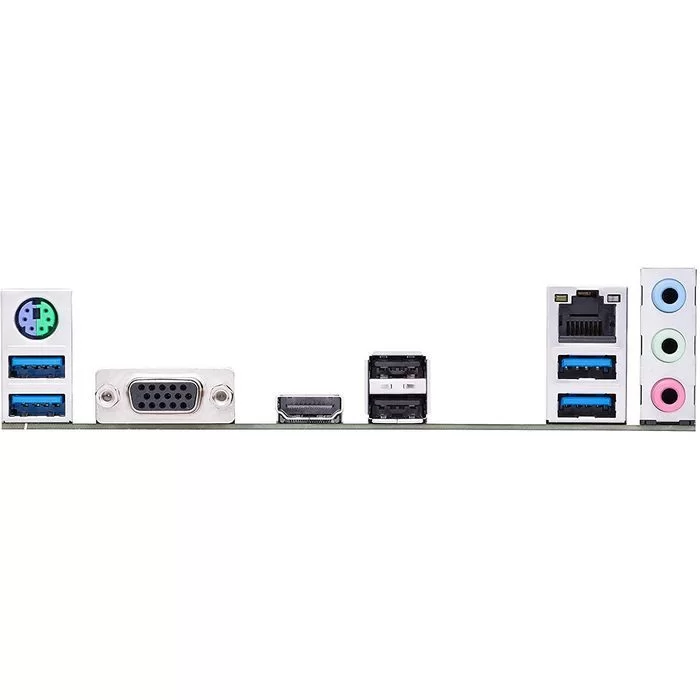

| Back Panel Connectors | 1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s) | ||||||||||||||||||||||||||||||||||||||||
| Chipset | A520 | ||||||||||||||||||||||||||||||||||||||||
| Compatibility for computer assembly | AMD Motherboards | ||||||||||||||||||||||||||||||||||||||||
| Configuration | Micro ATX | ||||||||||||||||||||||||||||||||||||||||
| Internal Ports / Inputs | 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector | ||||||||||||||||||||||||||||||||||||||||
| Memory Frequency | 4600MHz | ||||||||||||||||||||||||||||||||||||||||
| Memory Type | DDR4 | ||||||||||||||||||||||||||||||||||||||||
| Socket | AM4 | ||||||||||||||||||||||||||||||||||||||||
| Storage | Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD A520 Chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 | ||||||||||||||||||||||||||||||||||||||||
| Wired Communication | Realtek RTL8111H 1Gb Ethernet ASUS LANGuard | ||||||||||||||||||||||||||||||||||||||||

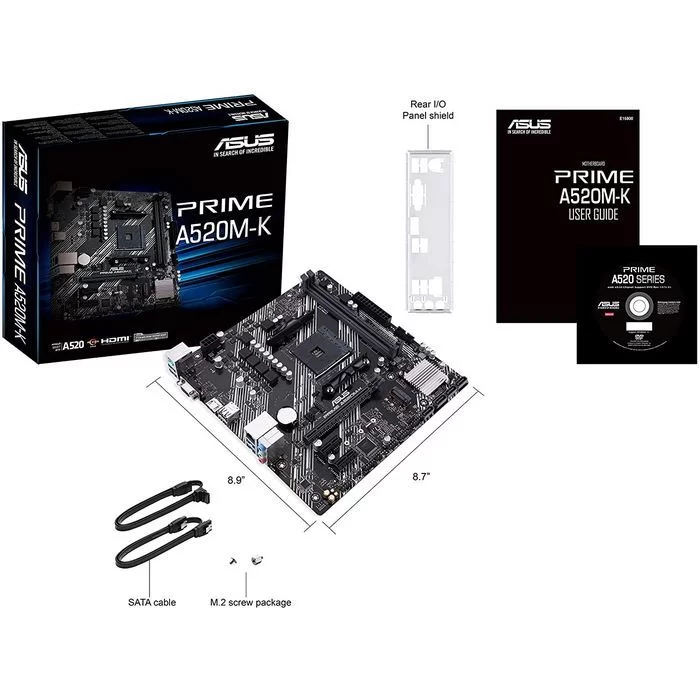

| What'S In The Box? | User´s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x M.2 SSD screw package(s) | ||||||||||||||||||||||||||||||||||||||||
