Motherboard Asus TUF GAMING B760-PLUS WIFI DDR5 DIMM LGA1700
- Наличие: In stock at supplier: delivery to branch within: 4 business days
- Print:
- Brand: Asus
- SKU: 54514
- MPN: 90MB1ER0-M0EAY0
₪881
Related Products
| Specification | |||||||||||||||||||||||||||||||||||||||||
| Revew | Asus TUF GAMING B760-PLUS WIFI MotherboardThe ASUS TUF GAMING B760-PLUS WIFI is an ATX motherboard for 12th, 13th and 14th Gen Intel Core processors in the LGA1700 socket, built on the Intel B760 chipset. Like the rest of the TUF GAMING series it uses military-grade components and goes through endurance testing, with 12+1+1 power stages and enlarged VRM heatsinks. The board offers a PCIe 5.0 x16 slot for the graphics card, three PCIe 4.0 M.2 slots, four DDR5 slots for up to 192GB, Wi-Fi 6 with Bluetooth, Realtek 2.5Gb Ethernet and a 20Gbps USB-C port on the rear panel. There is also a front USB-C header at USB 3.2 Gen 2 and audio with DTS and Two-Way AI Noise Cancelation.
Key features
Specifications
In the box
| ||||||||||||||||||||||||||||||||||||||||
| Review | |||||||||||||||||||||||||||||||||||||||||
| Warranty | 3 years | ||||||||||||||||||||||||||||||||||||||||
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer Part Number | 90MB1ER0-M0EAY0, 90MB1ER0-M0EAY0 | ||||||||||||||||||||||||||||||||||||||||
| Model | TUF GAMING B760-PLUS WIFI | ||||||||||||||||||||||||||||||||||||||||
| Condition | New | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4711387095119 | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer | Asus | ||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio cover | ||||||||||||||||||||||||||||||||||||||||

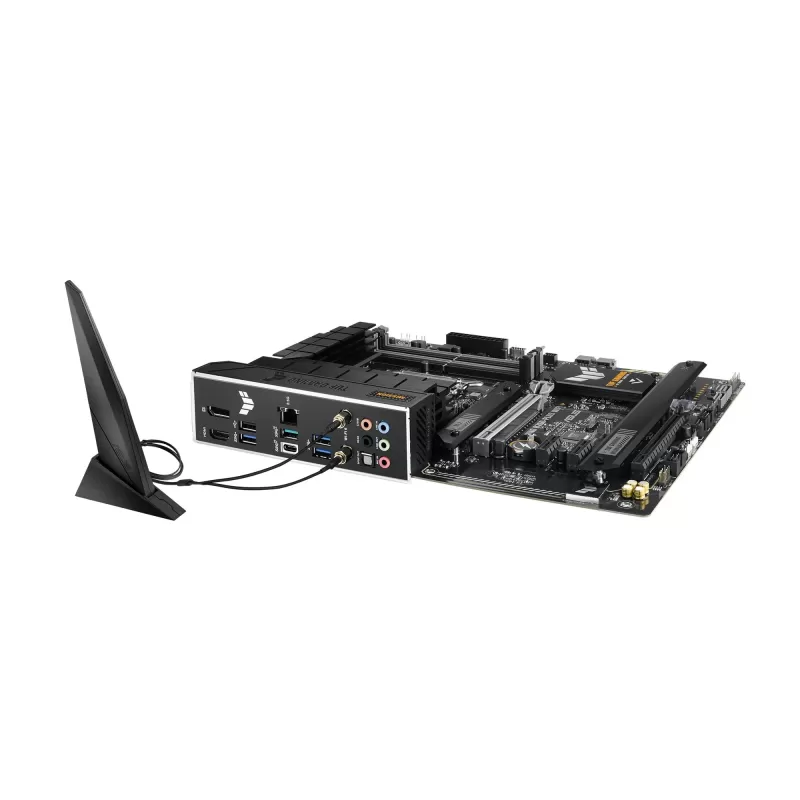

| Back Panel Connectors | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMITM&port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port | ||||||||||||||||||||||||||||||||||||||||
| Chipset | B760 | ||||||||||||||||||||||||||||||||||||||||
| Compatibility for computer assembly | Intel Motherboards | ||||||||||||||||||||||||||||||||||||||||
| Configuration | ATX | ||||||||||||||||||||||||||||||||||||||||
| Internal Ports / Inputs | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®&) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header | ||||||||||||||||||||||||||||||||||||||||
| Memory | 4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | ||||||||||||||||||||||||||||||||||||||||
| Memory Type | DDR5 DIMM | ||||||||||||||||||||||||||||||||||||||||
| Memory Volume | 192GB | ||||||||||||||||||||||||||||||||||||||||
| Socket | LGA1700 | ||||||||||||||||||||||||||||||||||||||||
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel®&13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel®&B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel®&Rapid Storage Technology supports SATA RAID 0/1/5/10. | ||||||||||||||||||||||||||||||||||||||||
| Wired Communication | 1 x Realtek 2.5Gb Ethernet TUF LANGuard | ||||||||||||||||||||||||||||||||||||||||
| Wireless network | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth®&v5.2* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications." | ||||||||||||||||||||||||||||||||||||||||

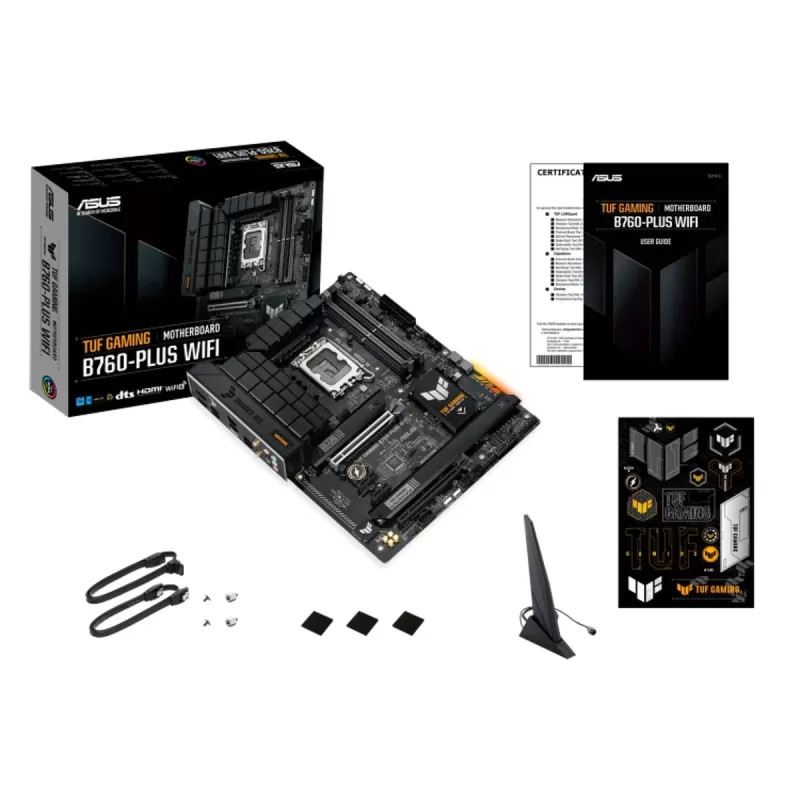

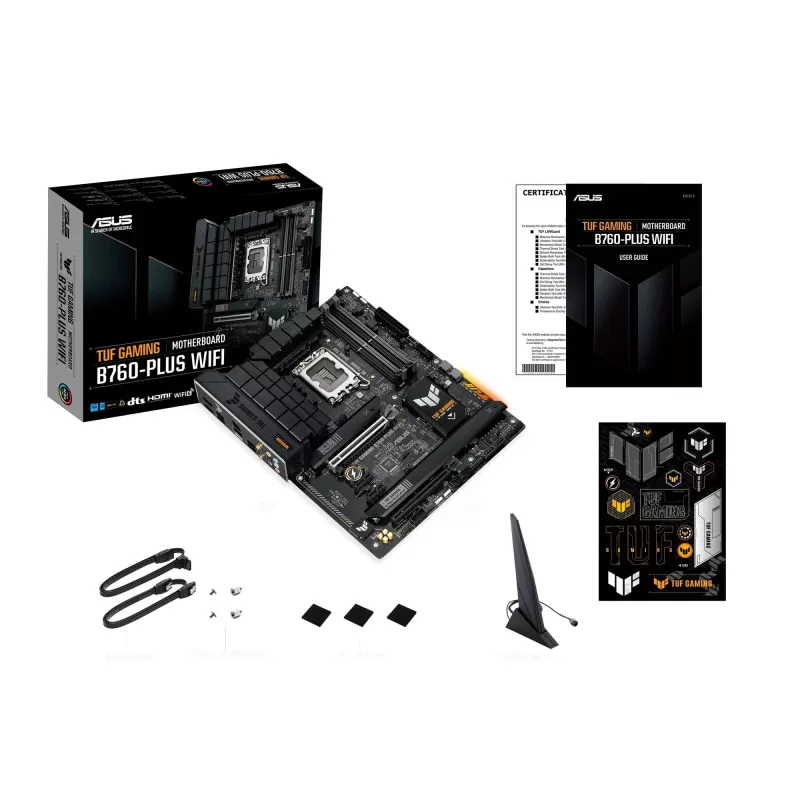

| What'S In The Box? | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x TUF Gaming sticker 2 x M.2 Rubber Packages 1 x Screw package for M.2 SSD Documentation 1 x TUF Certification card 1 x User guide | ||||||||||||||||||||||||||||||||||||||||
