Motherboard BIOSTAR TB250-BTC PRO DDR4 LGA1151

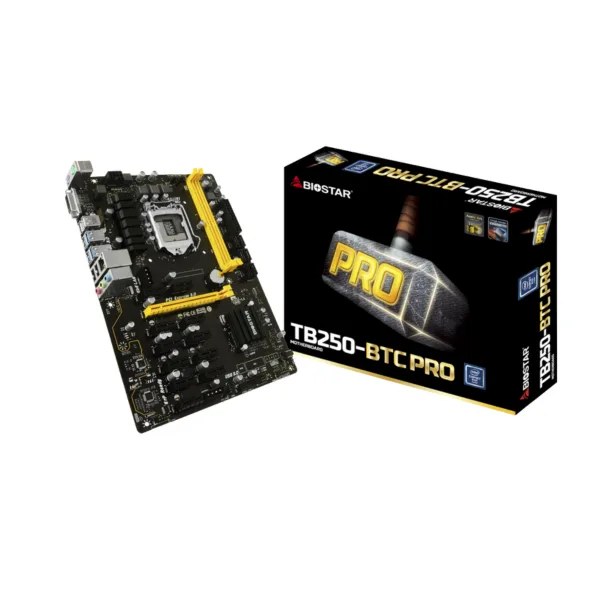

BIOSTAR TB250-BTC PRO Motherboard

The BIOSTAR TB250-BTC PRO is an ATX motherboard for Socket LGA1151 built on the Intel B250 chipset. It has 12 PCI Express slots for connecting multiple graphics cards, which is why it is common in mining rigs.

It supports 6th and 7th generation Intel Core, Pentium and Celeron processors, two DDR4 slots for up to 32GB and six SATA III ports.

Key features

• 12 PCI Express slots - One PCIe 3.0 x16 slot and eleven PCIe 3.0 x1 slots for multiple graphics cards. The PEX1_6 to PEX1_11 slots are not compatible with the ATX standard, so an extra connecting kit is needed to install a graphics card.
• Dedicated power for the graphics cards - Two 4-pin 12V PCIe power connectors that must be connected when mining, and a SATA power connector that strengthens power to the rear USB ports.
• Intel B250 platform - An LGA1151 socket for 6th and 7th generation Intel Core i3, i5 and i7, Pentium and Celeron processors, with a TDP of up to 95W.
• DDR4 memory up to 32GB - Two DIMM slots in dual-channel mode at 2400, 2133 or 1866MHz, with 2400MHz available for 7th generation processors.
• Rear and internal connectivity - Four USB 3.0 ports, four USB 2.0 ports, a DVI-D output up to 1920 x 1200 at 60Hz, PS/2 ports, three audio jacks and a Gigabit network port.
• Dependable build - 100% solid capacitors, Charger Booster technology, online BIOS update and a Realtek RTL8111H network chip with Super LAN surge protection.

Specifications

In the box

• BIOSTAR TB250-BTC PRO motherboard
• 2 x SATA cables
• I/O shield
• Driver DVD
• User manual
