Motherboard Gigabyte Z890I AORUS ULTRA DDR5 LGA1851 - official importer

Gigabyte Z890I AORUS ULTRA Motherboard

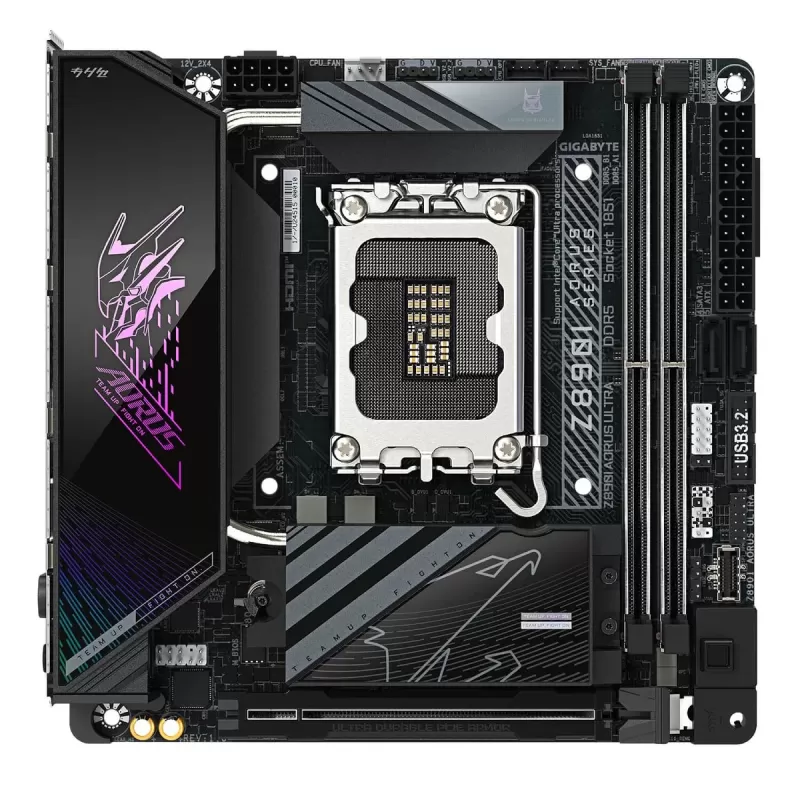

The Gigabyte Z890I AORUS ULTRA is a compact Mini-ITX motherboard (17 x 17 cm) for the LGA1851 socket, built for Intel Core Ultra (Series 2) processors. It is based on the Intel Z890 chipset and supports DDR5 memory in two slots, up to 128GB and up to 9200 MT/s (OC), including CUDIMM modules.

According to the manufacturer, the board features an 8+1+2 digital VRM with 105A Smart Power Stages and a 10-layer PCB, a PCIe 5.0 x16 graphics slot, a PCIe 5.0 x4 M.2 slot, a Thunderbolt 4 port, 2.5GbE LAN and Wi-Fi 7. It is a good choice for a small but powerful gaming or work PC.

Key features

• Strong power in a small format - An 8+1+2 digital VRM with 105A Smart Power Stages, a 10-layer 2X Copper PCB and an 8-pin CPU connector.
• Fast DDR5 memory - Two dual-channel DDR5 slots for up to 128GB at up to 9200 MT/s (OC), with XMP profiles and CUDIMM support. D5 Bionic Corsa technology improves memory performance.
• PCIe 5.0 for graphics and storage - A reinforced PCIe 5.0 x16 slot (PCIe UD Slot X), a PCIe 5.0 x4 M.2 slot on the front and a PCIe 4.0 x4 M.2 slot on the back of the board, with an M.2 Thermal Guard Ext. heatsink. Two SATA 6Gb/s ports are also available.

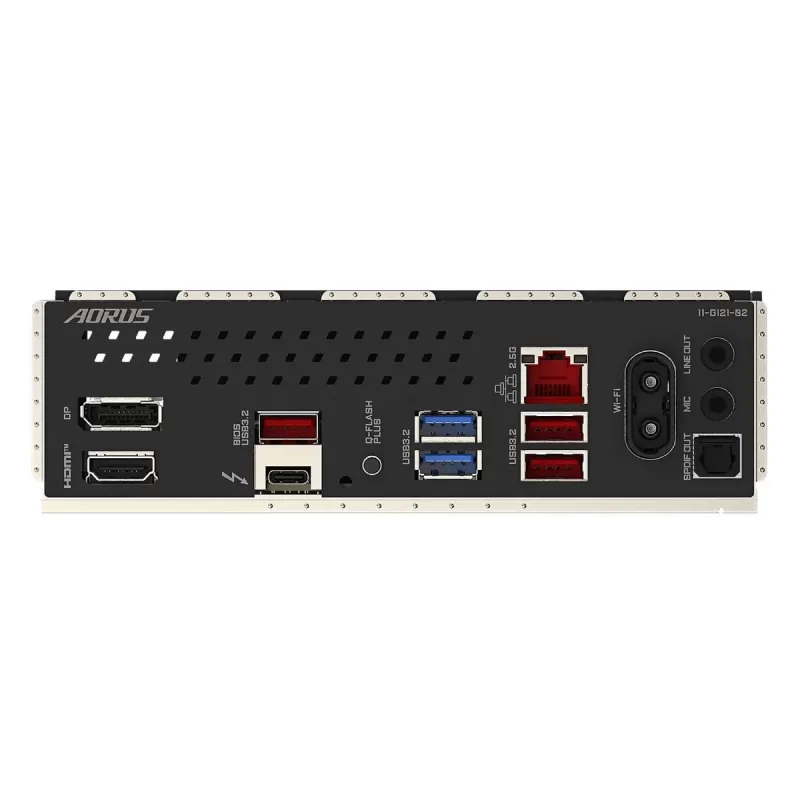

• Thunderbolt 4 and displays - A Thunderbolt 4 Type-C port at up to 40Gb/s with video output, a DisplayPort output and an HDMI 2.1 port. Up to three displays can be used at the same time.
• Fast networking - 2.5GbE LAN and Wi-Fi 7 (Intel BE202) with Bluetooth 5.4 and a directional high-gain antenna that is quick to attach (WIFI EZ-Plug).
• Cooling and easy assembly - A VRM Thermal Armor Advanced heatsink with a heatpipe and AORUS lighting in the I/O zone, an integrated I/O shield, EZ-Latch Plus and EZ-Latch Click for screwless installation, and a Q-Flash Plus button.

Specifications
