Motherboard MAXSUN Challenger H610M-H V1 DDR4 LGA1700

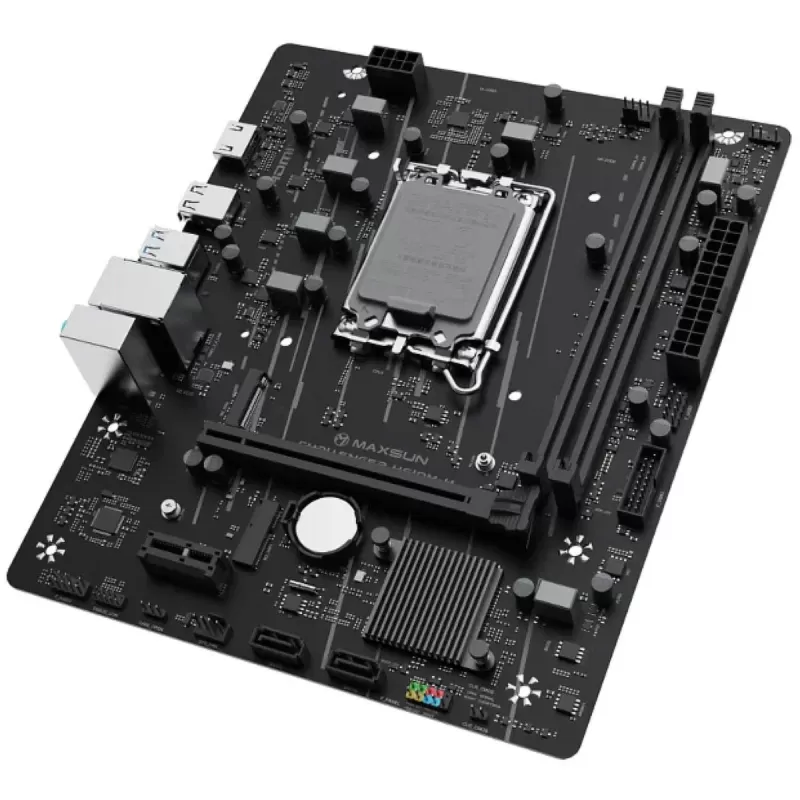

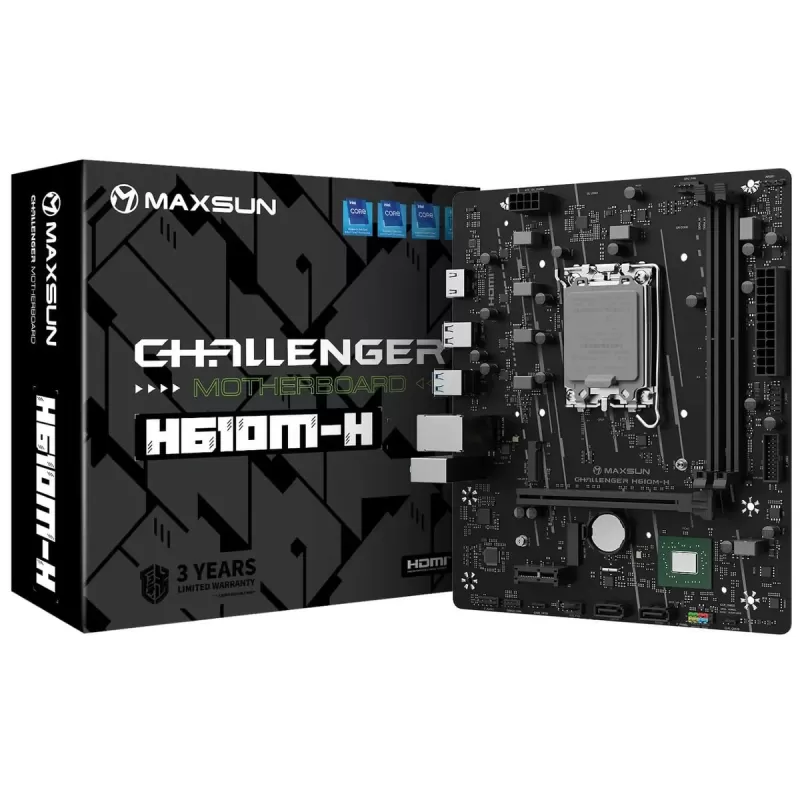

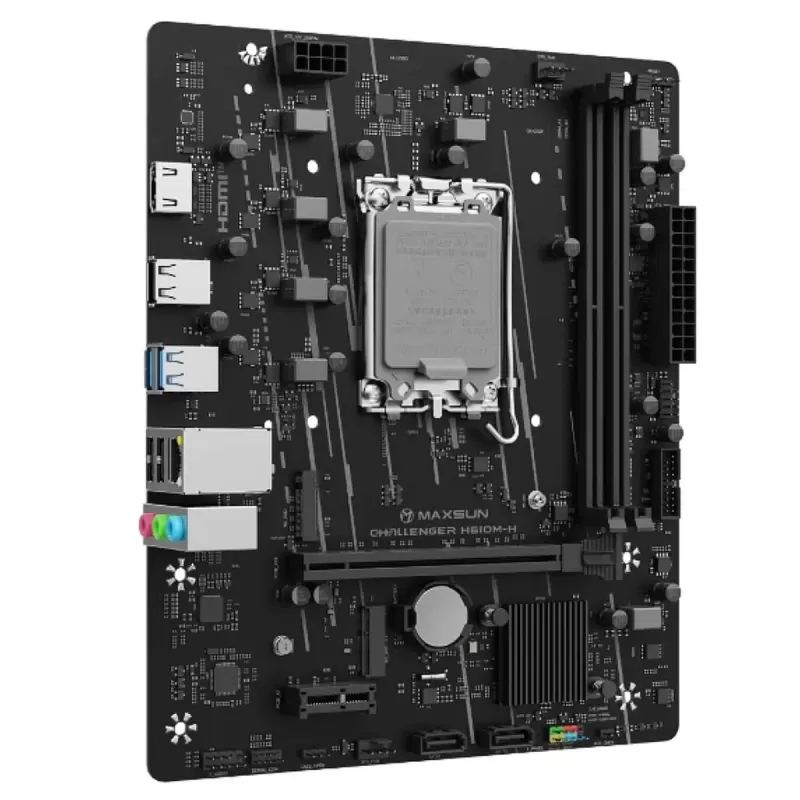

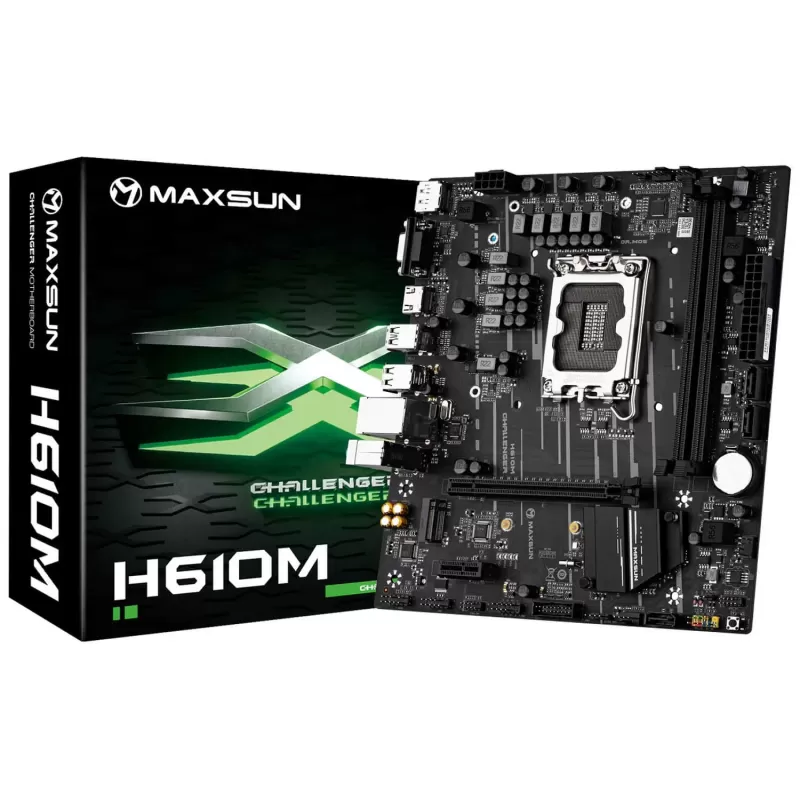

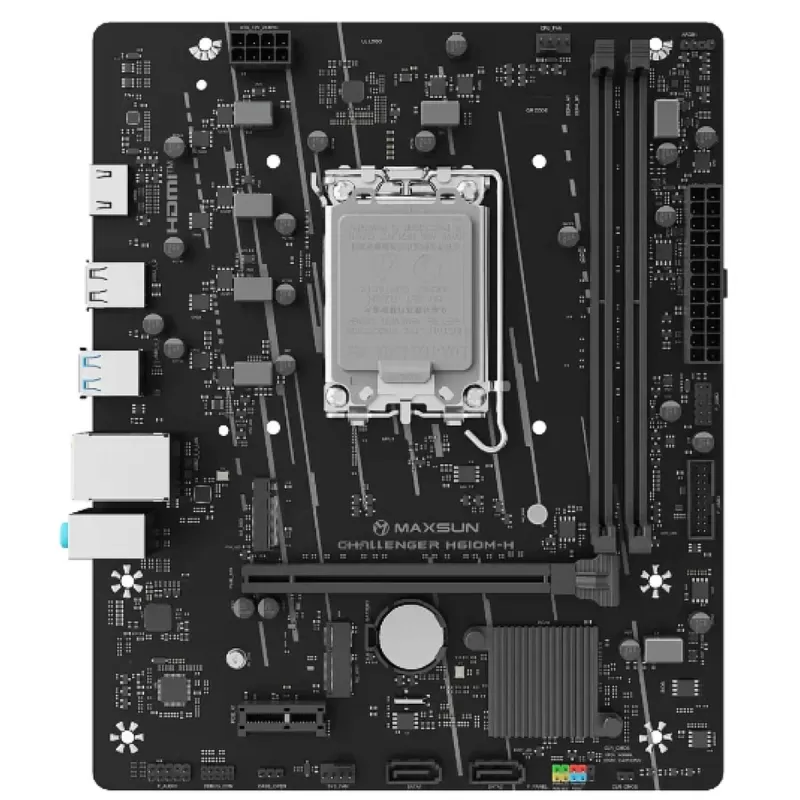

MAXSUN Challenger H610M-H V1 Intel Micro ATX DDR4 Motherboard

The Challenger H610M-H V1 is a compact Micro ATX board for the Intel platform, built on the H610 chipset and aimed at everyday and home builds. It provides stable power delivery, fast storage and a varied set of display outputs on a practical base.

Platform & chipset

The board is built on the Intel H610 chipset and intended for compatible Intel processors. Its layout includes a Debug LED for quickly spotting issues during start-up, as well as an onboard Clr CMOS button that makes restoring default settings straightforward. Together these features ease assembly and basic troubleshooting.

Memory & expansion

The board works with DDR4 memory and provides a high-speed M.2 slot for an SSD, which allows building a fast system with fewer internal cables. Storage interfaces include SATA3 alongside M.2 PCIe, so additional drives can be added when needed. The Micro ATX form factor keeps the configuration well suited to compact cases.

Power, cooling & connectivity

Power delivery is arranged in an 8+1+1 phase design and uses Sic654 Dr.MOS components rated at 50A, providing stable voltage to the processor. The board offers three display outputs - DisplayPort, HDMI and VGA - for use with the integrated graphics of a compatible chip. USB 2.0 and USB 3.2 connections are also available for peripherals.

• Chipset: Intel H610 · Micro ATX form factor
• Memory: DDR4
• Power: 8+1+1 phases · Dr.MOS Sic654 50A
• Storage: M.2 PCIe slot · SATA3
• Display outputs: DisplayPort · HDMI · VGA
• I/O: USB 2.0 · USB 3.2
• Diagnostics: Debug LED · Clr CMOS button
