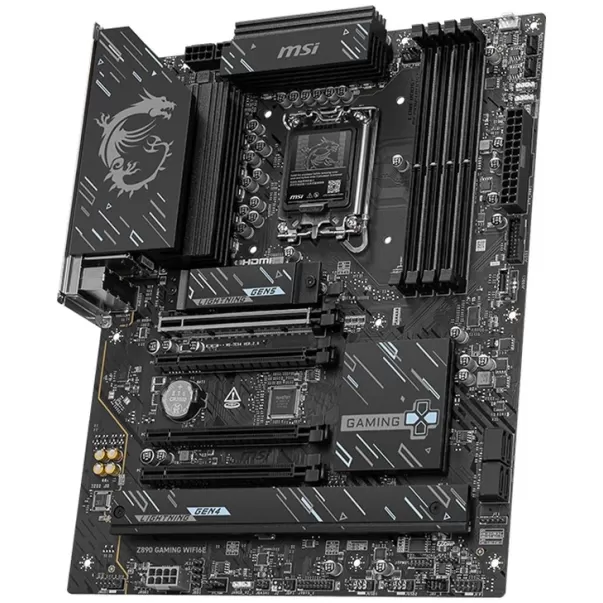

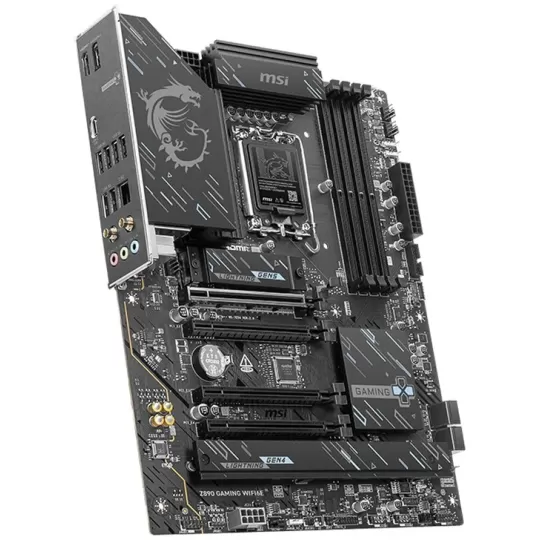

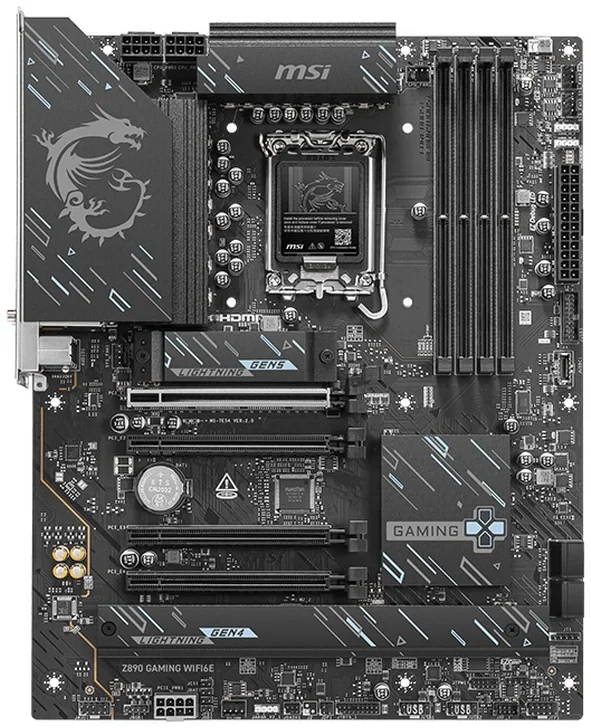

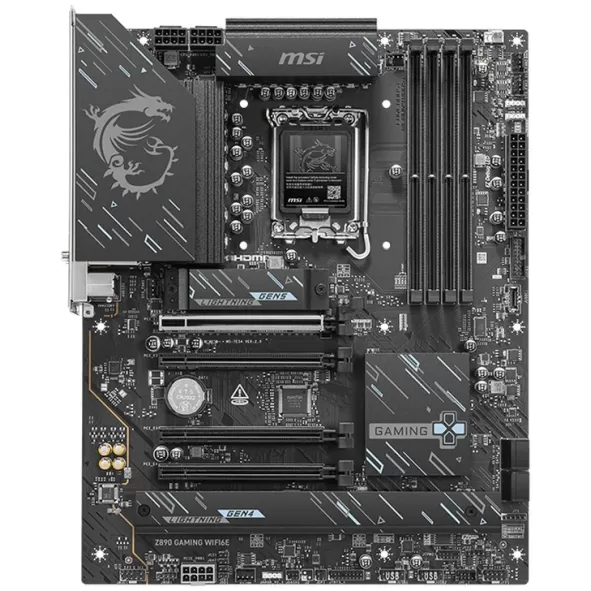

MSI Z890 GAMING WIFI6E Motherboard

The MSI Z890 GAMING WIFI6E is an ATX motherboard based on the Intel Z890 chipset with an LGA1851 socket for Intel Core Ultra (Series 2) processors. It is aimed at gaming PCs and users who want a Z-series board with overclocking support, and uses a 12+1+1+1 power design and a 6-layer PCB.

It offers four DDR5 slots for up to 256GB, a PCIe 5.0 x16 slot for the graphics card, three M.2 slots (one of them PCIe 5.0), 20Gbps USB-C on the rear and front, 2.5G LAN and Wi-Fi 6E with Bluetooth 5.3.

Key features

• Z890 chipset and stable power - A 12+1+1+1 Duet Rail power system with P-PAK, dual 8-pin CPU connectors, Core Boost and Memory Boost, on a 6-layer PCB.
• Fast DDR5 memory - Four DDR5 slots for up to 256GB, with support for up to 8800 MT/s overclocked, Intel XMP 3.0 and CUDIMM modules.
• PCIe 5.0 and fast M.2 - A PCIe 5.0 x16 slot for the graphics card, one M.2 slot at PCIe 5.0 x4 and two M.2 slots at PCIe 4.0 x4, plus four SATA ports.
• 2.5G LAN and Wi-Fi 6E - A Realtek 8125D 2.5Gbps network controller and a pre-installed Wi-Fi 6E module with 160MHz channels and up to 2.4Gbps, together with Bluetooth 5.3.
• USB connectivity - Six 5Gbps USB-A ports and a 20Gbps USB-C port on the rear panel, plus another 20Gbps USB-C connector for the front of the case.
