Motherboard Gigabyte Z690 GAMING X DDR4 ATX LGA1700

Motherboard Gigabyte Z690 GAMING X DDR4 ATX LGA1700
Motherboard Gigabyte Z690 GAMING X DDR4 ATX LGA1700
Motherboard Gigabyte Z690 GAMING X DDR4 ATX LGA1700
Motherboard Gigabyte Z690 GAMING X DDR4 ATX LGA1700
Out of stock
Motherboard Gigabyte Z690 GAMING X DDR4 ATX LGA1700
Motherboard Gigabyte Z690 GAMING X DDR4 ATX LGA1700
Motherboard Gigabyte Z690 GAMING X DDR4 ATX LGA1700
Motherboard Gigabyte Z690 GAMING X DDR4 ATX LGA1700

* The picture is for illustration only

A short description

Manufacturer: Gigabyte, Socket: LGA1700, Chipset: Z690, Memory Type: DDR4
Motherboard Gigabyte Z690 GAMING X DDR4 ATX LGA1700

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

*Except for cases of abnormal size/weight

    Payment options:

    • Up to 12 interest-free Credit Card (13-36 with interest)  payments through a website, phone, or Ashdod branch
    • Bank transfer (Deferred payment not accepted)Bit, PayBox
    • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
    • PayPal - Only Shipments With a Tracking Number
    • Stock: Out of stock
    • Print:
    • SKU: 45945
    • MPN: Z690 GAMING X DDR4
    ₪878
    Review
    Warranty3 years
    Service During The Warranty Period (Who To Contact)COMPMASTER Lab

    073-2241747

    Gei Oni 6, Tet Shoping Center, Ashdod

    Manufacturer Part NumberZ690 GAMING X DDR4
    ModelZ690 GAMING X DDR4
    ConditionNew
    ManufacturerGigabyte
    Audio
    1. Realtek ALC1220-VB CODEC
      * The back panel line out jack supports DSD audio.
    2. High Definition Audio
    3. 2-channel analog output
    4. Support for S/PDIF Out
      7.1-channel digital signals
      * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.

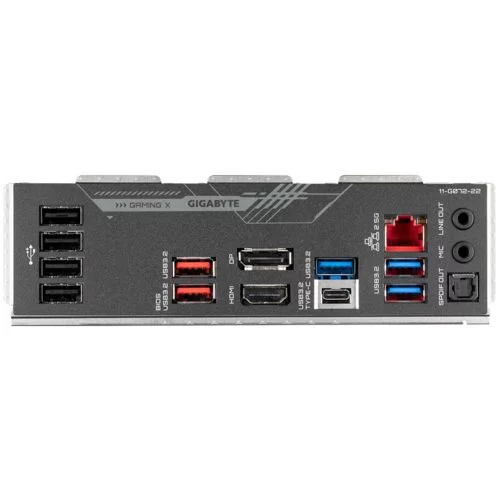

    Back Panel Connectors
    1. 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
    2. 2 x USB 3.2 Gen 2 Type-A ports (red)
    3. 3 x USB 3.2 Gen 1 ports
    4. 4 x USB 2.0/1.1 ports
    5. 1 x HDMI port
    6. 1 x DisplayPort
    7. 1 x RJ-45 port
    8. 1 x optical S/PDIF Out connector
    9. 2 x audio jacks
    ChipsetZ690
    Compatibility for computer assemblyIntel Motherboards
    ConfigurationATX
    Internal Ports / Inputs
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x 4-pin ATX 12V power connector
    4. 1 x CPU fan header
    5. 1 x water cooling CPU fan header
    6. 3 x system fan headers
    7. 1 x system fan/water cooling pump header
    8. 2 x addressable LED strip headers
    9. 2 x RGB LED strip headers
    10. 4 x M.2 Socket 3 connectors
    11. 6 x SATA 6Gb/s connectors
    12. 1 x front panel header
    13. 1 x front panel audio header
    14. 1 x USB Type-C header, with USB 3.2 Gen 2 support
    15. 1 x USB 3.2 Gen 1 header
    16. 2 x USB 2.0/1.1 headers
    17. 2 x Thunderbolt add-in card connectors
    18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    19. 1 x reset button
    20. 1 x reset jumper
    21. 1 x Q-Flash Plus button
    22. 1 x Clear CMOS jumper

    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

    Memory
    1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5(O.C.)/4933(O.C.)/48(O.C.)/ 47(O.C.)/ 46(O.C.)/ 45(O.C.)/ 44(O.C.)/ 43(O.C.)/4266(O.C.) / 4133(O.C.) / 4(O.C.) / 3866(O.C.) / 38(O.C.) / 3733(O.C.) / 3666(O.C.) / 36(O.C.) / 3466(O.C.) / 34(O.C.) / 3333(O.C.) / 33(O.C.) / 32 / 3 / 2933 / 28 / 2666 / 24 / 2133 MHz memory modules
    2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
    SocketLGA1700
    Storage
    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1. 2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
    2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
    3. 6 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

    Intel Optane Memory Ready
    * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
    Wired Communication1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    סוג הזיכרוןDDR4
    Link To The Manufacturer'S Website

    Get full product information - Go to product page

    Product LinkMotherboard Gigabyte Z690 GAMING X DDR4 ATX LGA1700
