Processor Intel Core i5 14600K LGA1700

Intel Core i5 14600K Processor

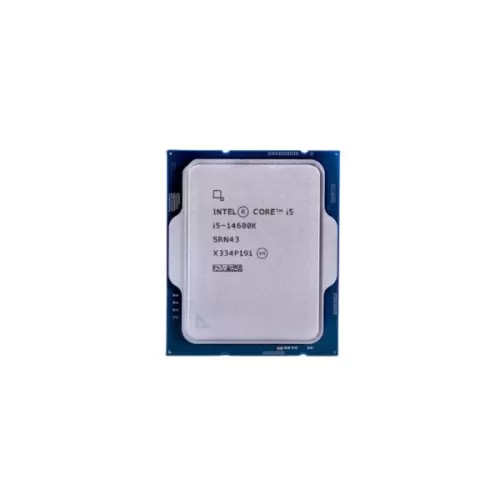

The Intel Core i5 14600K is a 14th Gen Intel (Raptor Lake) desktop processor from the unlocked K series. It combines 6 Performance-cores and 8 Efficient-cores, 20 threads, a turbo frequency of up to 5.3GHz and 24MB of Intel Smart Cache, and suits gaming PCs and creative work.

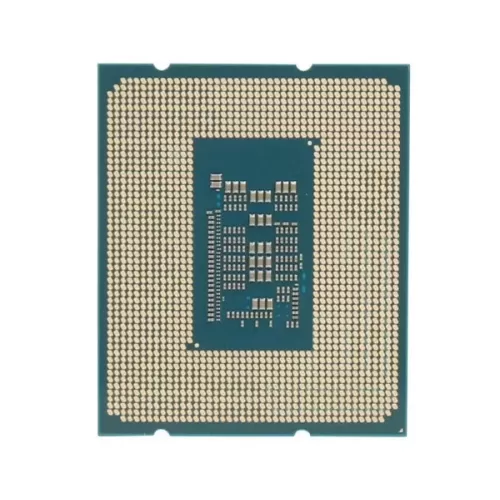

The processor fits the LGA1700 socket, supports DDR5 memory up to 5600 MT/s or DDR4 up to 3200 MT/s and PCI Express 5.0, and includes integrated Intel UHD Graphics 770. Processor base power is 125W and maximum turbo power is 181W.

Key features

• 14 cores, hybrid architecture - 6 Performance-cores running from 3.5GHz up to 5.3GHz and 8 Efficient-cores running from 2.6GHz up to 4.0GHz, with Intel Thread Director directing each task to the right core.
• Unlocked for overclocking - A K model that allows frequency tuning on a supporting motherboard, with 125W processor base power and 181W maximum turbo power.
• Intel UHD Graphics 770 - Integrated graphics with 32 execution units at up to 1.55GHz, Intel Quick Sync Video for fast video encoding and support for up to 4 displays, up to 7680x4320 at 60Hz over DisplayPort.
• DDR5 or DDR4 - Two memory channels with DDR5 up to 5600 MT/s or DDR4 up to 3200 MT/s, up to 192GB of memory and up to 89.6GB/s of bandwidth.
• PCI Express 5.0 - 20 PCIe 5.0 and 4.0 lanes from the processor, in 1x16+4 or 2x8+4 configurations, for a fast graphics card and an NVMe drive.
