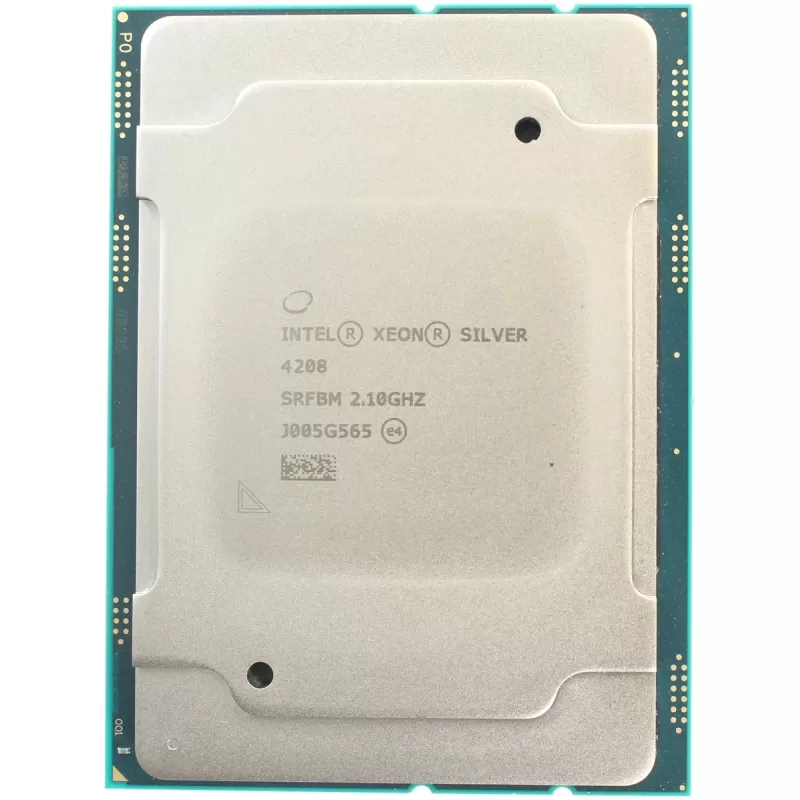

Processor Intel Xeon Silver 4208 LGA3647

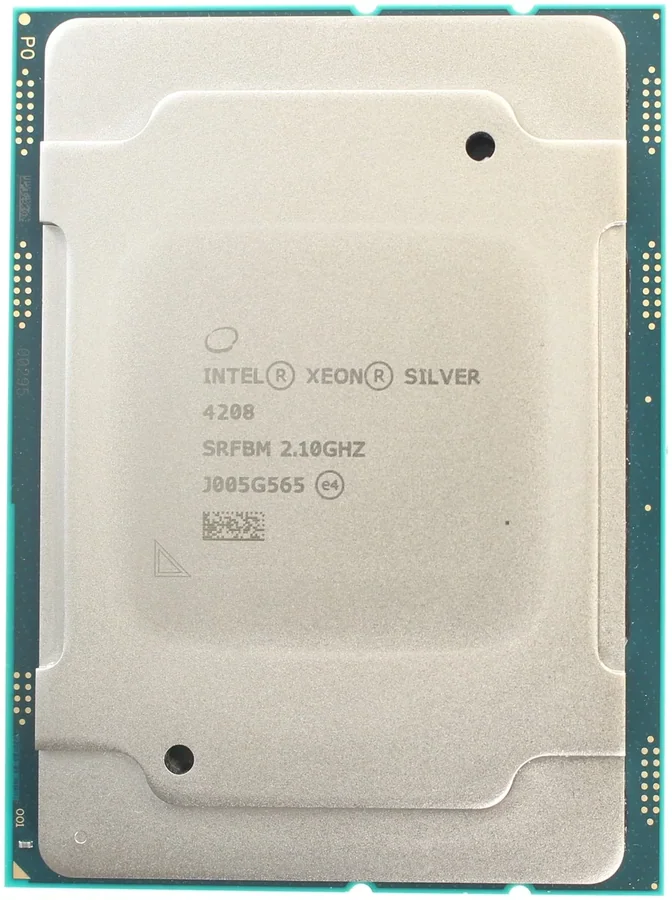

Intel Xeon Silver 4208 Processor

The Intel Xeon Silver 4208 is a 2nd Gen Intel Xeon Scalable server processor (former codename Cascade Lake) made on the 14nm process for the FCLGA3647 socket. It has 8 cores and 16 threads, a 2.10GHz base clock, up to 3.20GHz Turbo, 11MB of cache and a 85W TDP.

It supports six-channel DDR4-2400 ECC memory up to 1TB and 48 PCIe 3.0 lanes, and suits entry-level single and dual-socket servers such as file servers, mail servers and light virtualization at low power draw. This is the tray version: the processor only, without a retail box or cooler.

Key features

• 8 cores at 85W - 8 cores and 16 threads with Hyper-Threading at a TDP of only 85W.
• Turbo up to 3.20GHz - 2.10GHz base and up to 3.20GHz with Turbo Boost 2.0, with 11MB of cache.
• Six-channel memory - DDR4-2400 ECC in six channels, up to 1TB.
• Dual-socket servers - 2S scalability with two UPI links and 48 PCIe 3.0 lanes per processor.
• Virtualization and security - Intel Deep Learning Boost, AVX-512, Intel VT-x and VT-d with EPT, Intel TXT and AES-NI.

Specifications
