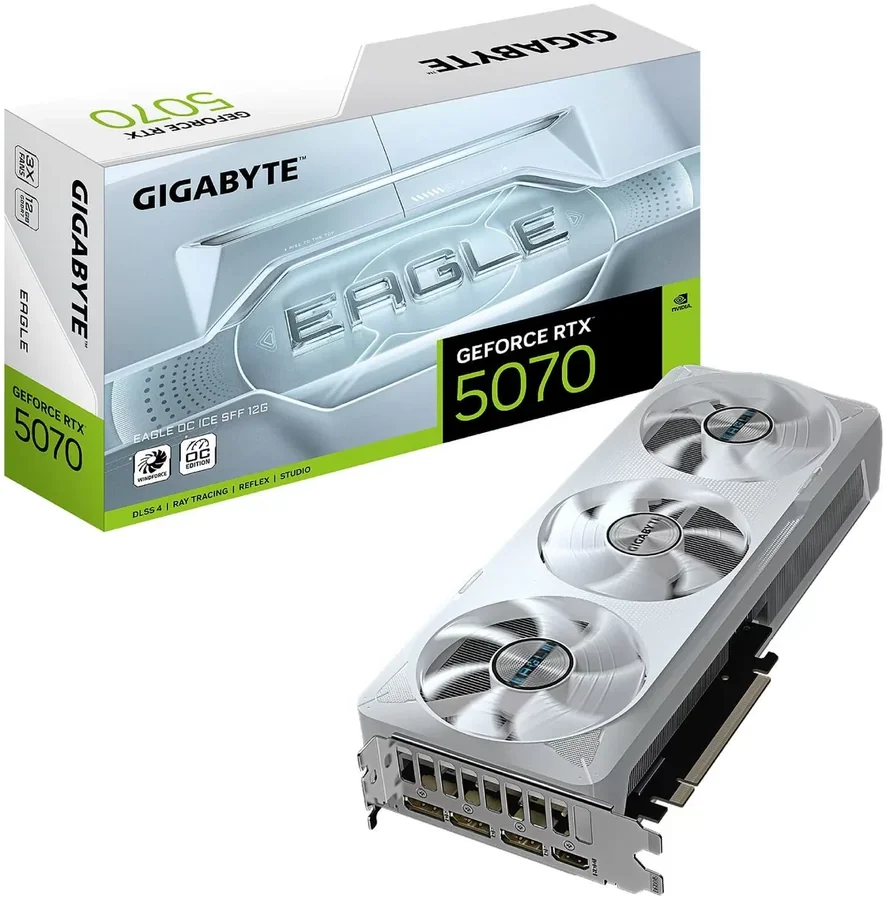

| Revew | Gigabyte GeForce RTX 5070 EAGLE OC ICE SFF 12G Graphics CardThe Gigabyte GeForce RTX 5070 EAGLE OC ICE SFF 12G is a white graphics card built on the GeForce RTX 5070 and the NVIDIA Blackwell architecture, with 12GB of GDDR7 memory at 28 Gbps on a 192-bit interface and a 2587 MHz core clock. At 290 mm long and 50 mm thick it meets NVIDIA's SFF-ready specification and fits compact cases. The WINDFORCE cooler includes three Hawk fans, a large copper plate and server-grade thermal gel, and the white EAGLE design adds RGB lighting. The box includes a 12V-2x6 to 2x PCIe 8-pin adapter.
Key features- NVIDIA Blackwell and DLSS 4.5 - Fifth-gen Tensor Cores and fourth-gen Ray Tracing Cores enable full ray tracing with neural rendering. DLSS 4.5 with Dynamic Multi Frame Generation uses AI to raise frame rates, and NVIDIA Reflex cuts latency in competitive games.
- 12GB GDDR7 and 2587 MHz core clock - 12GB of GDDR7 memory runs at 28 Gbps on a 192-bit interface. The core is factory-clocked at 2587 MHz versus 2512 MHz on the NVIDIA reference card, with no extra tuning required.
- WINDFORCE cooling - Three Hawk fans with blades inspired by an eagle's wing spin in alternate directions to reduce turbulence and raise air pressure. A large copper plate contacts the GPU directly, composite copper heat pipes carry the heat to the heatsink, and the fans stop completely under light load (3D Active Fan).
- Server-grade thermal conductive gel - The memory chips and MOSFETs are cooled with a thermal gel that keeps full contact on uneven surfaces and does not deform during shipping or long-term use, unlike ordinary thermal pads. The extended heatsink lets air pass straight through (Screen Cooling), and graphene nano lubricant extends fan life.
- White EAGLE design with RGB - A white shroud inspired by aerospace battleships and sci-fi, layered metal side panels with subtle blue lighting, and RGB lighting with 16.7M colors that syncs in GIGABYTE CONTROL CENTER. The card is also NVIDIA SFF-ready for compact cases.
- Reinforced structure and Ultra Durable parts - A metal backplate with a bent edge is fastened to the I/O bracket to stiffen the card, and a power indicator flashes on supply problems. Ultra Durable components include metal chokes, lower ESR solid capacitors and lower RDS(on) MOSFETs for cool, stable operation.
Specifications| Manufacturer | Gigabyte | | Model | GeForce RTX 5070 EAGLE OC ICE SFF 12G | | Part number | GV-N5070EAGLEOC ICE-12GD | | EAN | 4719331355777 | | GPU | NVIDIA GeForce RTX 5070 | | Architecture | NVIDIA Blackwell | | CUDA cores | 6144 | | Core clock | 2587 MHz (reference card: 2512 MHz) | | Memory | 12GB GDDR7, 192-bit, 28 Gbps | | Bus interface | PCI Express 5.0 | | Display outputs | 3 x DisplayPort 2.1b, 1 x HDMI 2.1b | | Max resolution | 7680 x 4320, up to 4 displays | | DirectX / OpenGL | DirectX 12 API, OpenGL 4.6 | | Power connector | 1 x 16-pin | | Recommended PSU | 750W | | Dimensions | 290 x 120 x 50 mm | | Cooling | WINDFORCE, 3 Hawk fans, large copper plate | | Lighting | RGB | | Color | White |
In the box- Gigabyte GeForce RTX 5070 EAGLE OC ICE SFF 12G graphics card
- Quick guide
- 12V-2x6 to 2x PCIe 8-pin adapter
|
