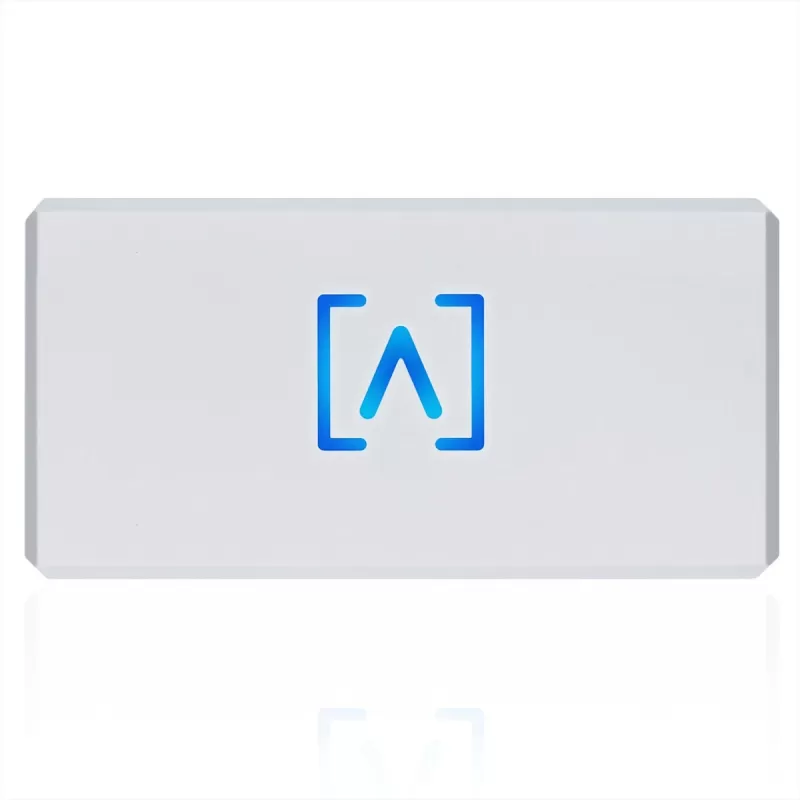

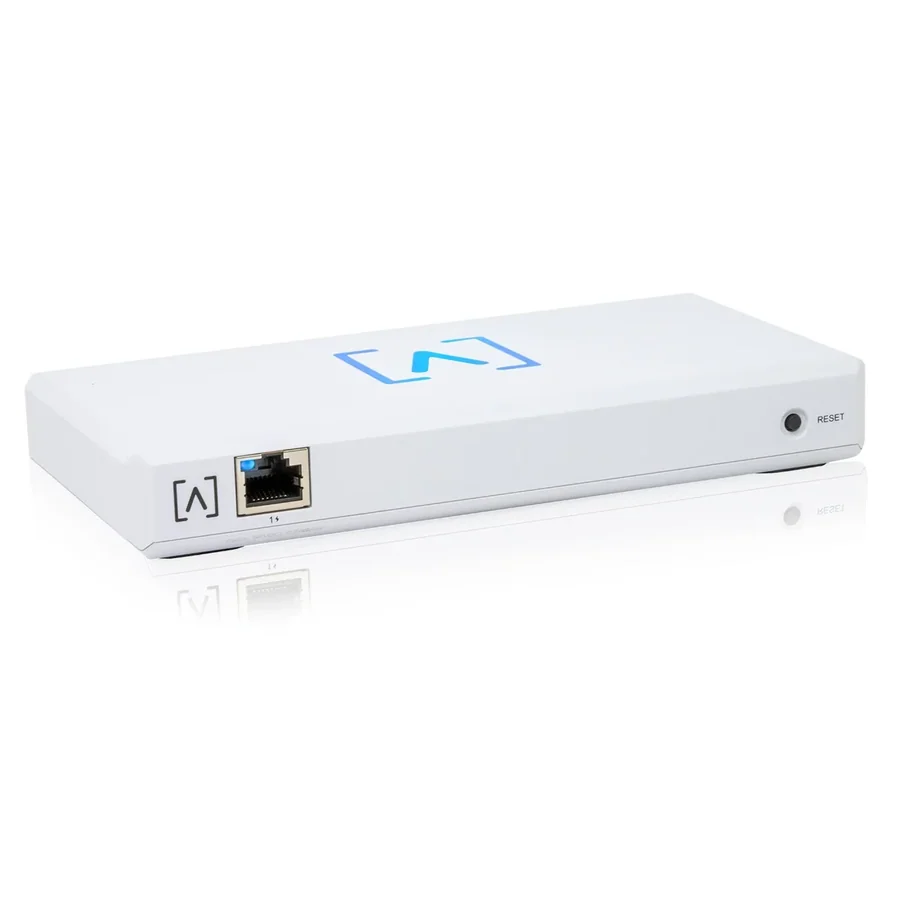

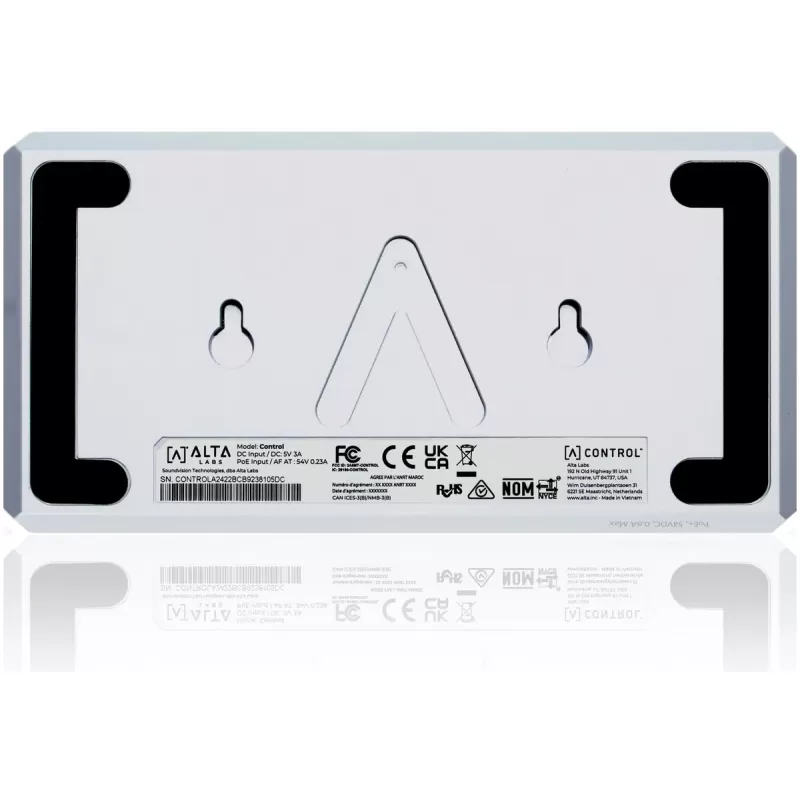

| Revew | ALTA LABS Control Network ControllerAlta Labs Control is a local hardware controller for managing an Alta Labs network: access points, switches and routers. It connects through a Gigabit Ethernet port, manages up to 1,000 Alta Labs devices and supports multi-site management, a mobile app and configuration backup and restore. The controller runs on a quad-core 2.2GHz Qualcomm processor, is powered by PoE+ or 5V USB and draws about 5W in typical use. Initial setup is done over Bluetooth, and it can stand on a desk or mount on a wall.
Key features- Local network management - A hardware controller on your local network, with Reverse Proxy and Port Forwarding support for remote access.
- Up to 1,000 devices - Manages Alta Labs access points, switches and routers, with multi-site management, multitenant support and advanced site permissions.
- AltaPass and content filtering - Multiple passwords for one wireless network with different access levels, plus site and app filtering by the DPI engine (Alta Labs access points required).
- Dashboard and schedules - A customizable dashboard, device cards, internet access schedules, extended access requests and hotspot functionality.
- Simple connection and power - One Gigabit Ethernet port, PoE+ or 5V USB power and a maximum draw of 8W.
- Quick setup - Initial setup over Bluetooth and a mobile app, automatic software updates and device disconnect notifications.
Specifications| Manufacturer | Alta Labs | | Model | Control | | Type | Local hardware network controller | | Maximum devices | 1,000 Alta Labs devices | | Management interface | 1 x GbE RJ45 | | Network interfaces | Ethernet, Bluetooth | | Processor | Quad-core Qualcomm 2.2GHz | | Power | PoE+ (42.4-57V DC) or USB 5V (4.75-5.25V) | | Power consumption | 8W max, 5W typical | | Software features | Reverse Proxy, Port Forwarding, backup and restore, multi-site management | | LEDs | Orange: 10/100Mbps, Blue: 1000Mbps | | Button | Factory reset | | Mounting | Desktop or wall | | Dimensions | 25.7 x 91 x 180 mm | | Weight | 0.38 kg | | Material and color | Injection molded plastic, matte finish, white | | Operating temperature | -5°C to 50°C | | Operating humidity | 5% to 95%, non-condensing | | Certifications | CE, FCC, IC |
|
