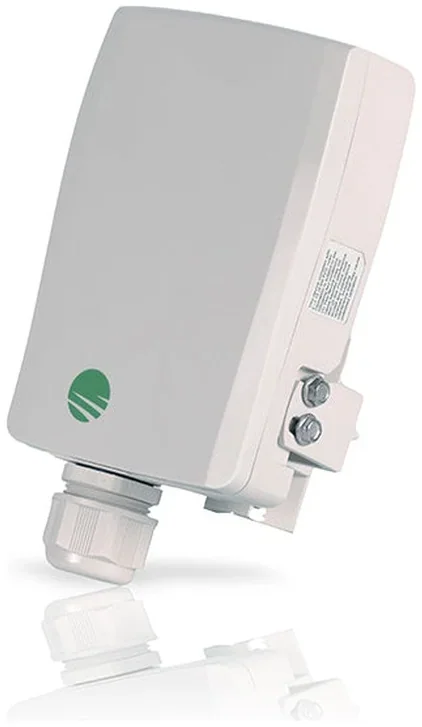

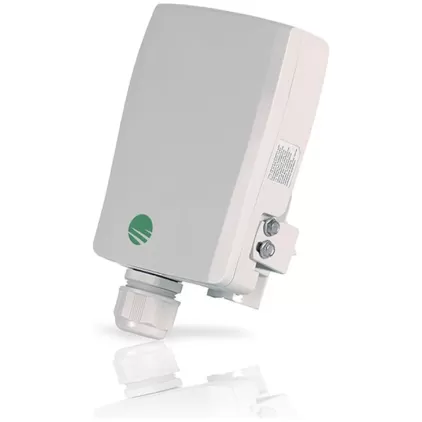

| Revew | Siklu MultiHaul TG MPL-261 Wireless Bridge KitThe Siklu MultiHaul TG MPL-261 is a ready-to-use point-to-point link kit for the license-free 60GHz band. The kit includes two radio units pre-configured to connect to each other. Install both units, point them roughly at each other, and the scanning antennas align the link by themselves. The link delivers up to 1Gbps full duplex over up to 300 m, with AES encryption and an IP65 outdoor rating. It suits security cameras, Wi-Fi hotspots, nearby buildings and business connectivity, and the system is Terragraph certified.
Key features- Auto-connect out of the box - Both units are pre-configured to connect to each other. Installation is a one-person job with no precise alignment needed.
- Scanning antennas - The antenna scans 90° horizontally and 25° vertically and aligns itself with the other side automatically, with ±20° mechanical tilt on the supplied mount.
- Up to 1Gbps full duplex - Over-the-air rate of up to 4,600Mbps and throughput of up to 1,000Mbps in each direction, over a 2160MHz channel.
- Interference-free 60GHz - Operation at 57-66GHz with 4 channels and narrow beams for immunity to interference and jamming.
- Security - 128-bit AES over the air, GUI over HTTPS, CLI over SSH and IP-less operation of the remote side.
- Everything in the box - Per side: radio unit with attached mounting kit, metal bands, indoor PoE power supply with AC cable and a cable gland.
Specifications| Manufacturer | Siklu | | Series | MultiHaul TG | | Model | MultiHaul TG MPL-261 | | Part number | MPL-261-CNN | | Type | Point-to-point link kit with two units | | Frequency | 57-66GHz, TDD/TDMA, 4 channels | | Channel bandwidth and modulation | 2160MHz, BPSK to QAM16, up to 10 adaptive levels | | Throughput | Up to 1,000Mbps full duplex (OTA rate up to 4,600Mbps) | | Reach | Up to 300 m | | Antenna scanning | 90° horizontal, 25° vertical | | Interfaces | Per side: 1x RJ-45 1GbE with PoE In | | Power input | Per side: PoE In (IEEE 802.3af or passive), 11W | | Encryption | AES 128-bit | | Management | Web GUI, CLI, NETCONF, SNMP | | Certification | Terragraph | | Ingress protection | IP65 | | Operating temperature | -45 to +55°C | | Dimensions | Per side: 108 x 157 x 52 mm | | Weight | Per side: 1.7 kg |
In the box- 2 MultiHaul TG radio units with attached mounting kit
- Metal bands
- 2 indoor PoE power supplies with AC cable
- All Weather Shell cable glands
|
