KVM switch ATEN VE1821 HDMI CAT6 EXTENDER VE1821

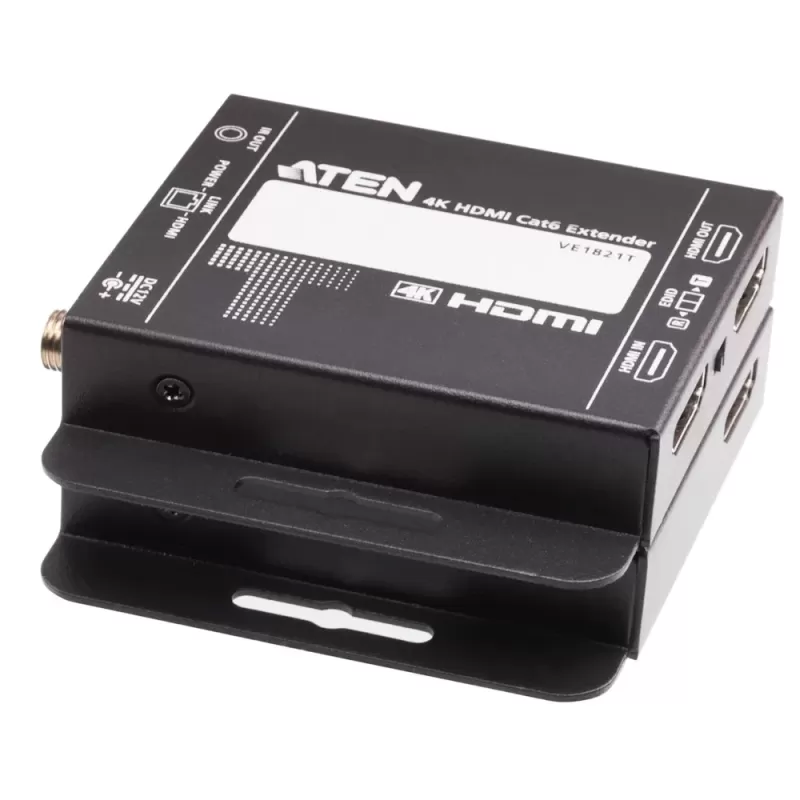

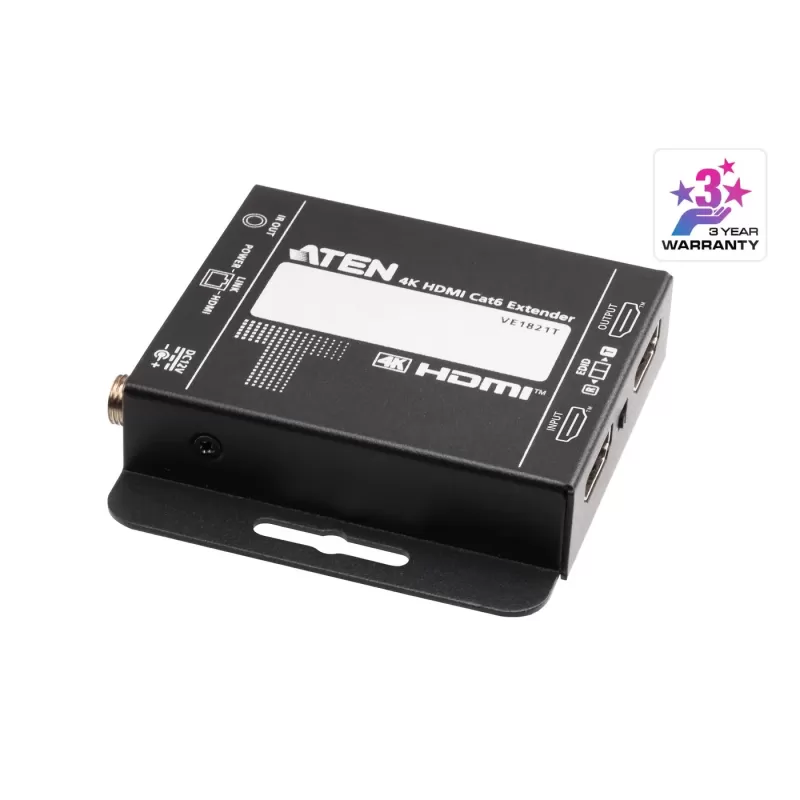

The VE1821 is an advanced extender for extending an HDMI signal in 4K@30Hz quality up to 40 meters over a single Cat 6 network cable, with no latency and no loss of quality. It comes as a complete kit (transmitter + receiver), with support for PoC power delivery over the cable, full IR control, a local HDMI output for viewing the source, and a smart EDID mechanism for setting the optimal resolution. Especially suited for compact installations in meeting rooms, display setups, education, and home AV systems.

• HDMI signal transmission in 4K quality up to 40 meters over a Cat 6 cable (or 30 meters with Cat 5e)

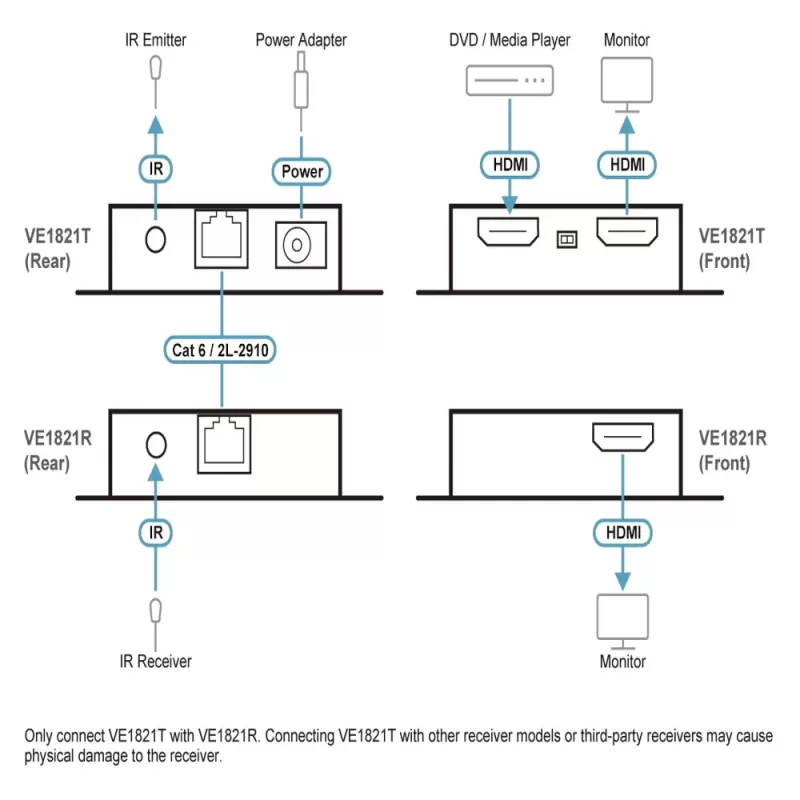

• Includes a transmitter unit (Tx) and a receiver unit (Rx) – a complete solution
• PoC support – no need for separate power at the receiver unit
• Local HDMI output on the Tx – for local viewing or cascading
• Full support for HDMI (4K, 3D, Deep Color) and HDCP 1.4
• Remote control of the HDMI source via IR transmission
• Smart EDID – includes an EDID Mode switch and the ability to copy from the desired display

• 4096×2160 / 3840×2160 @ 30Hz (4: 4:4)
• Transmission distance: 40 m with Cat 6 / 30 m with Cat 5e
• Video input (Tx only): 1× HDMI Type A
• Distance: up to 3 m
• Impedance: 100Ω
• Video outputs: Tx: 1× local HDMI, Rx: 1× HDMI
• Impedance: 100Ω
• Distance: up to 3 m
• Maximum data rate: 10.2Gbps (3.4Gbps per channel)
• Maximum pixel clock: 340MHz
• Standards compatibility: HDMI (3D, Deep Color), HDCP 1.4
• Supports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, DTS-HD MA
• Bidirectional IR – mini-jack
• EDID Mode switch (EDID Copy / Default / Auto)
• Control channel: RJ-45 for signal transmission + PoC
• Tx: DC 12V / 1.86W
• Rx: PoC / 0.87W
• Operating temperature: 0–40°C
• Storage temperature: -20–60°C
• Humidity: 20–90%, non-condensing
• Material: metal
• Dimensions (with mounting bracket): 7.95×6.80×1.65 cm
• Dimensions (without bracket): 5.75×6.80×1.65 cm
• Weight: 0.12 kg per unit
• Warranty: one year

Package includes:

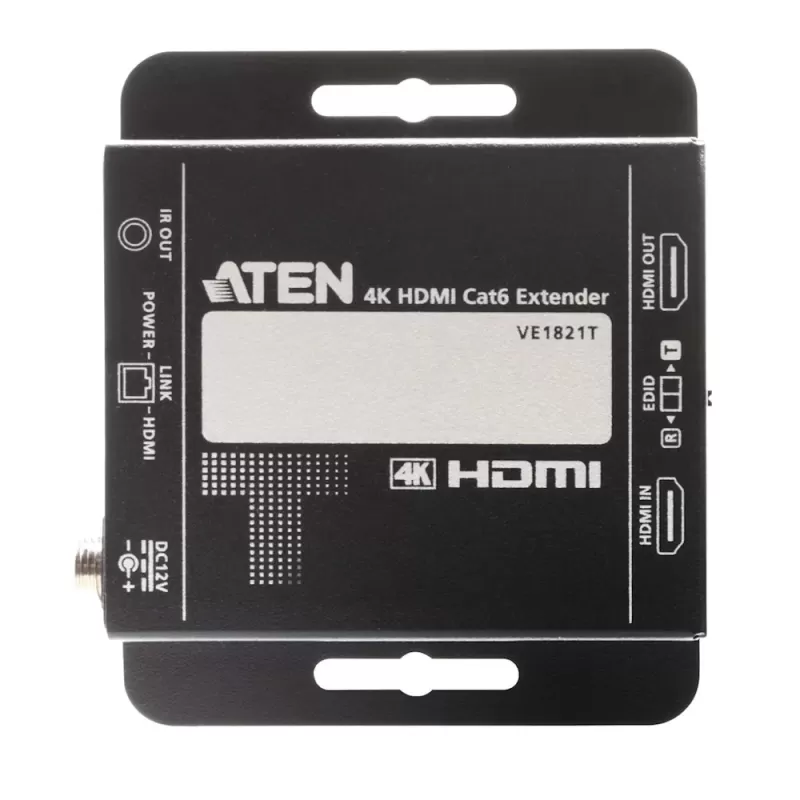

• VE1821T transmitter unit

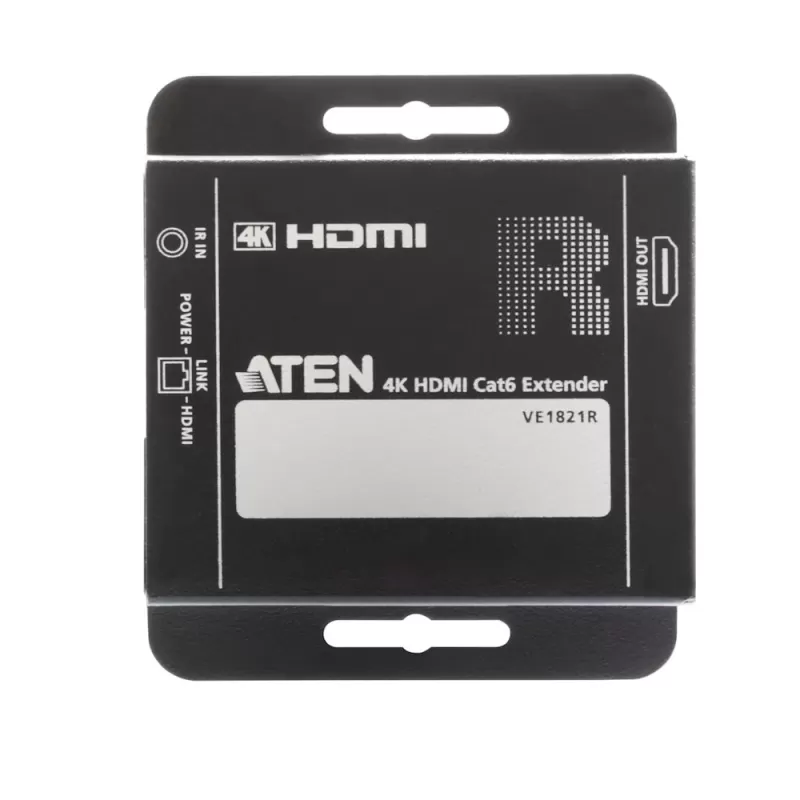

• VE1821R receiver unit
• One power supply only (Tx)
• IR transmitting cable
• IR receiving cable
• Installation guide.
