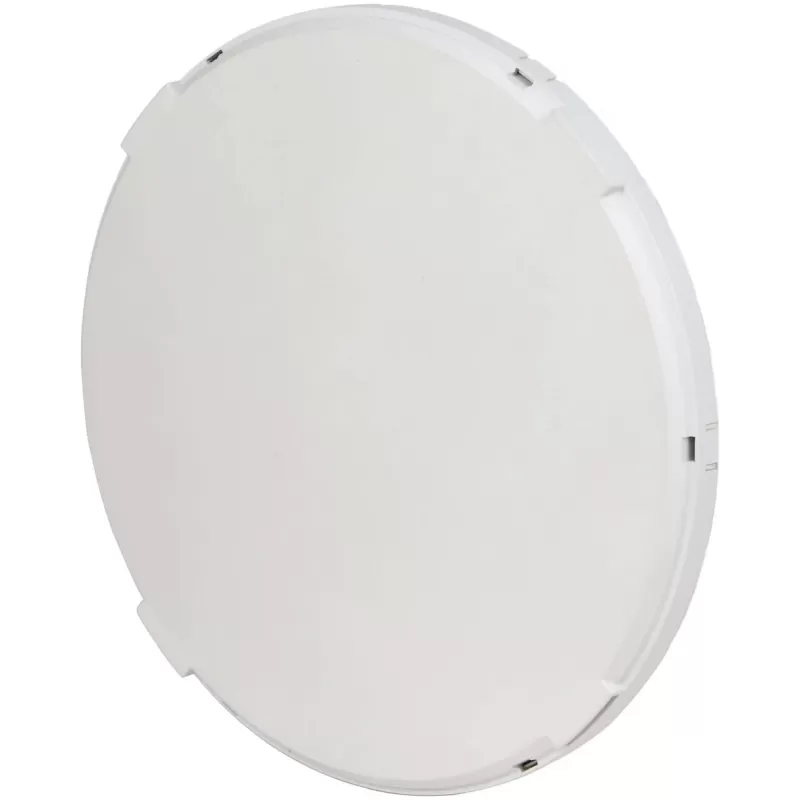

Antenna Siklu V-band 60GHz 1ft AX-ANT-1ft-60GHz

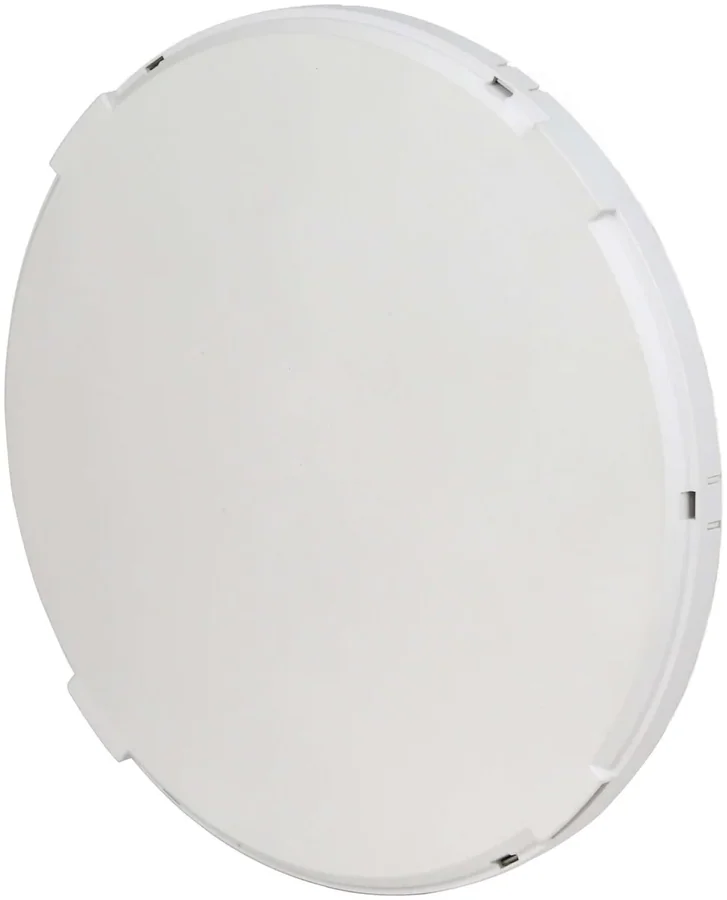

Siklu V-band 60GHz 1ft Antenna

The AX-ANT-1ft-60GHz is a Siklu 1ft external antenna for the 57-66GHz V-band with 42dBi gain. It is designed for the MultiHaul TG T280 long-range terminal unit, which can be fitted with a 0.5ft, 1ft or 2ft antenna depending on the required distance.

With an external antenna, the T280 reaches longer distances than 60GHz units with integrated antennas, both in point-to-multipoint Terragraph networks and in point-to-point links between two T280 units. The antenna is field installable and replaceable, and the mounting kit is sold separately.

Key features

• 42dBi gain - A 1ft antenna with 42dBi gain, between the 0.5ft (36dBi) and 2ft (48dBi) options of the MultiHaul TG LR series.
• For MultiHaul TG T280 - Designed for the Siklu T280 terminal unit, both with an N366 node in PtMP networks and in PtP links between two T280 units.
• Field replaceable - The antenna is a field installable and replaceable unit (FRU), so link range can be upgraded without replacing the radio.
• FCC and ETSI - The antenna meets FCC and ETSI requirements for the 57-66GHz band.
