PCI-E Network Card 10Gtek 1G 4-ports PCI-Ex4

10Gtek 1G 4-ports PCI-Ex4 Network Card

The 10Gtek I350-GE-4T-X4 is a network card with four Gigabit Ethernet RJ-45 ports, built on the Intel Ethernet I350-AM4 controller. It is compatible with the Intel I350-T4 and is designed for servers, workstations and computers that need several separate network connections, for example a virtualization host or a link to a storage network.

The card installs in a PCI Express 2.1 x4 slot and also fits x8 and x16 slots. Each port works over CAT5 cable up to 100 m. The controller includes power-saving features, and both a full-height and a low-profile bracket are in the box.

Key features

• Four Gigabit ports - Four separate RJ-45 ports at 1Gbps each, over CAT5 copper cable up to 100 m.
• Intel I350-AM4 controller - The card is built on the bridgeless Intel Ethernet I350 controller and is compatible with the Intel I350-T4.

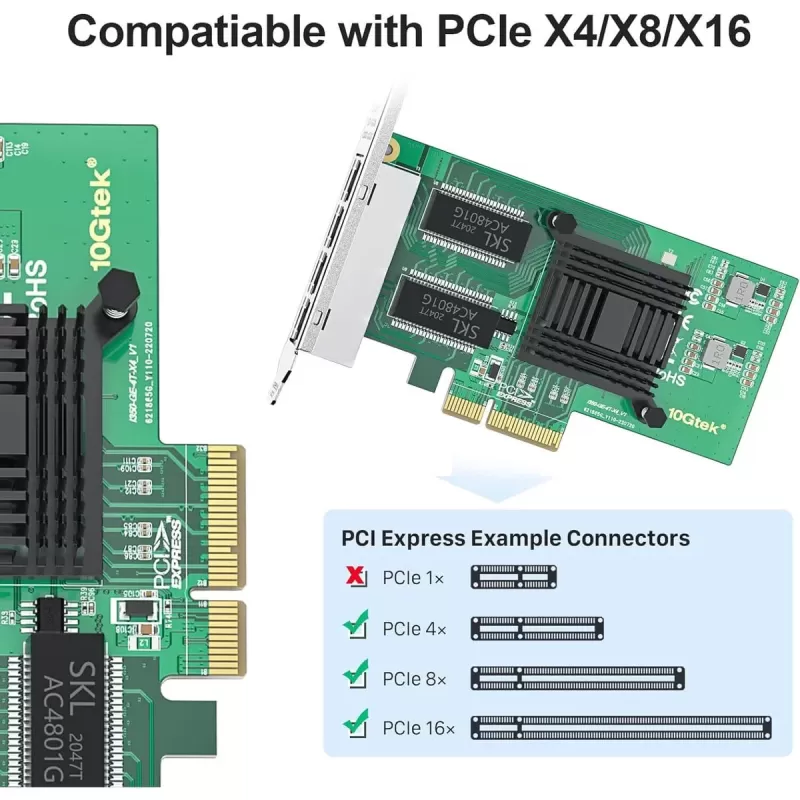

• PCIe 2.1 x4 interface - A PCI Express 2.1 link at 5.0GT/s over x4 lanes. The card fits x4, x8 and x16 slots, but not x1 slots.
• Virtualization and iSCSI - Intel VT-c, flexible port partitioning with QoS and scalable iSCSI for cost-effective SAN connectivity, plus intelligent offloads from the processor to the card.
• Power saving - Energy Efficient Ethernet (EEE) and DMA Coalescing reduce power consumption. The card is halogen-free.

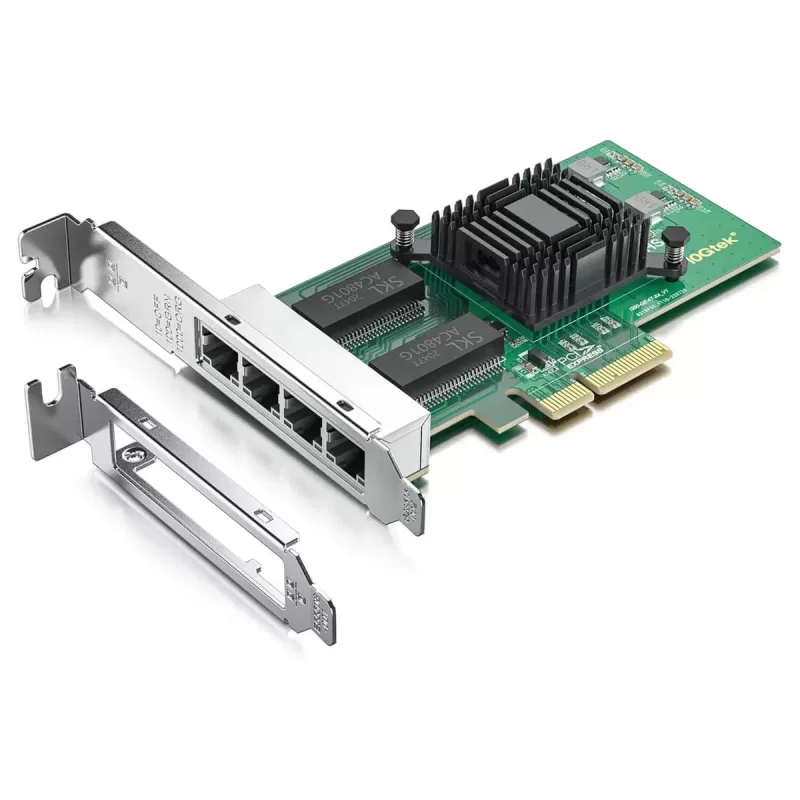

• Two brackets included - Full-height and low-profile brackets for standard and slim cases. The card does not support hot swapping.

Specifications

In the box

• 10Gtek I350-GE-4T-X4 network card
• Full-height bracket
• Low-profile bracket
