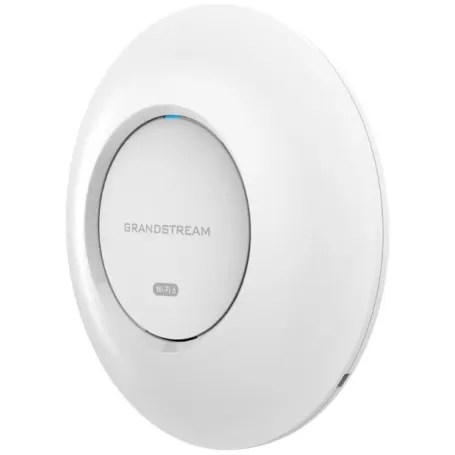

Access point Grandstream GWN7660E GWN7660E-IL Color:white

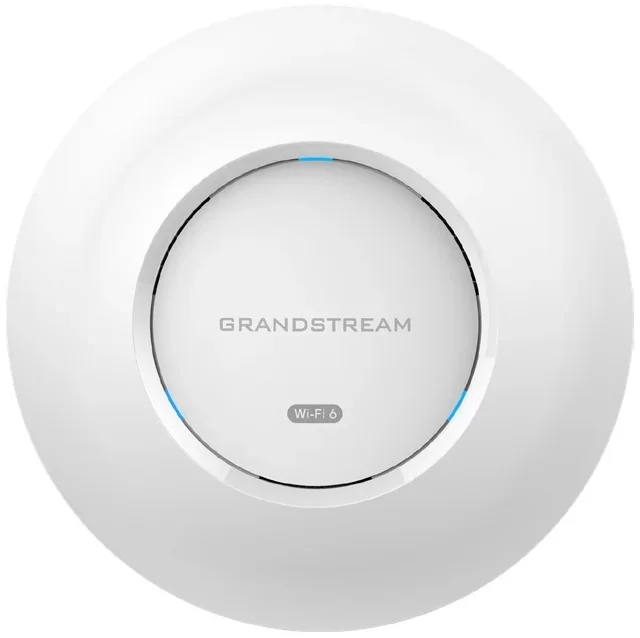

Access Point Grandstream GWN7660E

The Grandstream GWN7660E is an AX3000 Wi-Fi 6 business access point for ceiling or wall mounting. It works on both bands simultaneously with 2x2:2 MU-MIMO on 2.4GHz and 3x3:2 on 5GHz, XTRA Range technology and beamforming, delivering about 3Gbps of aggregate wireless throughput and up to 175 m of coverage.

The access point supports up to 256 concurrent clients and 32 SSIDs, is powered by PoE or PoE+ through a single Gigabit port and includes an embedded controller that manages up to 50 GWN access points. It can also be managed from the GDMS Networking cloud or GWN Manager software. It suits offices, shops, hotels and voice-over-Wi-Fi deployments.

Key features

• AX3000 Wi-Fi 6 - Up to 2402 Mbps on 5GHz and 573.5 Mbps on 2.4GHz, channels up to 160MHz on 5GHz and about 3Gbps aggregate throughput.
• MU-MIMO and long range - 2x2:2 on 2.4GHz and 3x3:2 on 5GHz, 5 internal antennas, XTRA Range and beamforming for up to 175 m coverage.
• High client density - Up to 256 concurrent devices and 32 SSIDs (16 per band), with advanced QoS for real-time applications such as voice calls.
• No external controller needed - Embedded controller for up to 50 GWN access points, plus GDMS Networking cloud or GWN Manager software for up to 3,000 APs.
• Easy installation and security - PoE or PoE+ power with up to 12.95W consumption, ceiling and wall mounting kit in the box, WPA3, secure boot and a unique password per unit.

Specifications

In the box

• GWN7660E access point
• Mounting kit
• Quick start guide
