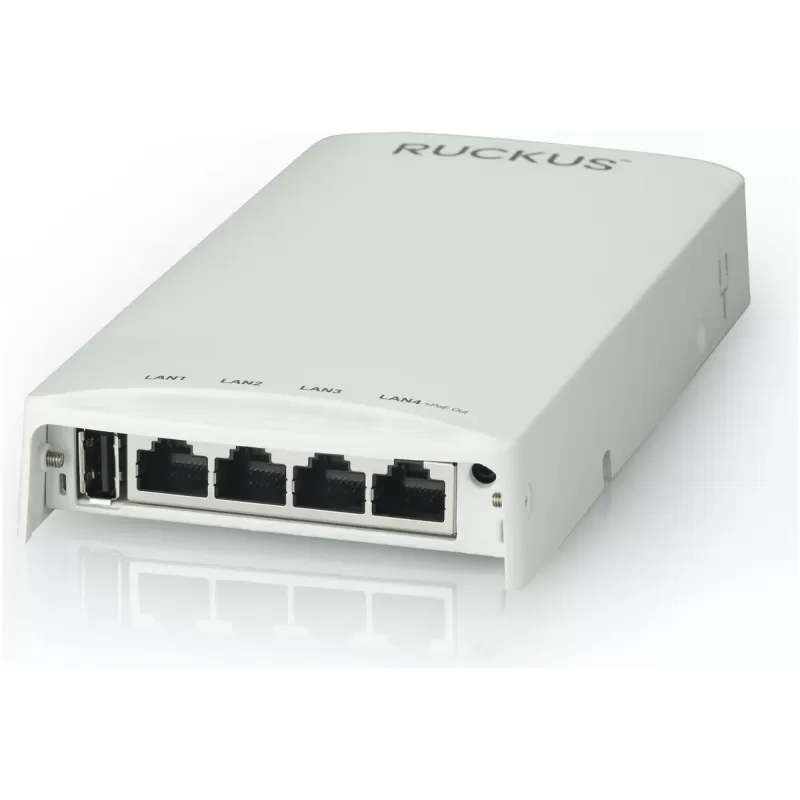

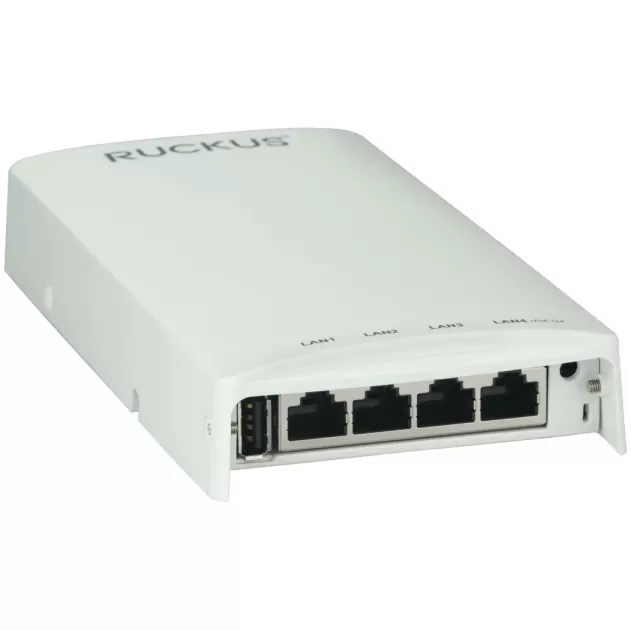

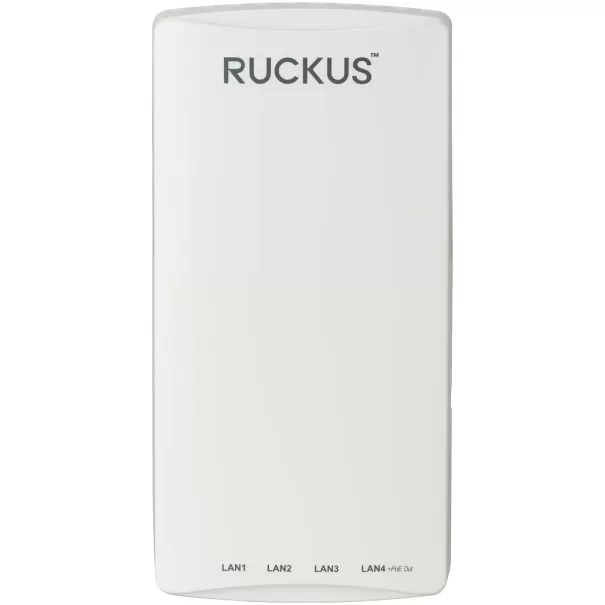

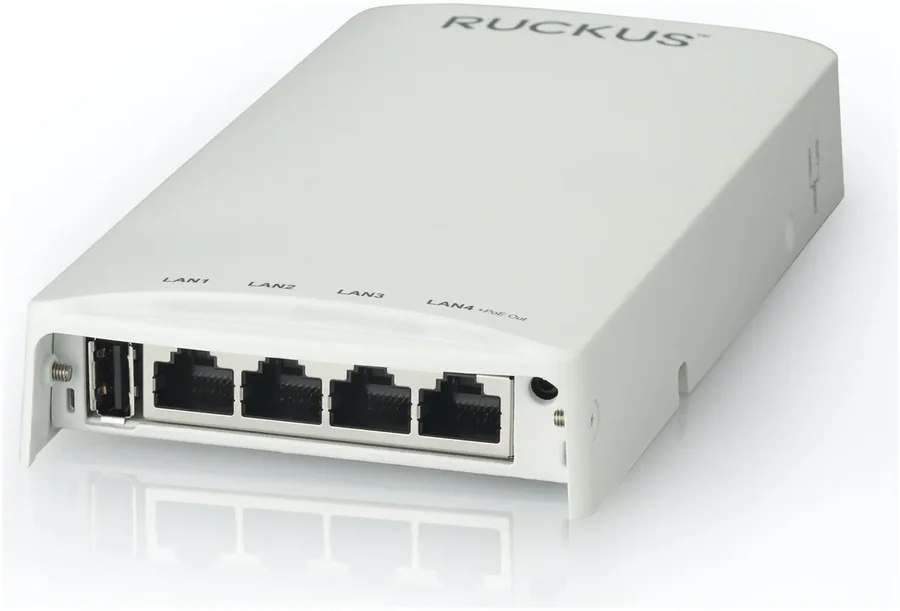

| Revew | Ruckus H550 Wi-Fi 6 Wall-Plate Access PointThe Ruckus H550 is a dual-band Wi-Fi 6 (802.11ax) 2x2:2 access point in a slim design that mounts over a standard electrical wall box. It combines an access point, a 4-port Gigabit Ethernet switch and an IoT gateway with Bluetooth Low Energy and Zigbee in one unit, with peak PHY rates of up to 1,200 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. It is designed for hotel rooms, student residences, apartments and other multi-dwelling units: an IPTV set-top box, IP phone or networked minibar connects by cable while the room gets full Wi-Fi coverage. One port supplies 802.3af PoE to power another device. The access point is powered by PoE from a switch or injector (power supply not included), and all features are available with 802.3bt power. The Z200 SKU is the Ruckus regional version for Israel.
Key features- Wi-Fi 6 with BeamFlex+ - Concurrent dual-band 2x2:2 radios, BeamFlex+ adaptive antennas that steer the signal to each device, MU-MIMO and up to 512 clients.
- Built-in 4-port switch - Four Gigabit ports connect in-room wired devices without extra cabling, and one of them provides 802.3af PoE out.
- IoT without a separate network - Concurrent Bluetooth Low Energy and Zigbee radios for smart locks, sensors and building automation, plus a USB 2.0 port for add-on radio modules.
- ChannelFly and SmartCast - ChannelFly automatically picks the least congested channels, and SmartCast prioritises video and voice traffic.
- Flexible management - Managed from the cloud, by SmartZone or ZoneDirector controllers or as a standalone AP, with SmartMesh wireless meshing.
- Discreet installation - A 29.3 mm thin body mounts over a US or EU electrical wall box, with an optional bracket for surface wall mounting.
Specifications| Manufacturer | Ruckus | | Model | H550 | | Part number | 901-H550-Z200 | | Wi-Fi standard | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) | | Radio | 2x2:2, concurrent 2.4 GHz and 5 GHz, MU-MIMO | | Peak PHY rate | 574 Mbps (2.4 GHz), 1,200 Mbps (5 GHz) | | Channel width | 20/40/80 MHz | | Clients | Up to 512 | | SSIDs | 8 per radio | | Peak transmit power | 19 dBm (2.4 GHz), 22 dBm (5 GHz) | | Security | WPA2, WPA3-Personal, WPA3-Enterprise, OWE, Dynamic PSK | | IoT | Concurrent Bluetooth LE and Zigbee | | Ethernet ports | 1 x 1GbE uplink with PoE in, 4 x 1GbE (one with 802.3af PoE out) | | USB | 1 x USB 2.0 Type A | | Power | PoE 802.3af/at/bt (all features with 802.3bt Class 5) | | Power consumption | Up to 32.21 W | | Management | Cloud, SmartZone, ZoneDirector, standalone | | Dimensions | 89.5 x 178.5 x 29.3 mm | | Weight | 278 g (350 g with bracket) | | Operating temperature | 0 to 40°C |
|
