Access point Ruckus R750 901-R750-Z200

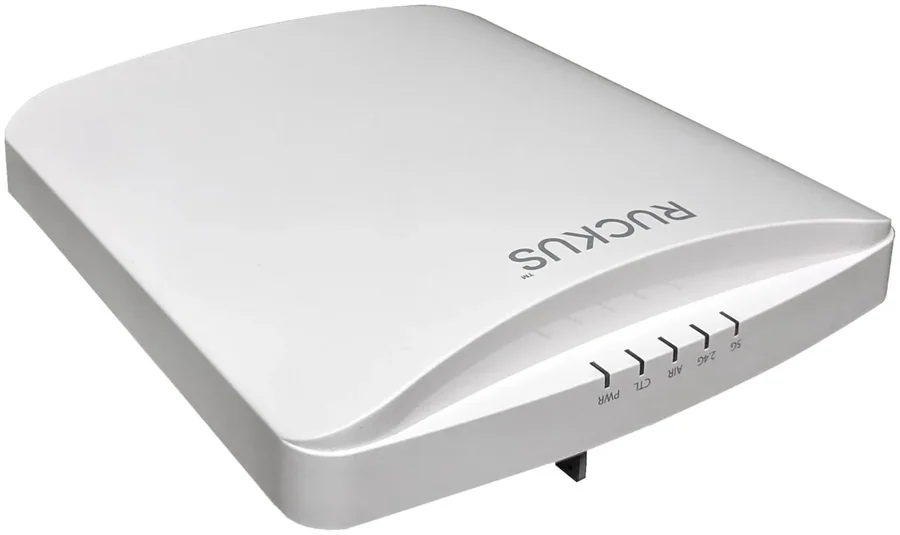

Ruckus R750 Wi-Fi 6 Indoor Access Point

The Ruckus R750 is an indoor Wi-Fi 6 (802.11ax) access point for ultra-dense environments and the first AP certified by the Wi-Fi Alliance as Wi-Fi CERTIFIED 6. It runs 2.4GHz and 5GHz concurrently with 8 spatial streams (4x4:4 on each band), OFDMA, MU-MIMO and TWT, and serves up to 1024 clients. It suits auditoriums, conference centers, large classrooms and transit hubs, including 4K video streaming and voice.

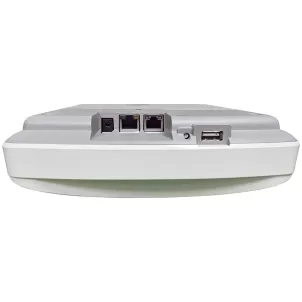

A 2.5GbE port with PoE input lets the AP deliver its full wireless capacity, alongside a 1GbE port and a USB 2.0 port. Built-in BLE and Zigbee let IoT sensors join the same network. The AP can be managed by SmartZone, ZoneDirector, Unleashed, the cloud or in standalone mode. An acoustic drop ceiling bracket is included; a power adapter is not.

Key features

• Wi-Fi 6 with 8 streams - 4x4:4 at 2.4GHz and 5GHz with OFDMA, MU-MIMO and TWT, up to 1024 clients.
• 2.5GbE port - A 2.5GbE port with 802.3af/at/bt PoE input and an extra 1GbE port.
• BeamFlex+ antennas - Adaptive antennas with polarization diversity and over 4,000 patterns per band.
• Built-in IoT - Onboard BLE and Zigbee and a USB 2.0 port for additional wireless technologies.
• Security - WPA3, OWE, Dynamic PSK and WIPS/WIDS to protect the network and users.
• Flexible management - SmartZone, ZoneDirector, Unleashed, cloud management or standalone operation.

Specifications

In the box

• Ruckus R750 access point
• Acoustic drop ceiling bracket
