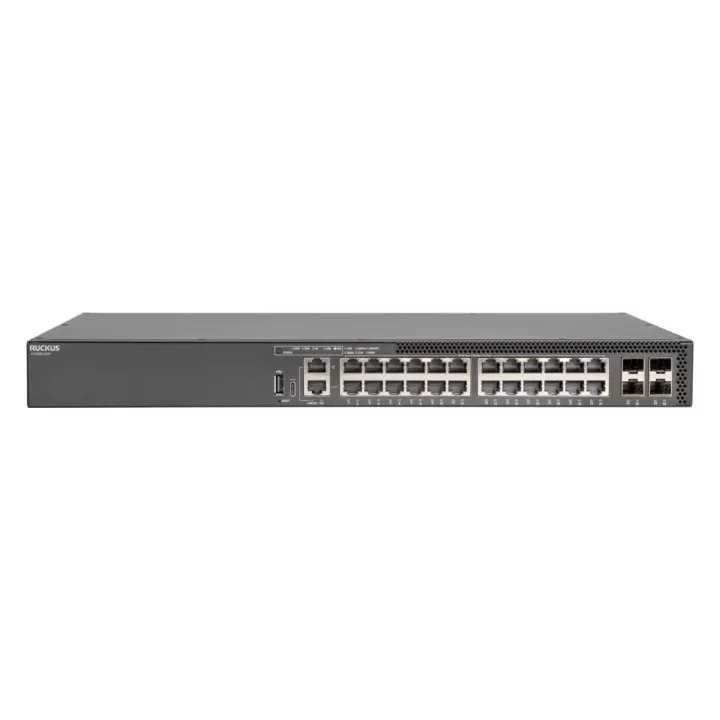

Switch Ruckus ICX8200-24ZP

Network Switch Ruckus ICX8200-24ZP

The Ruckus ICX8200-24ZP is a managed, stackable access switch from the ICX 8200 series designed for Wi-Fi 6, 6E and 7 networks. It has 24 RJ-45 ports at 100/1000/2500 Mbps with PoE+++ (802.3bt) up to 90W per port and four 1/10/25 GbE SFP28 ports for uplinks or stacking.

The 740W PoE budget powers 24 devices at 30W or up to 8 devices at 90W, such as high-end access points, cameras and IoT devices. The switch stacks up to 12 units, supports Layer 3 routing and is managed via RUCKUS One in the cloud or SmartZone. According to the manufacturer the power cord is not included.

Key features

• 24 x 2.5Gbps ports with 90W PoE - All 24 ports run at up to 2.5Gbps with 802.3bt PoE+++, so next-generation access points get both bandwidth and power over one cable.
• 740W PoE budget - Up to 24 ports at 30W, 12 ports at 60W or 8 ports at 90W simultaneously.
• 25G uplinks - Four 1/10/25 GbE SFP28 ports connect to the distribution layer or form a stack, with 320 Gbps switching capacity.
• Stacking of up to 12 switches - Stacking over up to four 25G ports with 1.2Tbps aggregate bandwidth and up to 10 km between units, so several closets are managed as one switch.
• Layer 3 and VXLAN - Static routing and RIP are built in. OSPF, VRRP, VRF, GRE, PIM, PBR, BGP and VXLAN require the ICX8200-PREM-LIC license.
• Management and security - RUCKUS One cloud, SmartZone, web interface and CLI. Supports 802.1X, MAC authentication, DHCP snooping, Dynamic ARP Inspection and TPM.

Specifications
