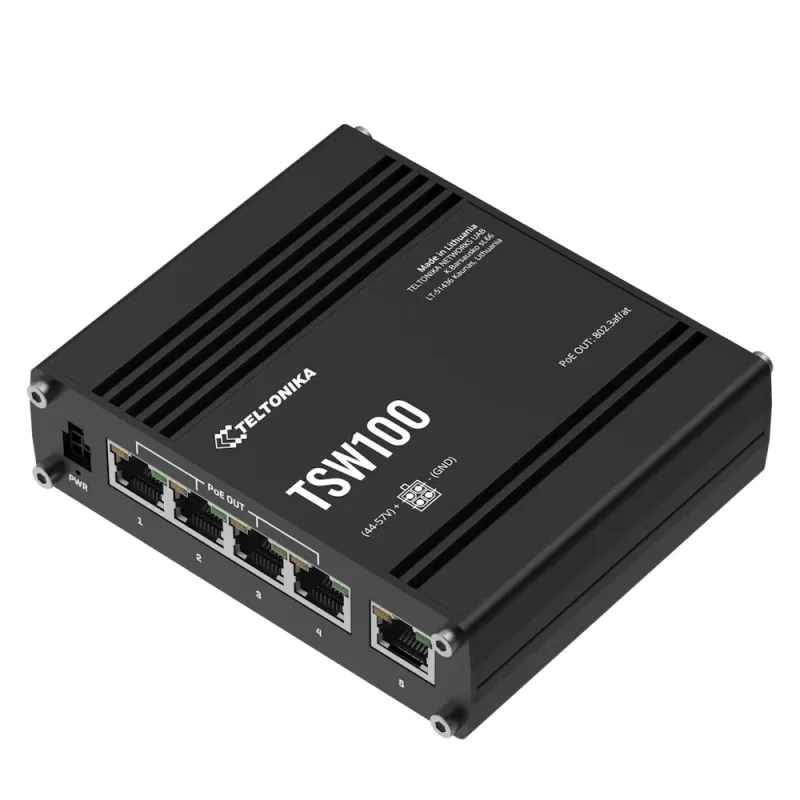

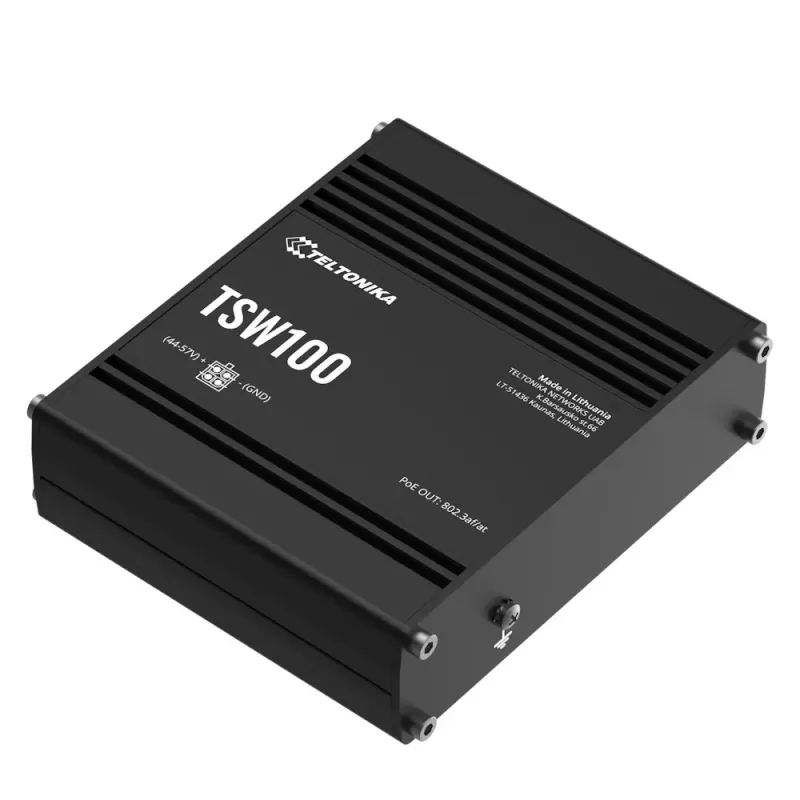

Switch Teltonika TSW100 PoE TSW100

The Teltonika TSW100 is an unmanaged industrial switch with five Gigabit Ethernet ports, four of which are PoE+ ports (802.3af/at) with a total power budget of 120W. It features a rugged aluminum housing, Jumbo Frames support, and industrial standards, and is especially suited for security cameras, IoT, and smart projects.

• 5 Gigabit Ethernet ports (10/100/1000Mbps) with Auto MDI/MDIX
• 4 PoE+ ports (802.3af/at) with up to 30W per port, total budget 120W
• MAC table – up to 2K entries
• Industrial protocol – Profinet Class A support (on dedicated models)
• Operating voltage – 7–57V DC, PoE Out input voltage: 44–57V DC
• Power consumption – Idle: 2W / Max without PoE: 9W / Max with PoE: 129W
• Indicators – 1 power LED, 10 network activity LEDs
• Structure – aluminum housing, IP30 rating
• Operating temperature range – -40°C to +75°C

• Ports – 5× RJ45 Gigabit Ethernet (4× PoE+)
• PoE – 802.3af/at, up to 30W per port, 120W total budget
• Bandwidth – 10Gbps (Non-blocking)
• Packet Buffer – 128KB
• MAC Table – 2K
• Jumbo Frame – 9216B
• Power Input – 7–57V DC (4-pin industrial connector)
• Power Consumption – Idle: 2W / No PoE: 9W / Full PoE: 129W
• Dimensions – 115 × 32.2 × 101.2 mm
• Weight – 350g
• Casing – rugged aluminum, IP30 rating
• Operating Temp – -40°C to +75°C
• Humidity – 5%–95% non-condensing
• Warranty: two years

Package includes:

• Teltonika TSW100 switch
• 62W power supply
• Quick start guide
