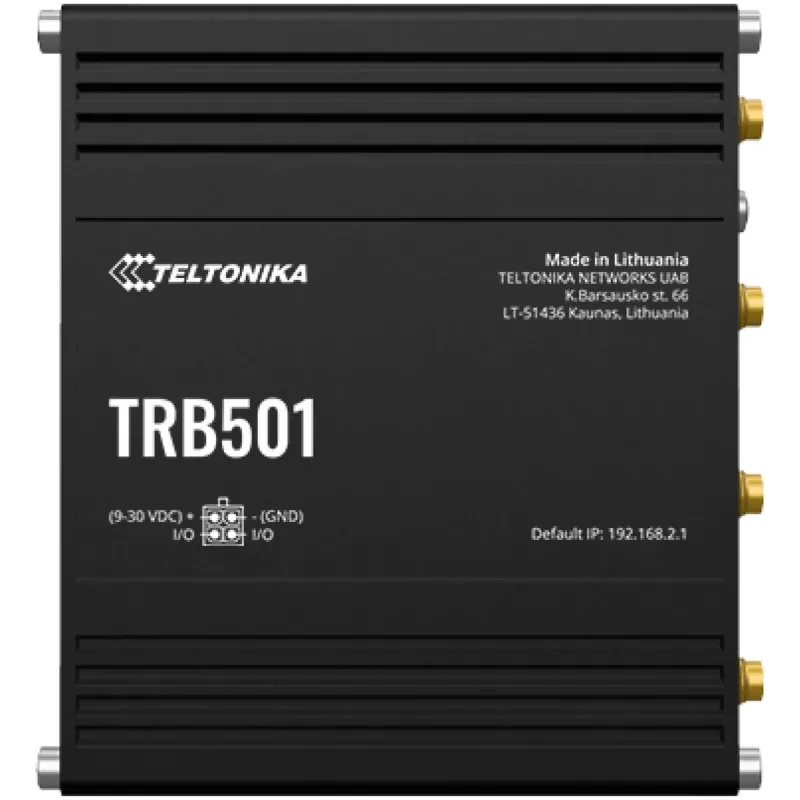

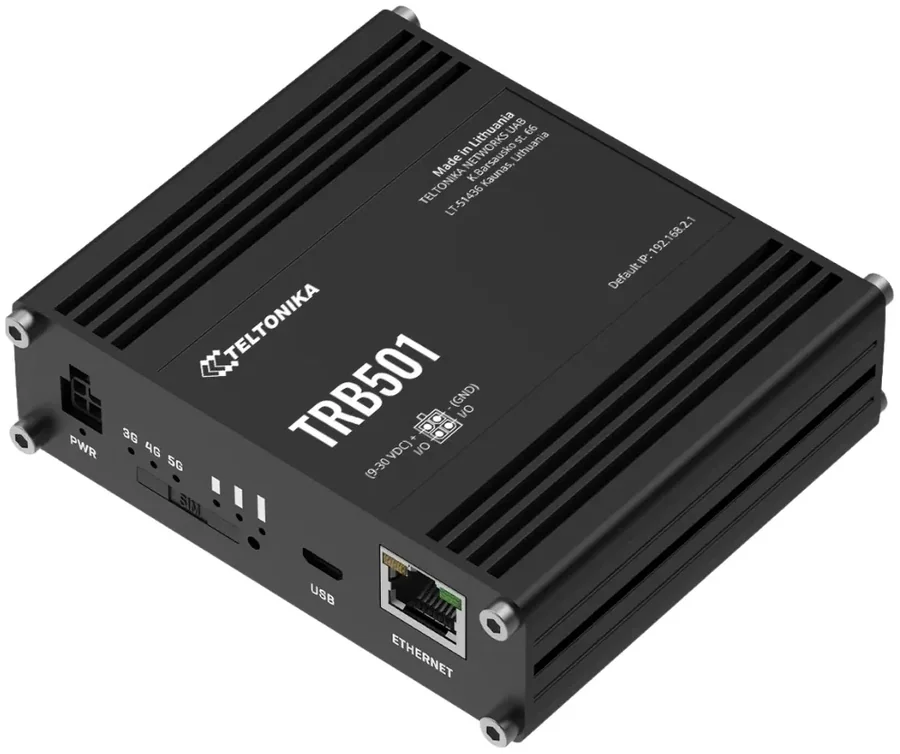

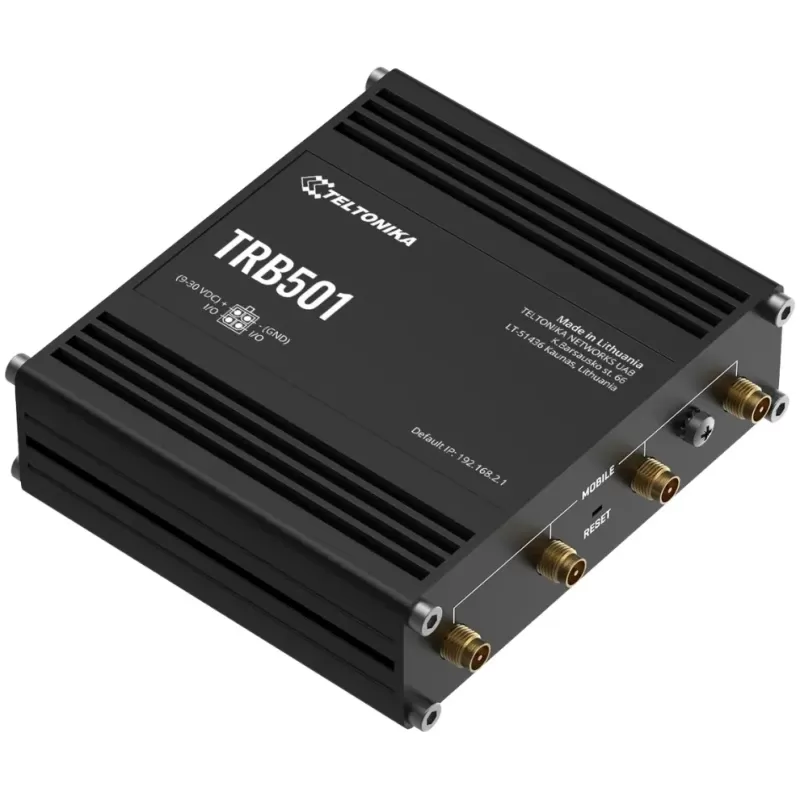

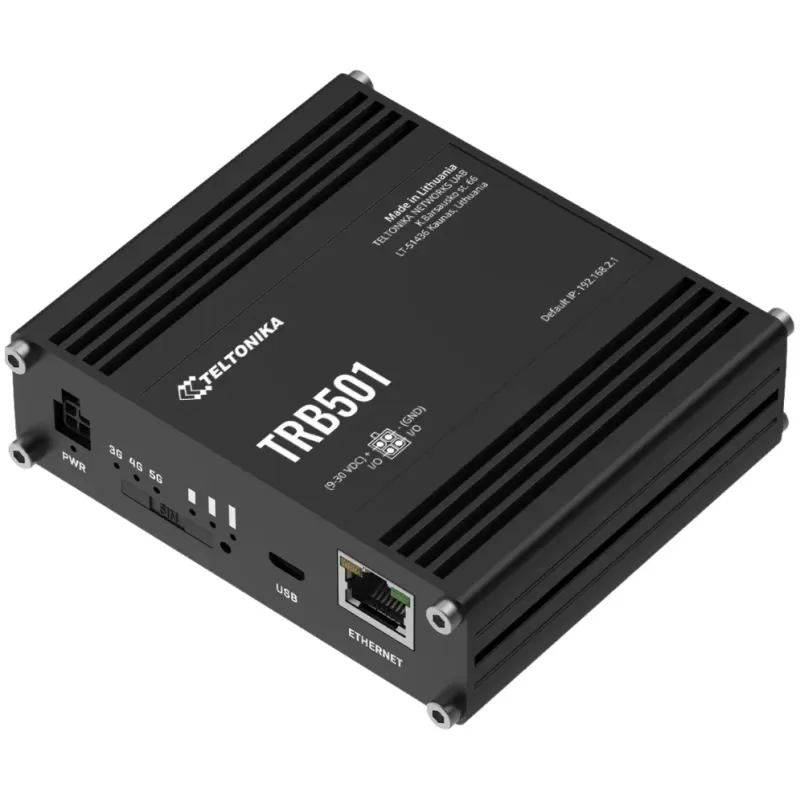

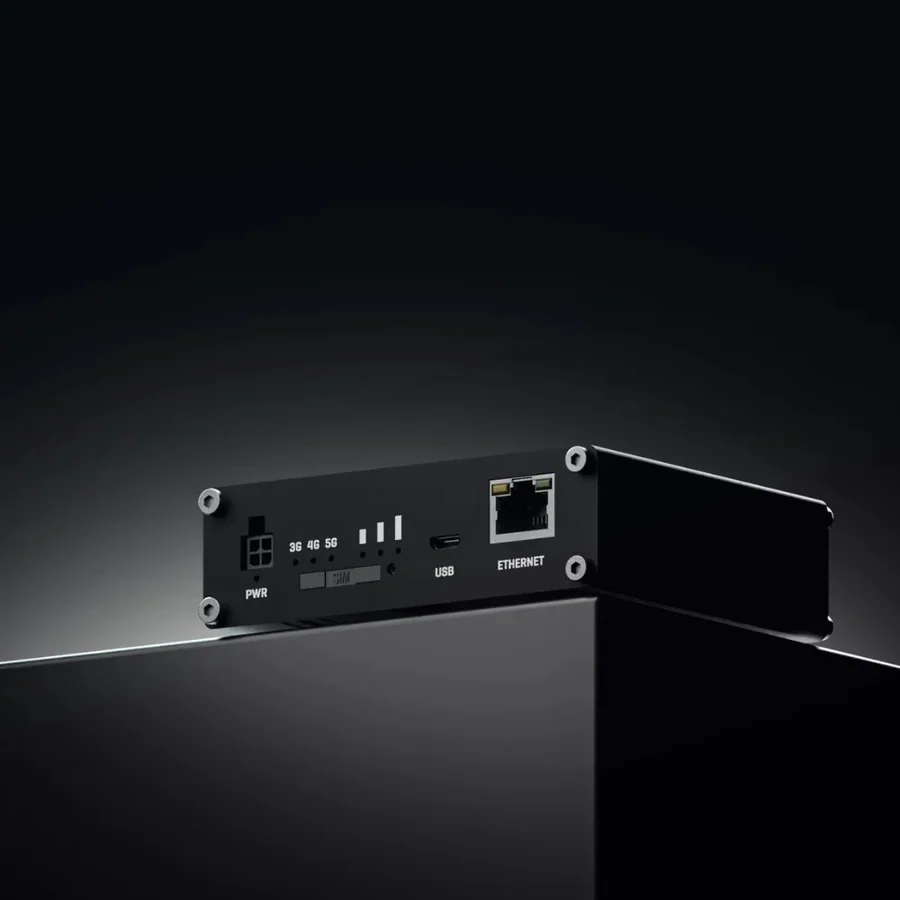

| Revew | Teltonika TRB501 Industrial 5G Gateway eSIMThe Teltonika TRB501 is a compact industrial 5G gateway built to connect POS systems, security installations, controllers and IIoT equipment. Its modem supports 5G Sub-6GHz SA and NSA with 3GPP Release 16 carrier aggregation and downloads of up to 3.4Gbps, falling back to 4G LTE Cat 19 or 3G when 5G is unavailable. This version (TRB5011A0000) adds an eSIM with up to 7 profiles next to the Mini SIM slot, with automatic switching between them, plus a 2.5Gbps Ethernet port and two digital I/Os. The OpenWrt-based RutOS provides VPN, firewall and industrial protocols such as Modbus, DNP3 and DLMS, and the device can be managed remotely with Teltonika RMS.
Key features- Next-gen 5G - 5G Sub-6GHz SA/NSA with Release 16 carrier aggregation, up to 3.4Gbps down and 900Mbps up, with 4G LTE Cat 19 and 3G fallback.

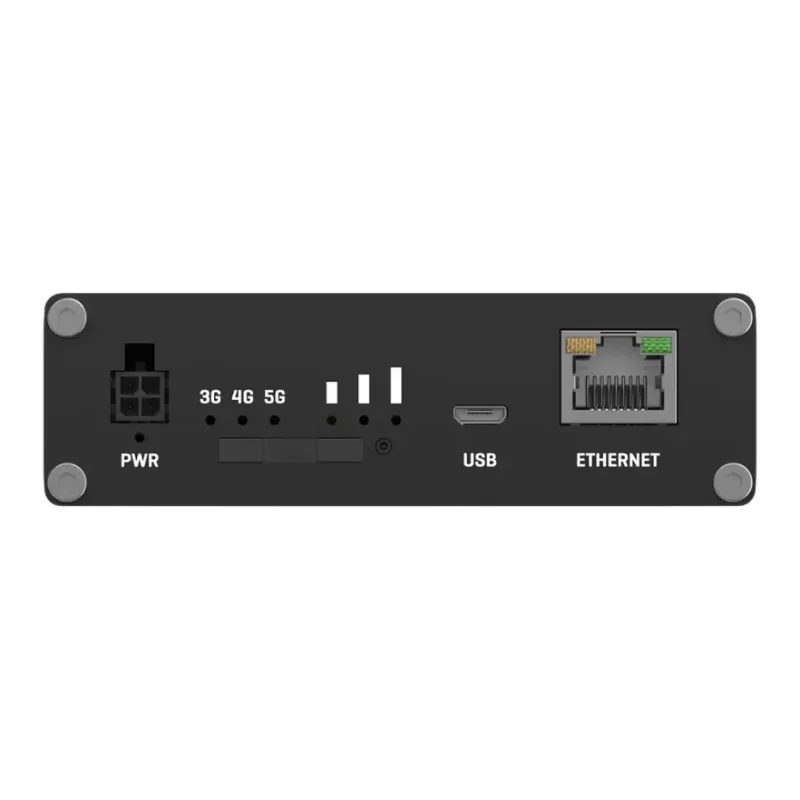

- 2.5Gbps Ethernet - One RJ45 port at 10/100/1000/2500Mbps passes 5G speeds to connected equipment and also accepts passive PoE power.
- Mini SIM and eSIM - A Mini SIM (2FF) slot and a consumer eSIM with up to 7 profiles, with auto-switch on weak signal, data limit, roaming or connection loss.
- IIoT protocols - Modbus TCP, DNP3, DLMS/COSEM, OPC UA and MQTT for SCADA, smart grid and telemetry integration.
- RutOS, VPN and remote management - OpenVPN, IPsec, WireGuard, Tailscale, ZeroTier and more, firewall with DDoS prevention and VLANs, plus WebUI, SSH, SNMP, TR-069 and Teltonika RMS management.
- Compact industrial build - IP30 aluminum housing measuring 100 x 30 x 93.4 mm, 9-30VDC input with protections, and operation from -40°C to 75°C. DIN rail, wall or surface mounting with an optional kit.
Specifications| Manufacturer | Teltonika | | Model | TRB501 | | Order code | TRB5011A0000 (eSIM version, EU PSU) | | Cellular modem | 5G Sub-6GHz SA/NSA up to 3.4Gbps DL / 900Mbps UL; 4G LTE Cat 19 up to 1.6Gbps; 3G up to 42Mbps | | Standard | 3GPP Release 16 | | 5G NR bands | n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n71, n75, n76, n77, n78 | | SIM | 1 x Mini SIM (2FF) and eSIM with up to 7 profiles | | Ethernet | 1 x RJ45, 10/100/1000/2500Mbps | | I/O | 2 configurable digital I/Os on the power connector | | Antennas | 4 x SMA mobile | | USB | Micro USB (virtual network interface) | | CPU and memory | Qualcomm ARM Cortex-A7 1.5GHz, 512MB RAM, 512MB flash | | Operating system | RutOS (OpenWrt based) | | Power | 9-30VDC via 4-pin industrial socket, passive PoE | | Power consumption | Idle under 1.5W, max under 5W | | Housing | Aluminum, IP30 | | Operating environment | -40°C to 75°C, 10%-90% humidity non-condensing | | Dimensions and weight | 100 x 30 x 93.4 mm, 241 g | | Approvals | CE, UKCA, RCM, CB, EAC, E-mark |
In the box- TRB501 gateway
- 9W power supply
- 4 x 5G mobile SMA antennas
- 0.8 m Micro USB cable
- 1.5 m Ethernet cable
- SIM adapter kit
- Quick start guide
|
