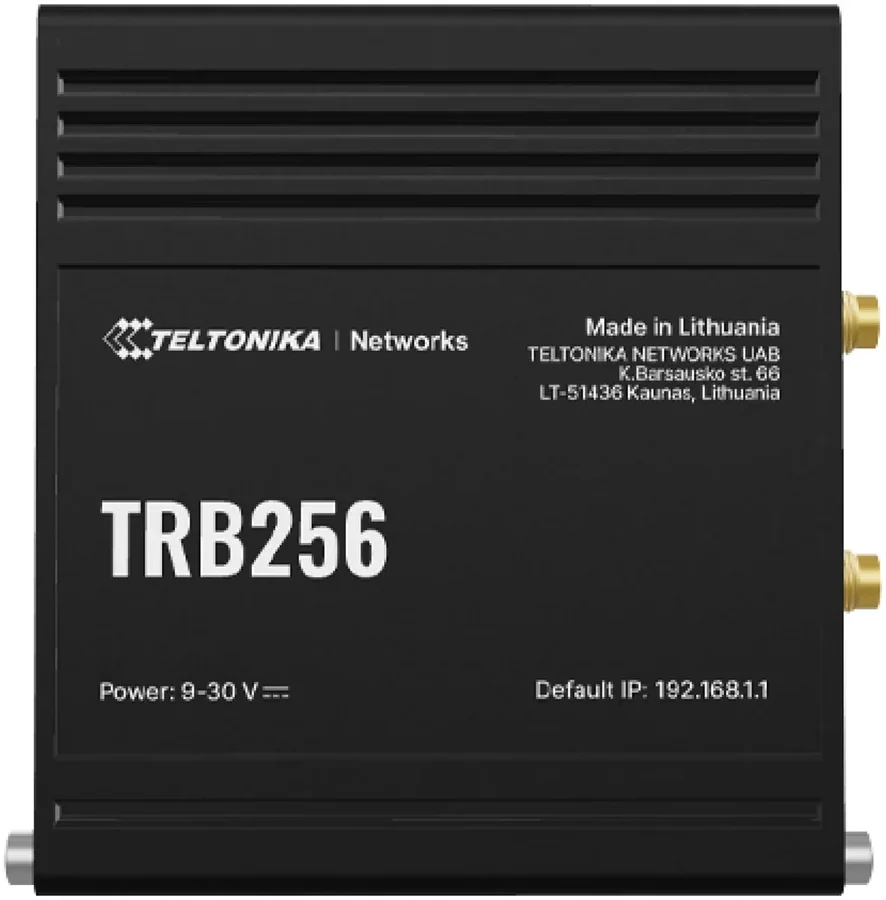

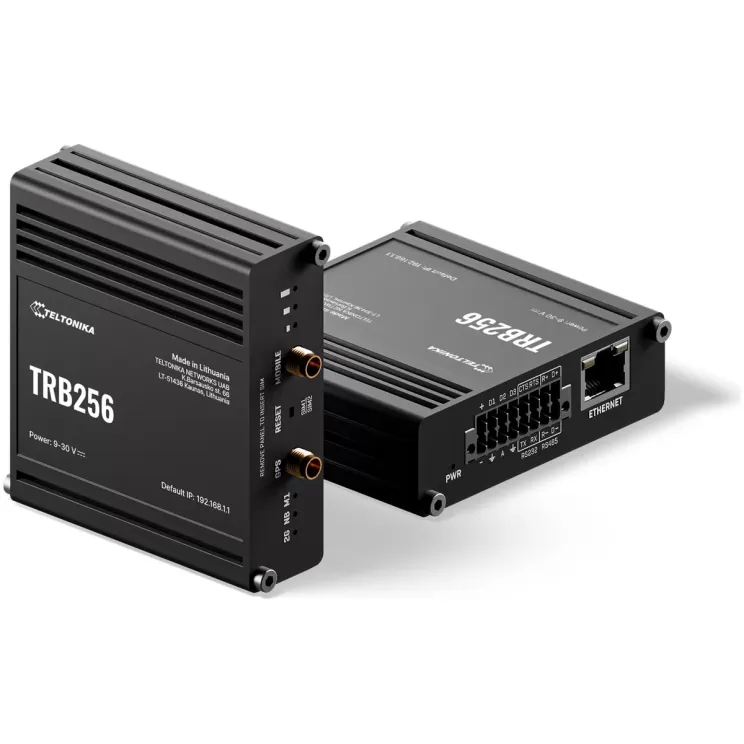

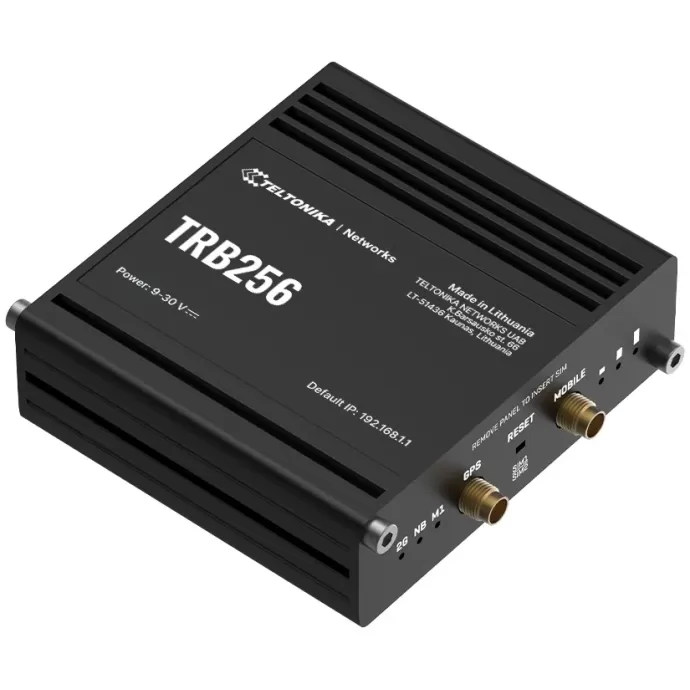

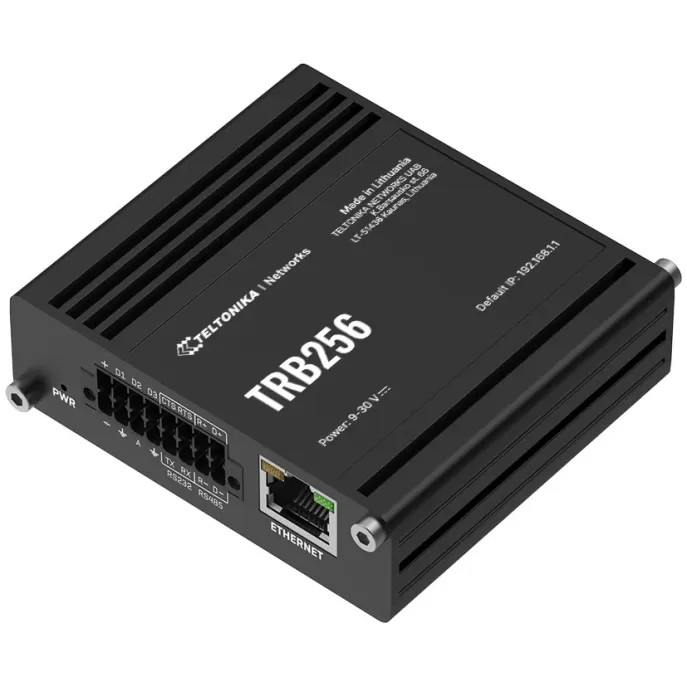

| Revew | Teltonika TRB256 LTE Cat M1/NB-IoT Industrial Cellular IoT GatewayThe Teltonika TRB256 is an industrial cellular gateway for low-power IoT networks, LTE Cat M1 and NB-IoT, including support for 450MHz bands. It suits devices that send small amounts of data, such as meters, sensors and field controllers, and combines an Ethernet port, RS232 and RS485 interfaces, 3 digital inputs, an analog input and 3 digital outputs. Two SIM slots with automatic switching keep the connection running, and a GPS receiver provides positioning and geofencing (not simultaneously with the cellular connection). The gateway runs RutOS with VPN, a firewall and protocols such as Modbus, MQTT, OPC UA, BACnet, DNP3 and DLMS/COSEM, in an IP30 aluminium housing that operates from -40°C to 75°C.
Key features- LTE Cat M1 and NB-IoT - Cat M1 up to 588kbps download and 1119kbps upload, NB2 up to 127/158.5kbps and NB1 up to 32/70kbps, including 450MHz bands (B31, B72 and B73).
- Dual SIM - Two Mini SIM slots with automatic switching on weak signal, data or SMS limit, roaming, no network or data connection failure.

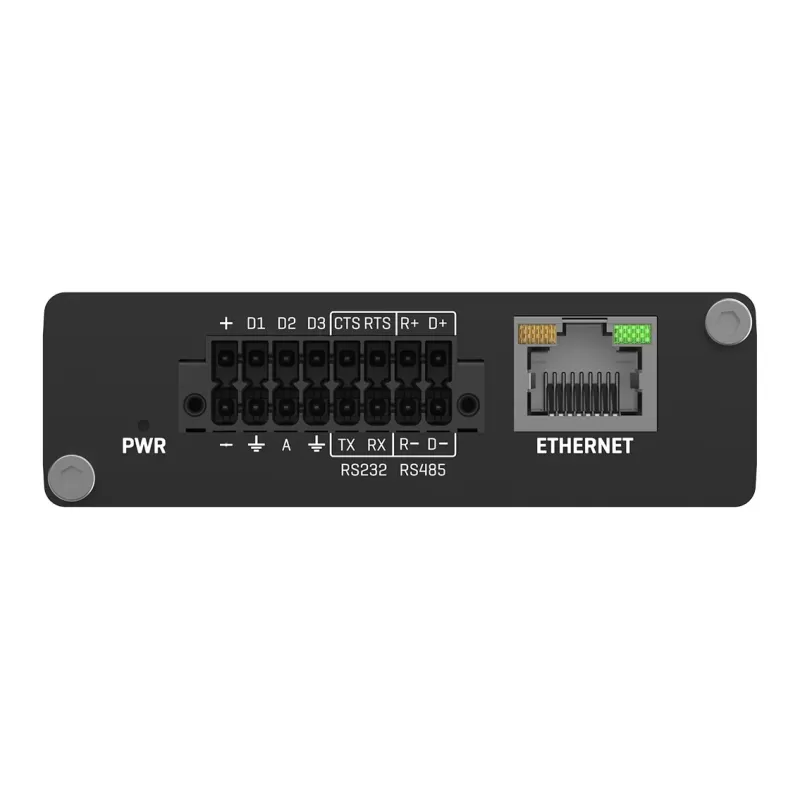

- RS232, RS485 and Ethernet - Serial interfaces on a 16-pin terminal block with Console, Serial over IP, Modem and Modbus Gateway modes, plus a 10/100Mbps RJ45 port.
- Inputs and outputs for control - 3 digital inputs, a 0-30V analog input and 3 open collector outputs up to 30V and 300mA, with I/O Juggler for actions and SMS, email and RMS alerts.
- GPS positioning - GPS with geofencing, NMEA and NTRIP support. GNSS and cellular connectivity do not operate simultaneously.
- Security, VPN and management - OpenVPN, WireGuard, IPsec, GRE, PPTP, L2TP, DMVPN, SSTP, ZeroTier and Tinc, a firewall with DDoS prevention, managed via WebUI, SSH, SNMP, TR-069, JSON-RPC and Teltonika RMS.
Specifications| Manufacturer | Teltonika | | Model | TRB256 | | Manufacturer part number | TRB256000400 (Global, standard package) | | Mobile | LTE Cat M1 up to 588/1119kbps, NB2 up to 127/158.5kbps, NB1 up to 32/70kbps, 3GPP Release 14 | | LTE bands | Cat M1 and NB2: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B28, B31, B66, B72, B73, B85; Cat M1 only: B26, B27 | | SIM | 2 x Mini SIM (2FF), 1.8V/3V, double stacked tray | | Ethernet | 1 x RJ45, 10/100Mbps | | Serial | RS232 (TX, RX, RTS, CTS), RS485 (D+, D-, R+, R-, 2 or 4 wire) | | I/O | 3 digital inputs, 1 analog input 0-30V, 3 open collector outputs up to 30V/300mA | | GNSS | GPS (GLONASS, BeiDou, Galileo and QZSS under development), not simultaneous with cellular | | Antennas | 1 x SMA for LTE, 1 x SMA for GNSS | | CPU and memory | MediaTek 580MHz MIPS 24KEc, 128MB RAM, 16MB Flash | | Operating system | RutOS (OpenWrt based) | | Protocols | Modbus TCP/RTU, MQTT, OPC UA, BACnet, DNP3, DLMS/COSEM | | Power | 9-30V DC via 16-pin terminal block, reverse polarity and ±1kV surge protection | | Power consumption | Idle 2W, max 3.5W | | Housing | Aluminium, IP30 | | Operating environment | -40°C to 75°C, 10%-90% humidity non-condensing | | Dimensions and weight | 83 x 25 x 74.2 mm, 165 g | | Mounting | DIN rail, wall or flat surface (kit required) |
In the box- TRB256 gateway
- 16-pin terminal block
- Hex key
- Quick start guide
|
