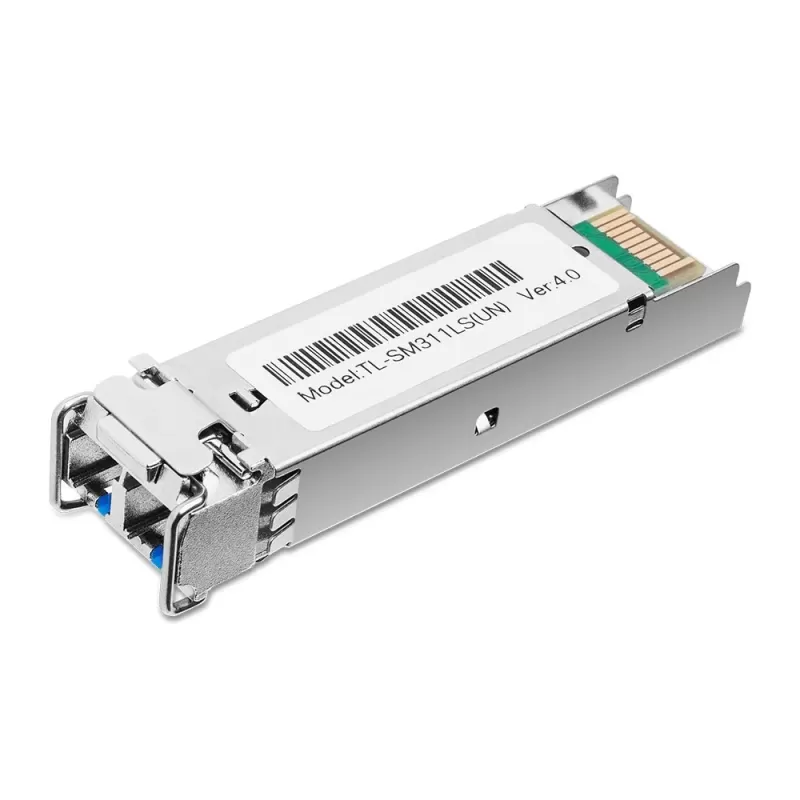

SFP module TP-Link TL-SM311LS MiniGBIC (8-PACK) TL-SM311LS MiniGBIC 8-PACK

An SFP module (supplied in a pack of 8) for fast, reliable data transmission over distances of up to 20 km, compatible with all TP-Link equipment featuring an SFP port, including switches from the JetStream series and the MC220L media converter. A perfect solution for linking branch offices or expanding campus networks – simple, stable, and easy to install. This module supports DDM and Hot Swappable connectivity, and is built to work with single-mode 9/125μm optical fiber at a transfer rate of 1.25Gbps. Ideal for use together with the MC210CS for long-range optical connectivity.

• Transmission range of up to 20 km – ideal for connecting remote sites via single-mode fiber
• Full compatibility with TP-Link equipment – including switches from the JetStream series and the MC220L media converter
• High transfer rate of 1.25Gbps – a fast, stable connection for demanding applications
• DDM support – real-time monitoring of module and connection performance
• Bidirectional LC connector – a standard, common interface for fiber networks
• Suited for use with the MC210CS – a reliable single-mode link for long distances
• Hot Swappable support – can be replaced without powering down the device
• 1310nm wavelength – for optimal operation over single-mode optical fiber

• Standards and protocols: IEEE 802.3z
• Wavelength: 1310 nm
• Data transfer rate: 1.25Gbps
• Fiber type: single-mode fiber (9/125μm)
• Maximum distance: 20 km
• Connector interface: LC Duplex
• Operating voltage: 3.3V
• Additional features: DDM, Hot Swappable, SFP MSA compatibility
• Dimensions: 2.2×0.6×0.5 in. (55.4×14.6×12.9 mm)
• Certifications: FCC, CE
• Operating temp.: 0°C–70°C
• Storage temp.: -40°C–85°C
• Humidity: 10%–90% (operating), 5%–90% (storage) – non-condensing
• Warranty: 3 years

Package includes:

• 8x TL-SM311LS SFP modules
• Installation guide
