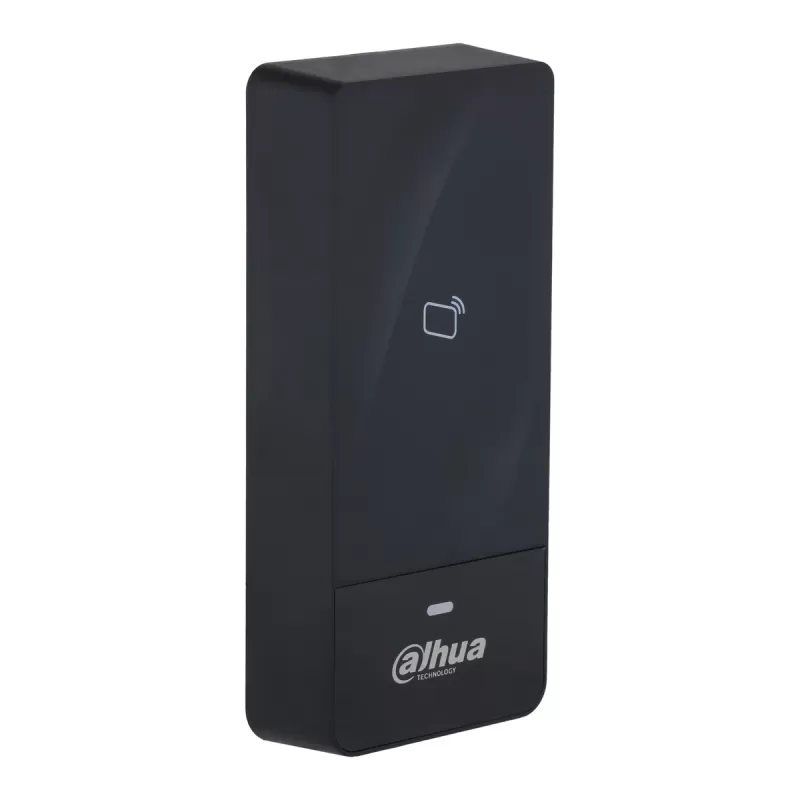

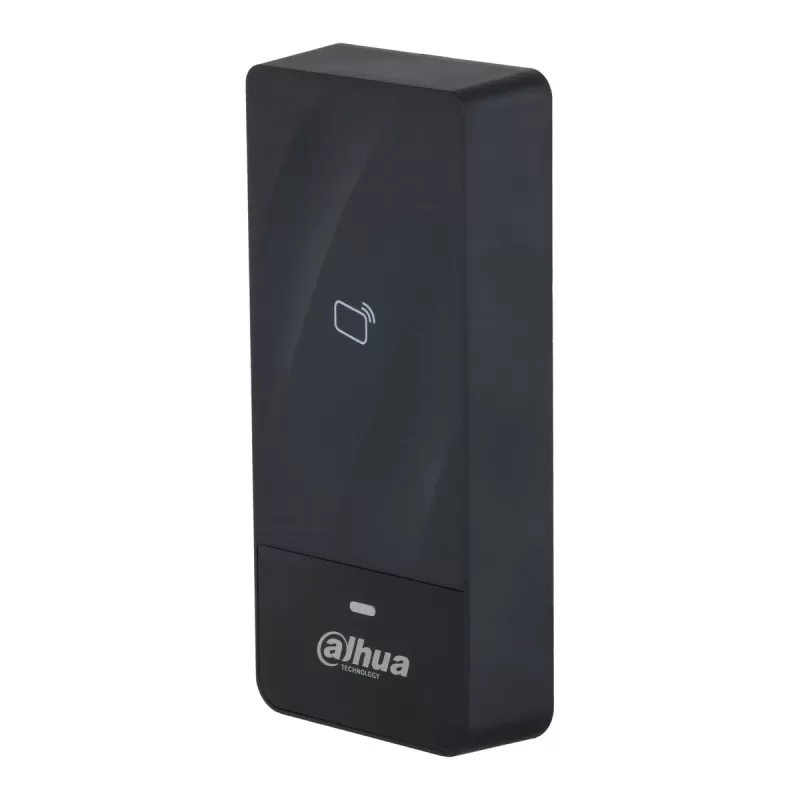

DAHUA ASR1200E DHI-ASR1200E Color:black

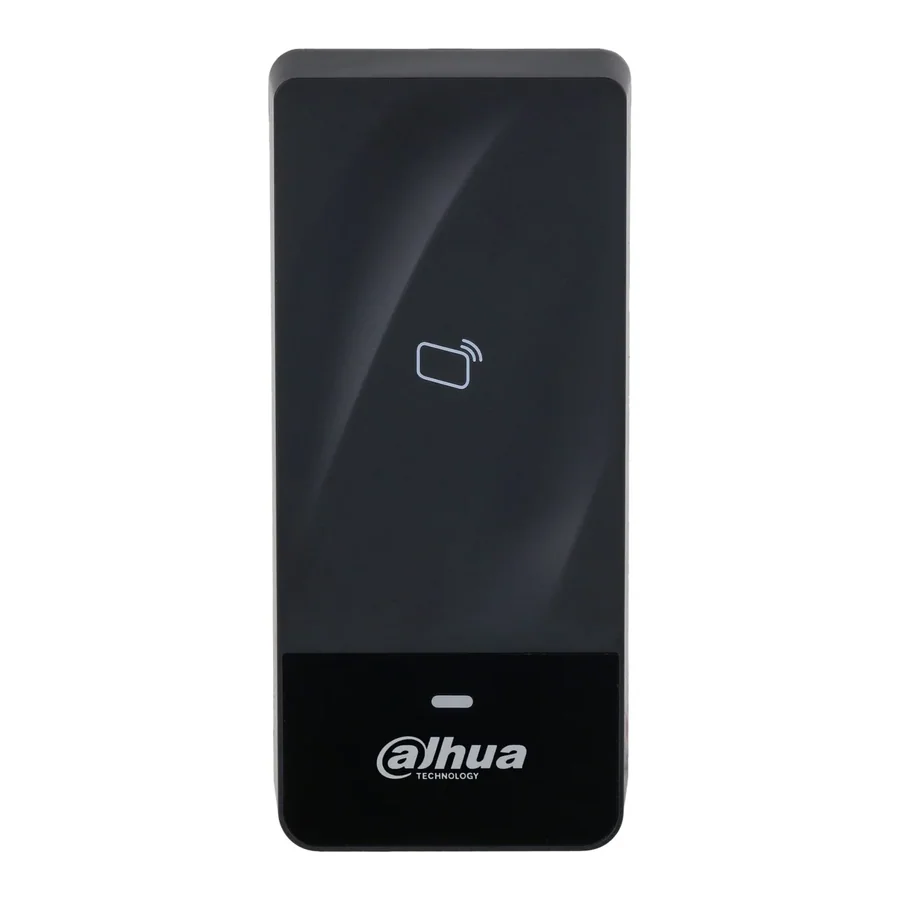

DAHUA ASR1200E Waterproof IC Card Access Reader

The Dahua ASR1200E is a compact card reader for access control systems. It reads Mifare IC cards contactlessly at 13.56MHz from up to 5 cm away and passes the card data to the access controller for verification and door release.

The reader connects to the controller over RS-485 or Wiegand34 and supports the OSDP protocol. Its ABS housing is IP66 rated, so it suits wall mounting next to indoor doors as well as at outdoor entrances.

Key features

• Contactless Mifare reading - Reads IC cards at 13.56MHz from 0 to 5 cm with a 0.1 s response time.
• RS-485, Wiegand and OSDP - Connects to access controllers through an RS-485 port or a Wiegand34 port and supports the OSDP protocol.
• IP66 waterproof - A sealed ABS housing for indoor and outdoor installation, operating from -30°C to 65°C.
• Buzzer and indicator light - Audible and visual feedback to the user on every card swipe.
• Electrical protection and watchdog - Protection against overcurrent, overvoltage, lightning, short circuits and static. A watchdog detects abnormal operation and restarts the device to keep it running.

Specifications
