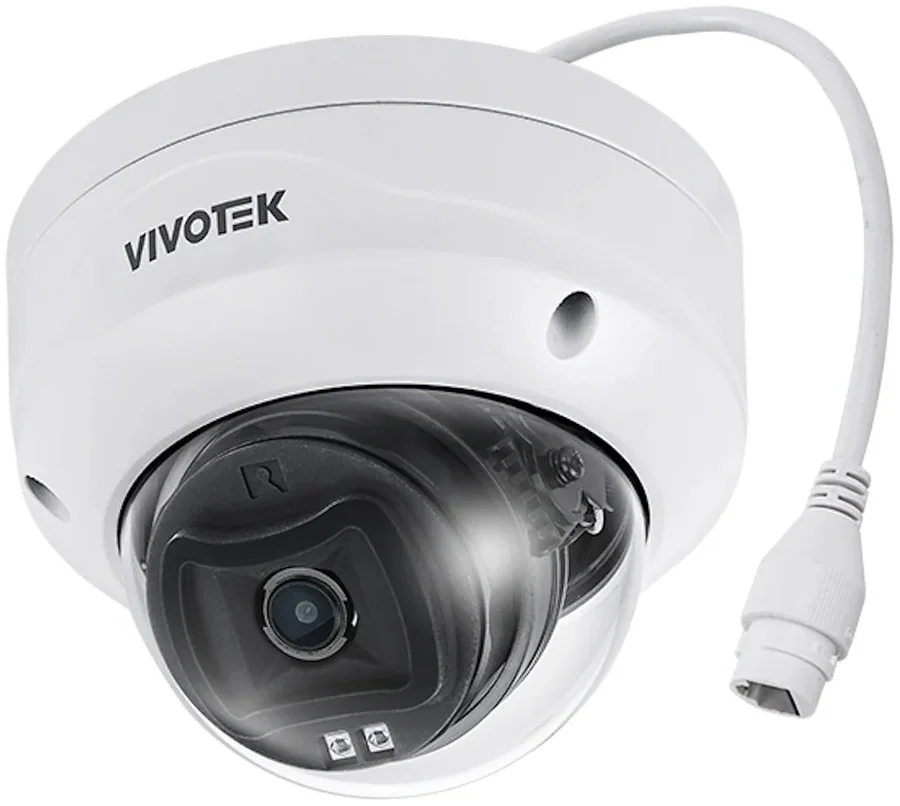

| Revew | VIVOTEK FD9383-HV 5MP 2.8mm Outdoor Fixed Dome IP CameraThe VIVOTEK FD9383-HV is an outdoor fixed dome network camera with a 5MP sensor and a fixed 2.8 mm lens that covers a wide 135° diagonal field of view. WDR Pro with a 120dB dynamic range and smart IR up to 30 m keep the image clear by day, at night and against strong backlight. A built-in deep learning accelerator detects people and vehicles and runs Smart VCA rules, while Secure Boot and signed firmware protect the device. The IP66/IK10 housing withstands water and vandalism, a single PoE cable carries power and data, and recording can go to a microSD card of up to 1TB or to a NAS.
Key features- 5MP sensor with WDR Pro - A 1/2.8 inch sensor at 2560x1920 with a 120dB dynamic range gives a balanced image at bright entrances and in deep shadow.
- Night vision up to 30 m - Two IR LEDs with Smart IR prevent overexposure of nearby objects and deliver a clear image in total darkness.
- AI video analytics - People and vehicle detection, attribute extraction such as clothing color and vehicle type, and Smart VCA: intrusion, loitering, line crossing and face detection.
- Rugged outdoor housing - IP66 against water and dust and IK10 against vandalism, with a working temperature of -30°C to 55°C.
- Built-in cybersecurity - Secure Boot, signed firmware, HTTPS, 802.1X and Trend Micro IoT Security protect against intrusion attempts.
- Single-cable installation - 802.3af PoE carries power and data over one network cable, and local recording is supported to microSD cards of up to 1TB or to a NAS.
Specifications| Manufacturer | VIVOTEK | | Model | FD9383-HV (2.8mm) | | Type | Outdoor fixed dome network camera | | Image sensor | 1/2.8" Progressive CMOS | | Resolution | 2560x1920 (5MP) | | Lens | Fixed 2.8 mm, F2.0 | | Field of view | 103.4° horizontal, 75.3° vertical, 135.2° diagonal | | WDR | WDR Pro, 120dB | | IR illumination | Up to 30 m, Smart IR, 2 LEDs | | Minimum illumination | 0.055 lux color, 0.005 lux B/W, 0 lux with IR | | Frame rate | 30fps at 2560x1920, 60fps at 1920x1080 | | Compression | H.265, H.264, MJPEG, Smart Stream III | | Video analytics | People and vehicle detection, Smart Motion Detection, Smart VCA | | Storage | microSD/SDHC/SDXC up to 1TB, NAS recording | | Network | RJ-45 10/100Mbps, ONVIF Profile G/S/T | | Power input | PoE IEEE 802.3af Class 3 | | Power consumption | Max. 8.5W with IR, 6W without IR | | Protection | IP66, IK10 | | Working temperature | -30°C to 55°C (IR off), -30°C to 50°C (IR on) | | Dimensions and weight | Ø117.2 x 89.6 mm, 550 g |
In the box- FD9383-HV camera
- Quick installation guide
- Alignment sticker
- Screw pack
- Cable gland
|
