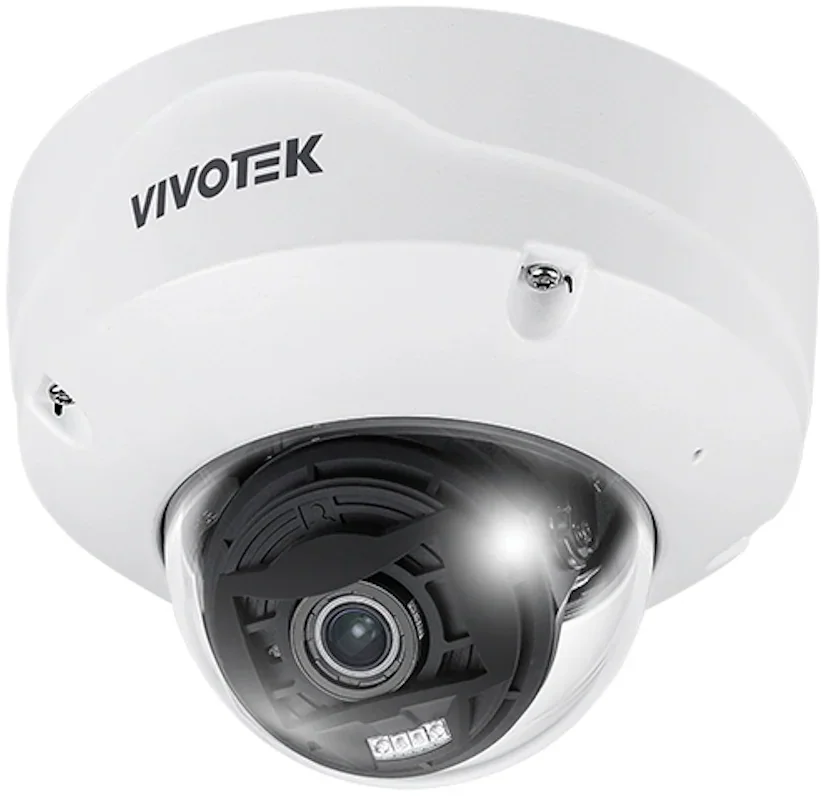

| Revew | VIVOTEK FD9387-EHTV-V3 5MP 2.7-13.5mm Motorized Outdoor Dome IP CameraThe VIVOTEK FD9387-EHTV-V3 is a 5MP outdoor fixed dome with a 2.7-13.5 mm motorized varifocal lens, P-iris and remote zoom and focus, so the field of view can be adjusted without climbing up to the camera. Smart IR III up to 50 m and 120dB WDR Pro deliver a clear image at night and against strong light. The camera has a deep learning accelerator for people and vehicle detection and Smart VCA rules, EIS with a gyro sensor, two-way audio, digital input and output, and Trend Micro IoT Security. Its IP66/IP67, IP6K9K, IK10+ and NEMA 4X housing works from -40°C to 60°C and can be powered by PoE or DC 12V.
Key features- Motorized lens with remote zoom - 2.7-13.5 mm with P-iris, remote zoom and focus, and a horizontal field of view of 100.1° to 29.9°.
- IR up to 50 m - Four IR LEDs with VCA-based Smart IR III prevent overexposure and give a clear image in the dark.
- AI video analytics - People and vehicle detection, attribute extraction and Smart VCA: intrusion, loitering, line crossing, unattended or missing object, face and crowd detection.
- Stable, sharp image - 120dB WDR Pro, 3DNR and EIS with a built-in gyro sensor to reduce vibration, at 30fps in full resolution.
- Housing for extreme conditions - IP66/IP67, IP6K9K, IK10+ and NEMA 4X, working temperature of -40°C to 60°C and humidity up to 98%.
- Audio, I/O and flexible power - Built-in microphone plus external input and output, DI and DO, and 802.3af PoE or DC 12V power with redundancy.
Specifications| Manufacturer | VIVOTEK | | Model | FD9387-EHTV-V3 (2.7-13.5mm) | | Type | Outdoor fixed dome network camera | | Image sensor | 1/2.8" Progressive CMOS | | Resolution | 2560x1920 (5MP) | | Lens | Motorized varifocal 2.7-13.5 mm, F1.83-F3.32, P-iris | | Horizontal field of view | 100.1° to 29.9° | | WDR | WDR Pro, 120dB | | IR illumination | Up to 50 m, Smart IR III, 4 LEDs | | Minimum illumination | 0.04 lux color, <0.005 lux B/W, 0 lux with IR | | Frame rate | 30fps at 2560x1920, 60fps at 1920x1080 | | Compression | H.265, H.264, MJPEG, Smart Stream III | | Video analytics | People and vehicle detection, Smart Motion Detection, Smart VCA | | Audio | Two-way, built-in microphone, external input and output | | I/O | 1 DI, 1 DO | | Storage | microSD/SDHC/SDXC up to 1TB, NAS recording | | Network | RJ-45 10/100Mbps, ONVIF Profile G/S/T | | Power | PoE IEEE 802.3af Class 0, DC 12V, AC 24V with AO-011 module, max. 12.95W | | Protection | IP66/IP67, IP6K9K, IK10+, NEMA 4X, -40°C to 60°C | | Dimensions and weight | Ø173.6 x 122.6 mm, 1.3 kg |
In the box- FD9387-EHTV-V3 camera
- Quick installation guide and product labels
- Alignment sticker
- L-shaped wrench
- Screw pack
- Waterproof accessory pack
- Sunshield
- Conduit bracket
- I/O cable
|
