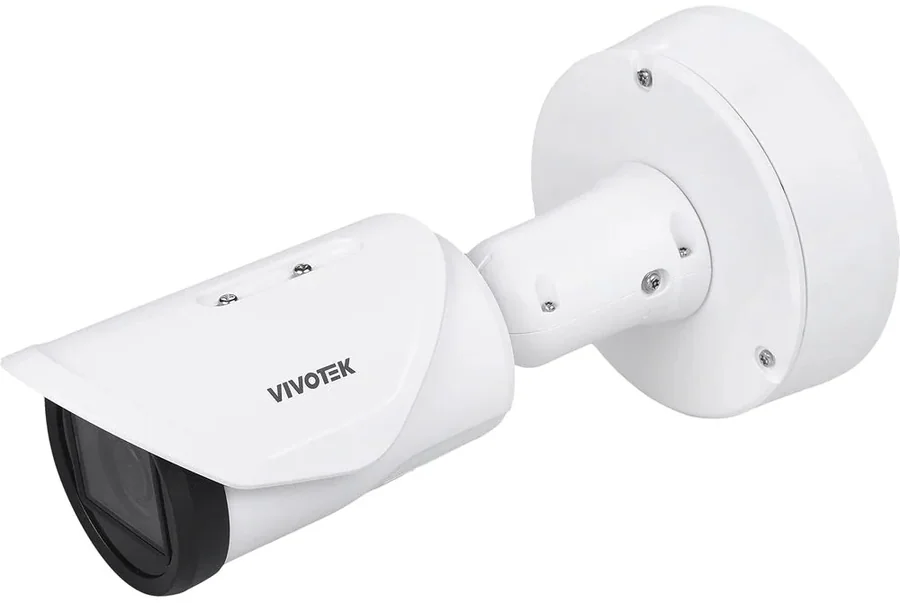

| Revew | VIVOTEK IB9387-EHTV-V3 5MP 2.7-13.5mm Outdoor Bullet Network CameraThe VIVOTEK IB9387-EHTV-V3 is an outdoor bullet network camera from the manufacturer's V-Series, with a 1/2.8" sensor that records 5MP (2560x1920) at 30fps. This version has a 2.7-13.5 mm motorized vari-focal lens with remote zoom and focus, covering a horizontal field of view from 100.1° wide to 29.9° tele. Smart IR III illumination reaches up to 50 m, and WDR Pro with a 120dB dynamic range keeps the picture clear against strong light. A built-in deep learning accelerator runs people and vehicle detection and Smart VCA rules, the camera offers two-way audio and a digital input and output, and the metal housing meets IP66/IP67, IK10 and NEMA 4X and works down to -40°C.
Key features- 5MP at 30fps with WDR Pro - The 1/2.8" progressive CMOS sensor records 2560x1920 at 30fps, or 1920x1080 at 60fps with WDR Pro off. WDR Pro covers 120dB with a 70dB signal-to-noise ratio.
- 2.7-13.5 mm motorized lens - Remote zoom and focus with P-iris and a horizontal field of view from 100.1° to 29.9°. Under EN 62676-4, detection reaches up to 196.6 m and identification up to 19.6 m.
- Night vision up to 50 m - Four IR LEDs with VCA-based Smart IR III that prevents overexposure of close objects. Sensitivity of 0.04 lux in color and 0 lux with IR on.
- AI video analytics - People and vehicle detection with a time filter and Smart VCA rules: intrusion, loitering, line crossing, unattended or missing object, face detection and crowd detection. The camera also extracts attributes such as clothing color and vehicle type for fast searches.
- Cybersecurity - Secure boot, signed firmware, CSRF protection, audit log, TLS 1.2/1.3 and Trend Micro IoT Security with a 3-year free trial.

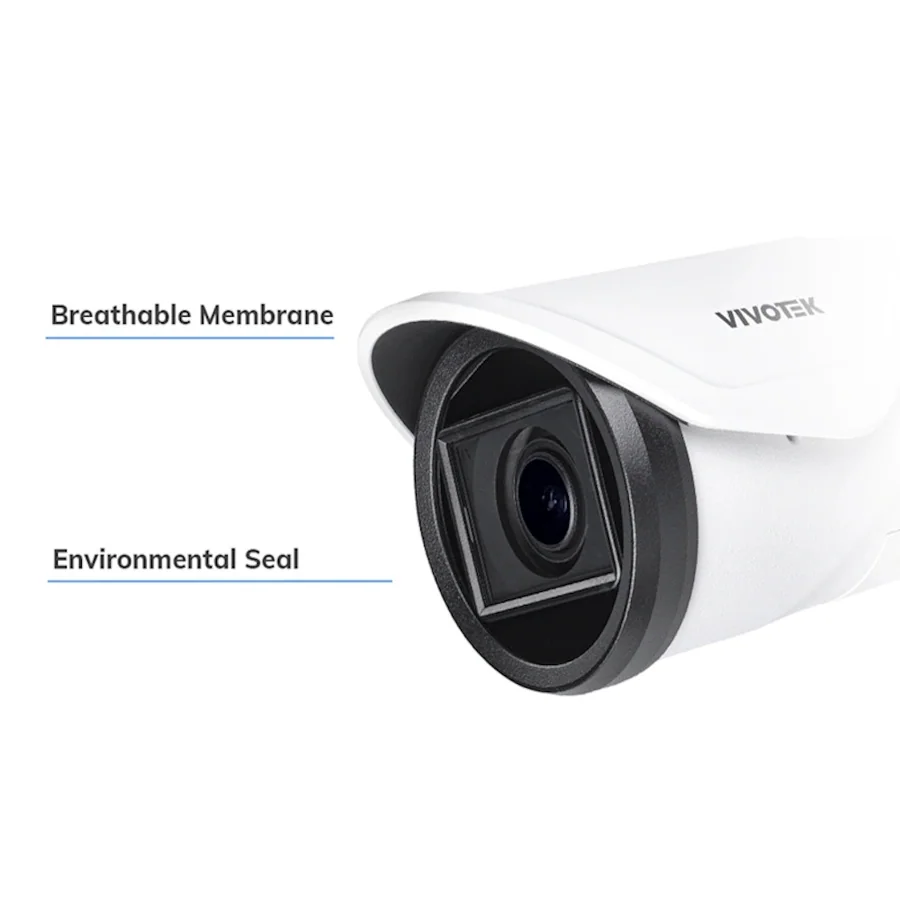

- Built for outdoor use - An IP66/IP67, IK10 and NEMA 4X rated housing that works from -40°C to 60°C (up to 50°C with IR on) and at up to 98% humidity.
Specifications| Manufacturer | VIVOTEK | | Model | IB9387-EHTV-V3 (2.7-13.5mm) | | Type | Outdoor bullet camera | | Image sensor | 1/2.8" Progressive CMOS | | Resolution and frame rate | 2560x1920 (5MP) at 30fps, 1920x1080 at 60fps | | Lens | Motorized vari-focal 2.7-13.5 mm, F1.83-F3.32, P-iris, remote zoom and focus | | Field of view | 100.1°-29.9° horizontal, 71.8°-22.4° vertical, 135.2°-37.4° diagonal | | IR illumination | 4 LEDs, up to 50 m, Smart IR III | | Minimum illumination | 0.04 lux in color, below 0.005 lux in B/W, 0 lux with IR | | Image enhancement | WDR Pro 120dB, S/N 70dB, 3DNR, EIS, Defog, BLC, HLC | | Compression | H.265, H.264, MJPEG, up to 3 streams, Smart Stream III | | Video analytics | People and vehicle detection, Smart VCA, attribute extraction | | Audio | Two-way, external mic input and line output, G.711/G.726/AAC-LC | | Inputs and outputs | DI x1, DO x1, Micro USB | | Storage | microSD/SDHC/SDXC up to 1TB, recording to NAS | | Network | RJ-45 10/100Mbps, ONVIF Profile G/S/T, up to 10 viewers | | Power input and consumption | PoE 802.3af Class 0, DC 12V, AC 24V (with AO-010 module), max. 12.95W | | Protection | IP66/IP67, IK10, NEMA 4X | | Operating temperature | -40°C to 60°C (IR off), -40°C to 50°C (IR on) | | Dimensions and weight | Ø153 x 285.7 mm, 2.09 kg |
In the box- VIVOTEK IB9387-EHTV-V3 camera
- Sunshield
- Adapting plate
- Conduit bracket
- I/O cable
- L-shaped wrench
- Screw pack
- Waterproof accessory pack
- Alignment sticker and product labels
- Quick installation guide
|
