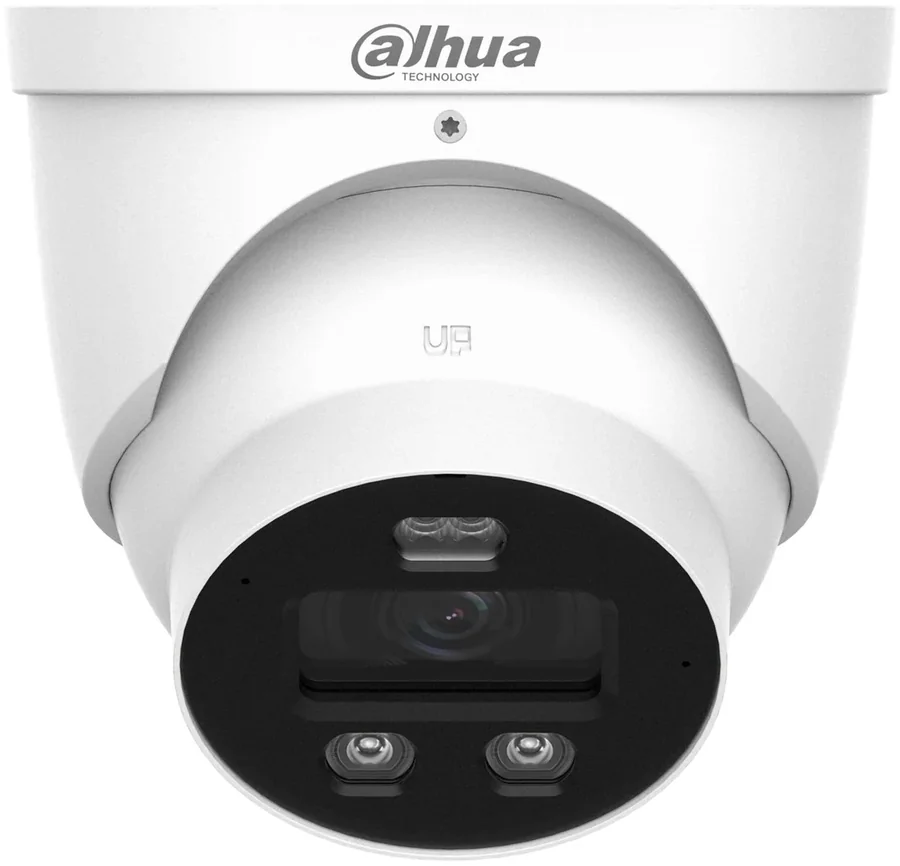

| Revew | DAHUA IPC-HDW3649H-AS-PV-PRO 6MP 2.8mm Eyeball IP CameraThe DAHUA IPC-HDW3649H-AS-PV-PRO is a WizSense 3 TiOC PRO eyeball network camera with WizColor technology. A large 1/1.8" CMOS sensor, a 2.8 mm F1.0 lens and AI-ISP deliver a sharp color image at 6MP (3288x1850) even at night, with 0.0002 lux color sensitivity. Combined IR and warm light illuminators reach up to 30 m in Smart Dual Light mode, and on intrusion the camera triggers red and blue lights and a siren. Xinghan AI models improve human and vehicle detection and reduce false alarms, while dual built-in mics and a speaker enable two-way talk. It is powered by PoE or 12 VDC with an IP67 metal housing, for homes, shops, offices and driveways.
Key features- WizColor at night - A 1/1.8" sensor, F1.0 aperture and AI-ISP produce a detailed color image in very low light, and 130 dB true WDR balances bright and dark areas.
- Smart Dual Light - Two combined IR and warm light illuminators reach up to 30 m. In smart mode the warm light turns on only when a person or vehicle is detected, so the event is recorded in full color.
- Active deterrence and audio - Red and blue lights and a siren trigger when a perimeter rule is violated, and dual built-in mics and a speaker let you warn an intruder or talk to visitors. One-tap disarming in the app.
- Xinghan AI - Dahua large-scale vision models extend detection range and cut false alarms for tripwire and intrusion with human and vehicle classification, together with stay and loitering detection, face detection, SMD 4.0 and AcuPick.
- Compression and storage - Super AI Coding (H.265/H.264) saves bandwidth and storage, with three streams, Micro SD up to 512 GB, ONVIF and PoE (802.3af) or 12 VDC power.
Specifications| Manufacturer | Dahua | | Model | IPC-HDW3649H-AS-PV-PRO | | Camera type | Eyeball, fixed lens | | Image sensor | 1/1.8" CMOS | | Resolution | 6MP (3288x1850) up to 25/30 fps | | Lens | 2.8 mm, F1.0 | | Field of view | H 109°, V 59°, D 131° | | Min. illumination | Color 0.0002 lux, B/W 0.0001 lux, 0 lux with illuminator | | Illumination | IR and warm light up to 30 m, Smart Dual Light | | Active deterrence | Red and blue lights, siren | | Analytics | Tripwire, intrusion, stay, loitering, face detection, SMD 4.0, AcuPick, AI SSA, Xinghan AI | | WDR | 130 dB | | Video compression | H.265, H.264, Super AI Coding | | Audio | Dual built-in mics and speaker, 1 in, 1 out | | Alarm | 1 in, 1 out | | Storage | Micro SD up to 512 GB, FTP, SFTP, NAS | | Network | RJ-45 10/100, ONVIF (Profile S/G/T) | | Power | 12 VDC or PoE (802.3af), up to 10 W | | Protection | IP67, metal housing, -40°C to +60°C | | Dimensions and weight | Φ122 x 116.1 mm, 0.8 kg |
|
