DAHUA PFB300C DH-PFB300C Color:white

DAHUA PFB300C Ceiling Mount Bracket

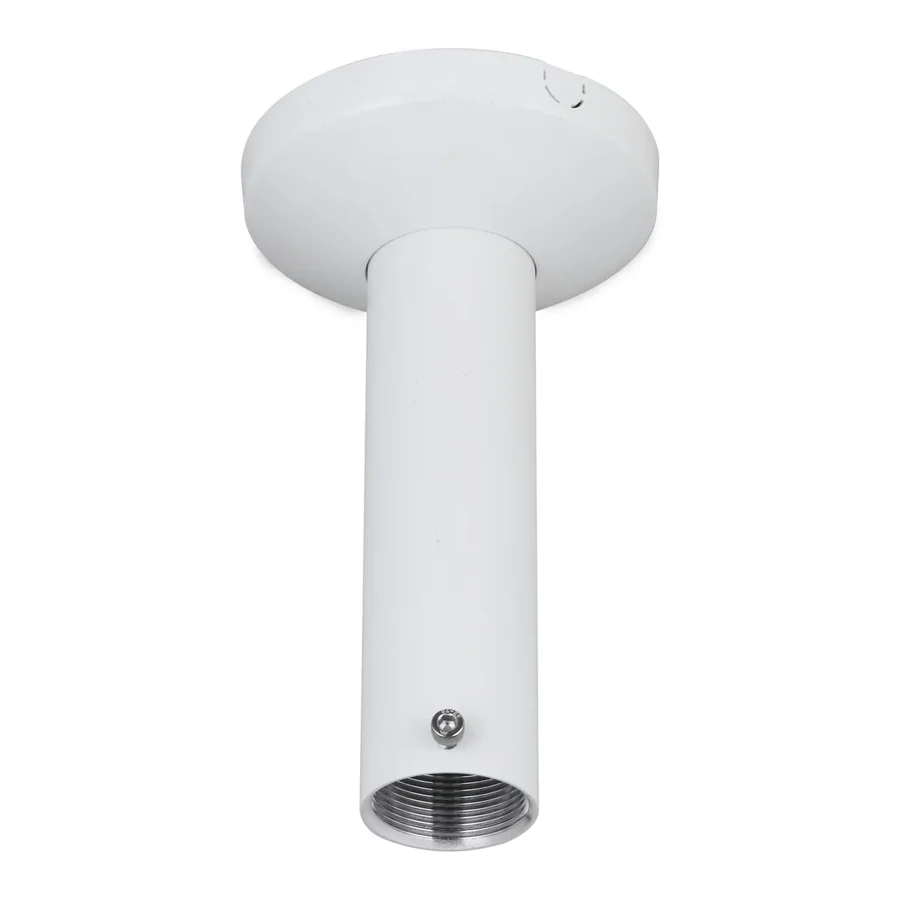

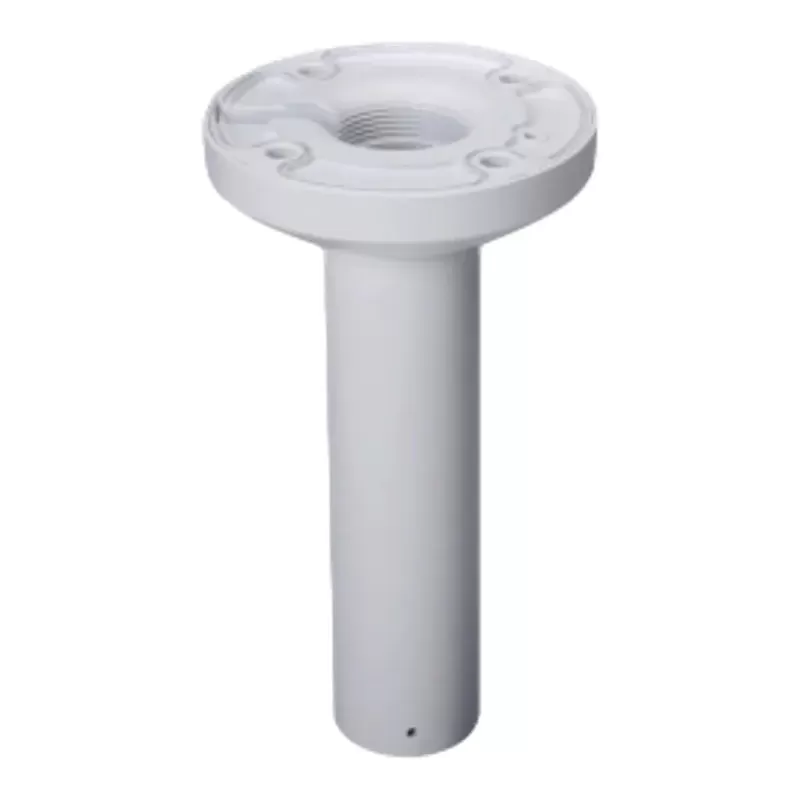

The Dahua PFB300C is a pendant-style ceiling mount bracket for hanging a security camera from the ceiling. It suits PTZ cameras and other compatible models, and the full list is available in Dahua's Camera Accessories Selection guide.

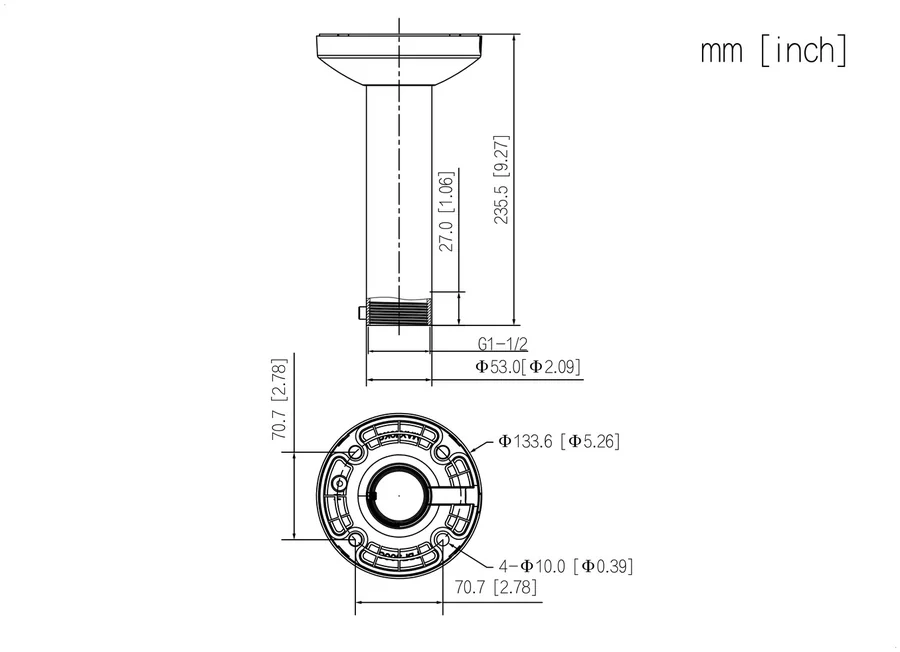

The bracket is made of aluminum alloy and PC with a white finish, with a 133.6 mm base diameter and a length of 235.5 mm. It carries up to 7.0 kg, connects to the camera or adapter with a G1 1/2 thread and works at temperatures from -40°C to +60°C.

Key features

• Ceiling installation - A round base with four 10 mm mounting holes fixes directly to the ceiling, and the camera hangs from the end of the pole.
• Up to 7 kg load - The structure also carries relatively heavy cameras such as PTZ models, according to Dahua's compatibility table.
• Aluminum and PC - The aluminum alloy and PC construction stays rigid while weighing only 0.77 kg.
• Built for the environment - Operates from -40°C to +60°C at relative humidity below 90%, with basic corrosion protection.
• Clean design - White finish and an elegant shape that suits a wide range of cameras.

Specifications

In the box

• PFB300C ceiling mount bracket
