Connections DAHUA PFA121-V2 DH-PFA121-V2 Color:white

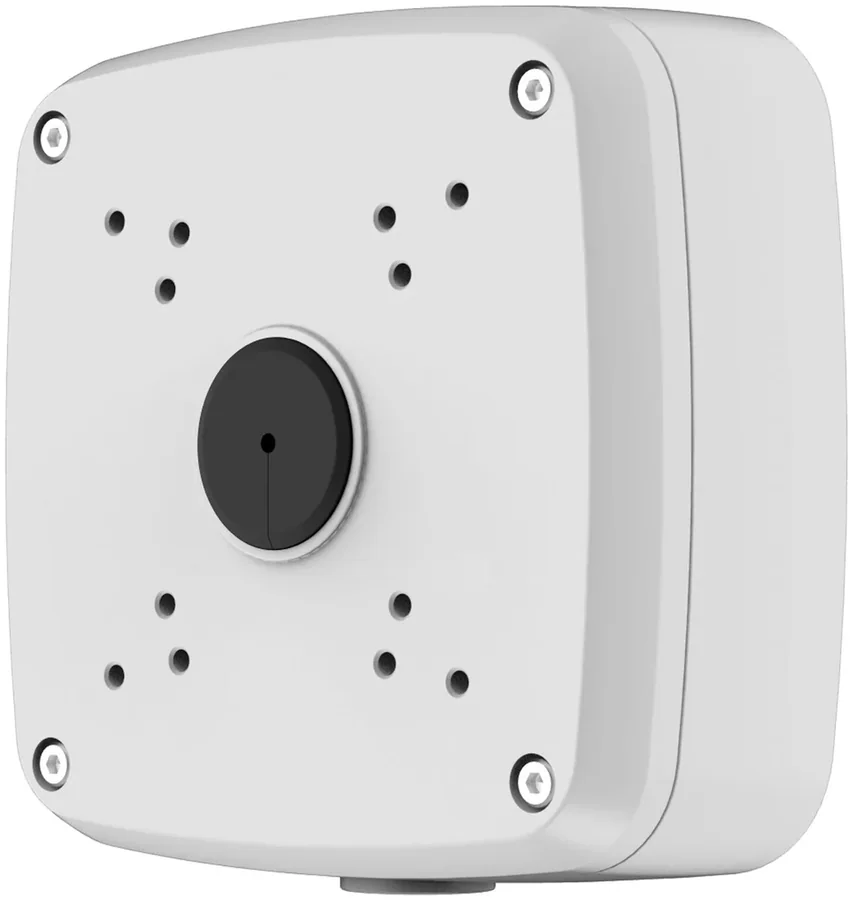

DAHUA PFA121-V2 Water-proof Junction Box

The DAHUA PFA121-V2 is a square junction box that sits between the wall and the camera and hides the cable connections inside: network, power and the camera's connectors. The connections stay protected from water and dust, and the installation looks clean, without cables on the wall.

The box is made of white aluminum alloy, rated IP66, with cable outlets on the bottom and side and a G3/4 thread for conduit. According to Dahua it is matched to particular Dahua cameras (see the Camera Accessories Selection table) and carries up to 3 kg.

Key features

• Hides the connections - All cable connections go inside the box behind the camera, protected from weather and accidental disconnection.
• IP66 protection - Dust tight and protected against water jets, suitable for outdoor installation.
• Bottom and side cable outlets - Cable openings on the bottom and side of the box, and a G3/4 thread for protective conduit.
• Aluminum - Aluminum alloy body, 0.52 kg, 3 kg load.
• Matched to Dahua cameras - Designed to fit the camera base. Dahua lists the matching models in its Camera Accessories Selection table.

Specifications

In the box

• Junction box
• 4x M4x10 screws
• S3.0 hex wrench
• 4x ST6x45 screws
• 4x plastic expansion bolts
• 4x flat gaskets
