DAHUA PFB305W DH-PFB305W Color:white

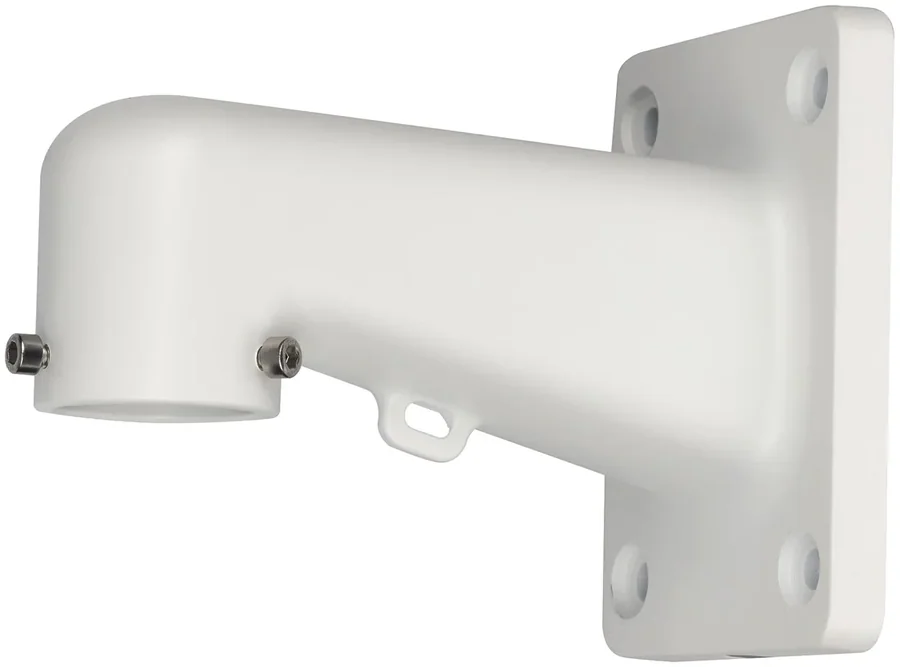

DAHUA PFB305W Wall Mount Bracket

The DAHUA PFB305W is a white aluminum alloy wall mount bracket that holds the camera away from the wall. Dahua ships it with some SD5A series PTZ cameras (for example SD5A432GB-HNR), and the SD5A and SD4E datasheets list it as the camera's wall bracket.

Combined with the PFA150 pole mount or the PFA151 corner mount, the same camera can be installed on a pole or on the corner of a building. Maximum load is 5 kg and the bracket works from -40°C to +60°C.

Key features

• Wall bracket for PTZ cameras - The camera hangs down from the arm, away from the wall, so a motorized camera can turn freely. Dahua includes it with some SD5A cameras.
• Pole and corner mounting too - Dahua datasheets list PFB305W+PFA150 for pole mounting and PFB305W+PFA151 for corner mounting.
• Light, durable aluminum - Aluminum alloy body weighing 0.64 kg, white finish for outdoor use.
• 5 kg load - Suitable for PTZ domes and security cameras weighing up to 5 kg.
• Simple installation - Comes with 3 M6x14 screws and a hex wrench for attaching the camera.

Specifications

In the box

• Wall mount bracket
• 3x M6x14 screws
• S5.0 hex wrench
