Recording system for four cameras PRO Vision NVR5-4100PX 5MP 4CH 2TB PoE NVR5-4100PX

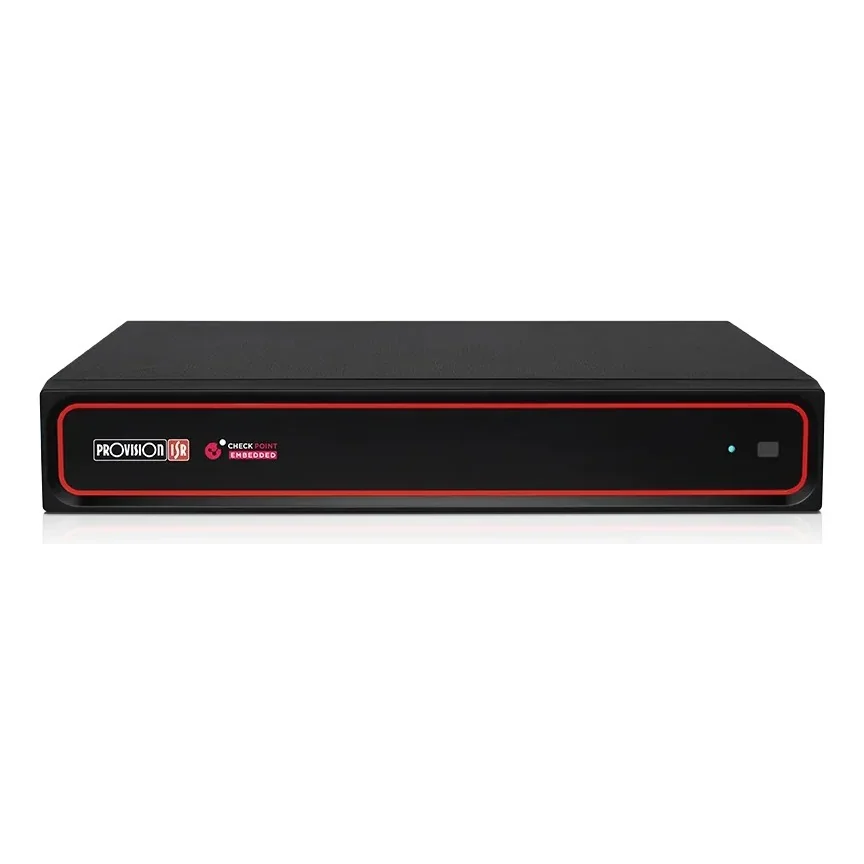

PRO Vision NVR5-4100PX 4-Channel 5MP PoE NVR with 2TB HDD

The Provision-ISR NVR5-4100PX is a network video recorder for four IP cameras with a built-in 4-port PoE switch that delivers both power and data to each camera over a single network cable. It records all four channels in real time at up to 5MP, using H.265 and H.264 compression to save disk space.

The system comes in a compact metal case with a 2TB hard drive and connects to a display via HDMI or VGA at up to 1080P. Remote viewing is available through the Provision Cam2 app, Ossia VMS software and a web browser, making it a good fit for homes, shops and small offices.

Key features

• Built-in PoE switch - Four IEEE 802.3af/at PoE ports with a 50W total budget and up to about 25.5W per port, so each camera needs only one network cable and no separate power supply.
• Real-time 5MP recording - Real-time recording of four 5MP channels at a total of 100 fps (PAL) or 120 fps (NTSC), with H.265S / H.265+ / H.265 / H.264 compression.
• 2TB drive included - Ships with a 2TB hard drive and supports one SATA drive of up to 6TB for longer recording time.
• Remote viewing and control - The Provision Cam2 app for iOS and Android, Ossia VMS for PC and Mac and browser access, with up to 5 users online at the same time.
• Analytics from supported cameras - Supports IP camera analytics including line crossing, sterile area, object counting, license plate recognition (LPR), loitering, camera tampering and smart search.
• CCTV mode for long runs - In CCTV mode, the PoE ports support camera cable runs of up to 200 meters at 10Mbps.

Specifications
