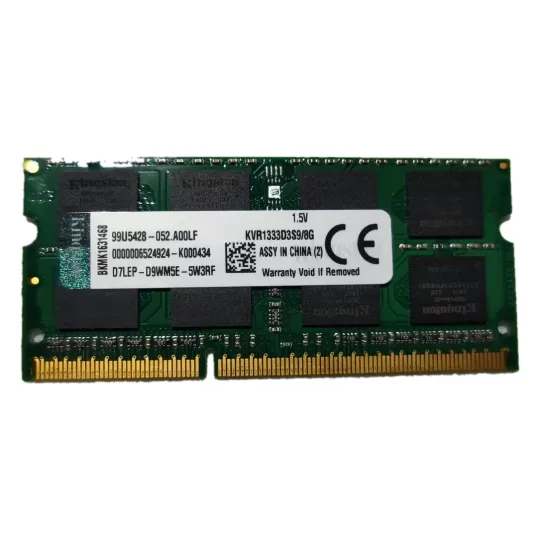

SODIMM memory Kingston KVR1333D3S9/8G 8GB DDR3 SO-DIMM 1333MHz 9 cycles 1.5V Condition:Used

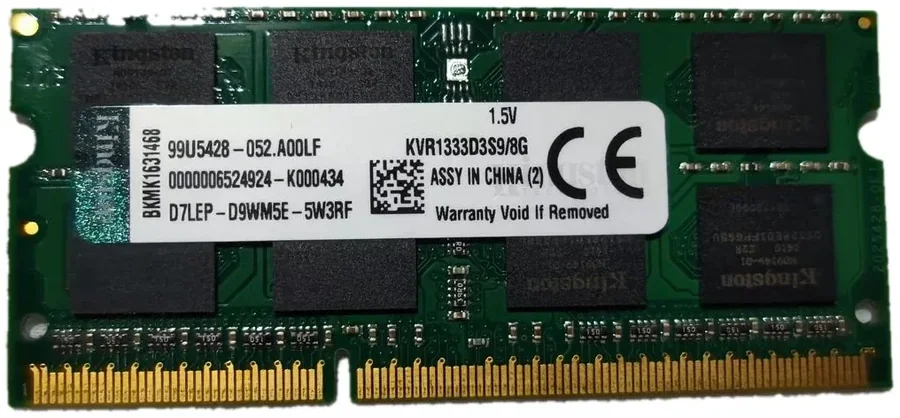

SODIMM Memory Kingston KVR1333D3S9/8G

The Kingston KVR1333D3S9/8G is an 8GB ValueRAM memory module in the 204-pin SO-DIMM format for laptops. It runs at DDR3-1333 (PC3-10600) with 9-9-9 timings at the standard 1.5V, and is built from 16 chips of 512M x 8 on both sides of the module (2Rx8). It is used and has been tested in our lab.

It suits a memory upgrade for a laptop, mini PC or all-in-one with DDR3 SO-DIMM slots, for example going from 4GB to 8GB or building 16GB with two modules, as well as replacing a failed module. Check that your computer supports 1.5V DDR3 and 8GB modules.

According to the Kingston datasheet, the SPD is programmed to JEDEC DDR3-1333 timings, and the module has 8 internal banks, On Die Termination and ZQ calibration, about 1.2W operating power and gold contact fingers. It operates from 0 to 85°C.

Key features

• 8GB in one module - 8GB organized as 1G x 64-bit, built from 16 DRAM chips of 512M x 8-bit on both sides of the module (2Rx8).
• DDR3-1333 with CL9 - 1333 MT/s to the PC3-10600 standard with JEDEC 9-9-9 timings and a programmable CAS latency of 9, 8, 7 or 6.
• JEDEC 1.5V - Standard 1.5V operation (1.425V to 1.575V) for laptops that use DDR3 memory.
• 204-pin SO-DIMM - The SO-DIMM format for laptops and compact systems, 30 mm high, with gold contact fingers.
• Full DDR3 feature set - 8 internal banks, 8-bit prefetch, On Die Termination, ZQ calibration and asynchronous reset, per the Kingston datasheet.
