Motherboard ASRock B850 Pro RS WiFi DDR5 AM5

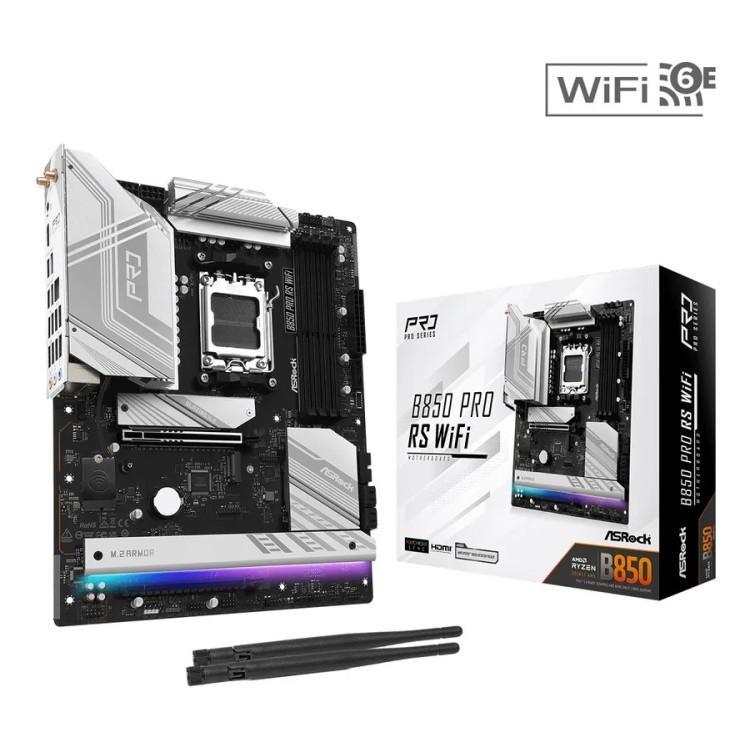

ASRock B850 Pro RS WiFi Motherboard

The ASRock B850 Pro RS WiFi is an ATX motherboard for Socket AM5 built on the AMD B850 chipset. It supports AMD Ryzen 9000, 8000 and 7000 series processors and suits a gaming or work PC at a reasonable price.

The board offers four DDR5 slots for up to 256GB, four M.2 slots with one running PCIe 5.0, four SATA3 ports, a 2.5 Gigabit LAN port and a Wi-Fi 6E module with Bluetooth 5.2.

Key features

• AM5 platform with the B850 chipset - Support for AMD Ryzen 9000, 8000 and 7000 series processors and a PCIe 5.0 x16 slot wired to the processor for the graphics card.
• DDR5 memory up to 256GB - Four DIMM slots in dual-channel mode for ECC and non-ECC DDR5 at speeds up to 8000MHz+ (OC), with XMP and EXPO support.
• Four M.2 slots - One PCIe 5.0 x4 slot, two PCIe 4.0 x4 slots and one PCIe 3.0 x4 slot, with RAID 0, 1 and 10 support for NVMe, plus four SATA3 ports.
• 2.5 Gigabit LAN and Wi-Fi 6E - A Dragon RTL8125BG controller for fast wired networking and a Wi-Fi 6E module with Bluetooth 5.2 and two antennas.
• Two rear USB-C ports - A USB 3.2 Gen2 Type-C port at 10Gb/s and a USB 3.2 Gen1 Type-C port with DisplayPort output, next to an HDMI 2.1 port.
• 7.1 audio and easy upgrades - A Realtek ALC897 codec with Nahimic Audio, a BIOS Flashback button and a front USB-C header at 20Gb/s.

Specifications
